32-1205A1 (212-5) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) 5-SPEED TRANSMISSION Parts Diagram

Lawn Tractor

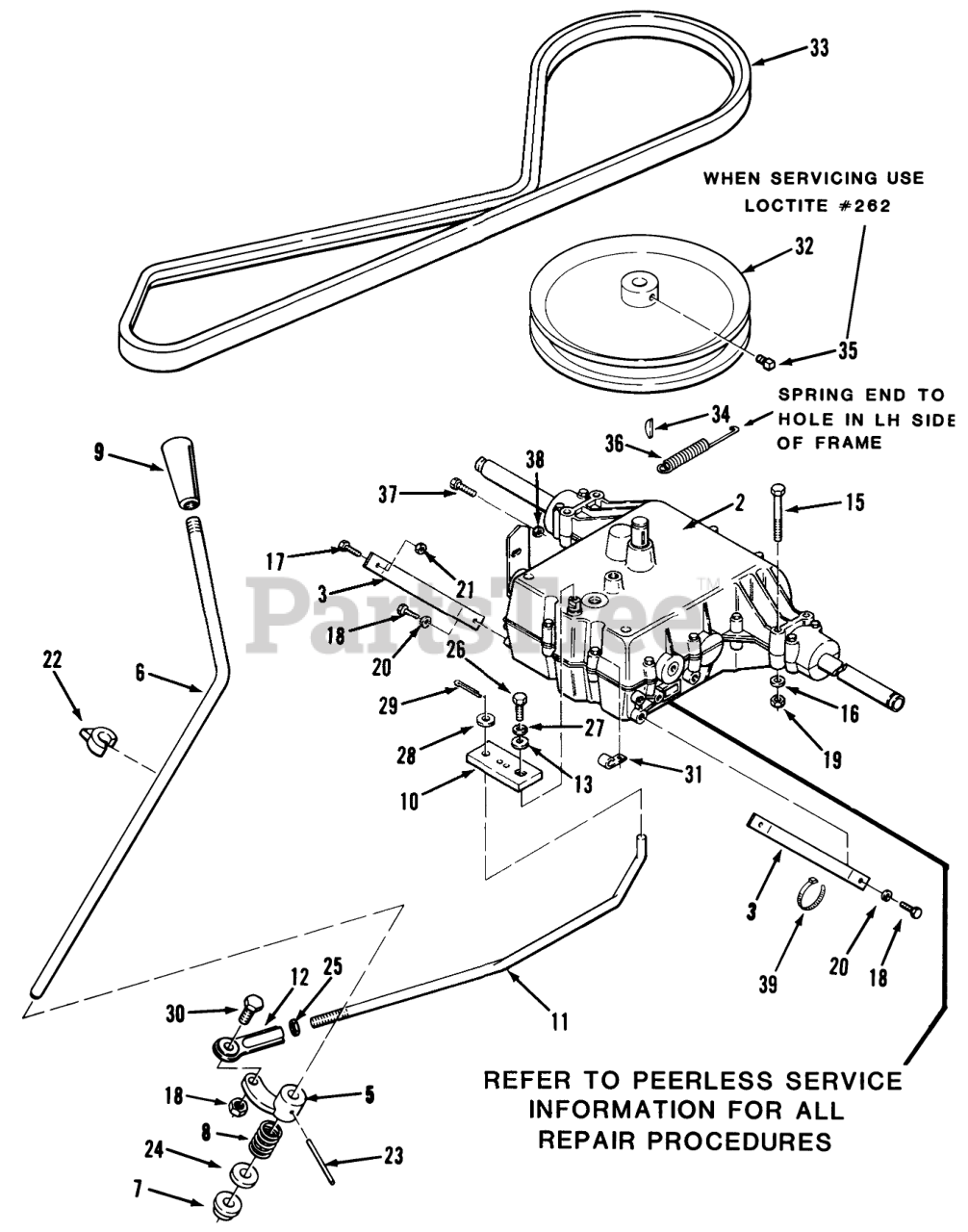

5-SPEED TRANSMISSION Parts Diagram

  • Title
2

Toro 112299

Trans.-5-Spd.(Peerless Model 920-009)

$

$

Not available

3

Toro 112982

TORQUE-STRAP R

$

$

Not available

5

Toro 111430

ARM SHIFTER B

$

$

Not available

6

Toro 114941

ROD-SHIFT LEVER

$129.99

$

Usually ships in 3-6 days

0

7

Toro 5666

BUSHING-NYLINER

$6.49

$

In Stock, Qty 10

0

8

Toro 111432

SPRING COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

9

$27.99

$

Usually ships in 3-6 days

0

10

Toro 115198

ARM-TRANSMISSION 5SP

$

$

Not available

11

Toro 115042

ROD-LINKAGE

$82.99

$

Usually ships in 3-6 days

0

12

Toro 115043

END-ROD

$

$

Not available

13

Toro 104869

WASHER

$

$

Not available

15

Toro 908025

HHCS
(Superseded to 322-12)

$2.49

$

In Stock, Qty 10

0

16

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

17

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

18

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

19

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

20

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

21

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

22

Toro 113205

Pointer
(Superseded to 113025)

$4.49

$

Usually ships in 3-6 days

0

23

Toro 933273

SPIROL PIN 7/32X21/2

$2.49

$

Usually ships in 3-6 days

0

24

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

25

Toro 915084

Nut
(Superseded to 3220-2)

$1.49

$

In Stock, Qty 20+

0

26

Toro 208153

Hex Hd. Cap Screw 1/4-28 x 7/8

$

$

Not available

27

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

28

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

29

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

30

Toro 911425

BOLT-SPEC 5/16X1.25

$

$

Not available

31

Toro 111357

J-CLIP

$

$

Not available

32

Toro 108790

PULLEY-TRANS

$

$

Not available

33

Toro 114860

BELT-V

$42.99

$

In Stock, Qty 8

0

34

Toro 937225

KEY-HI-PRO

$5.49

$

Usually ships in 3-6 days

0

35

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, only 3 left!

0

36

Toro 110769

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0

37

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

38

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

39

Toro 100571

PLASTIC TIE

$

$

Not available
