32-12.5K-5 - Exmark 32", 36", 48" Walk-Behind Mower, 12.5hp Kohler (SN: 40000 - 49999) (1989) Peerless Transmission Parts Diagram

32", 36", 48" Walk-Behind Mower, 12.5hp Kohler

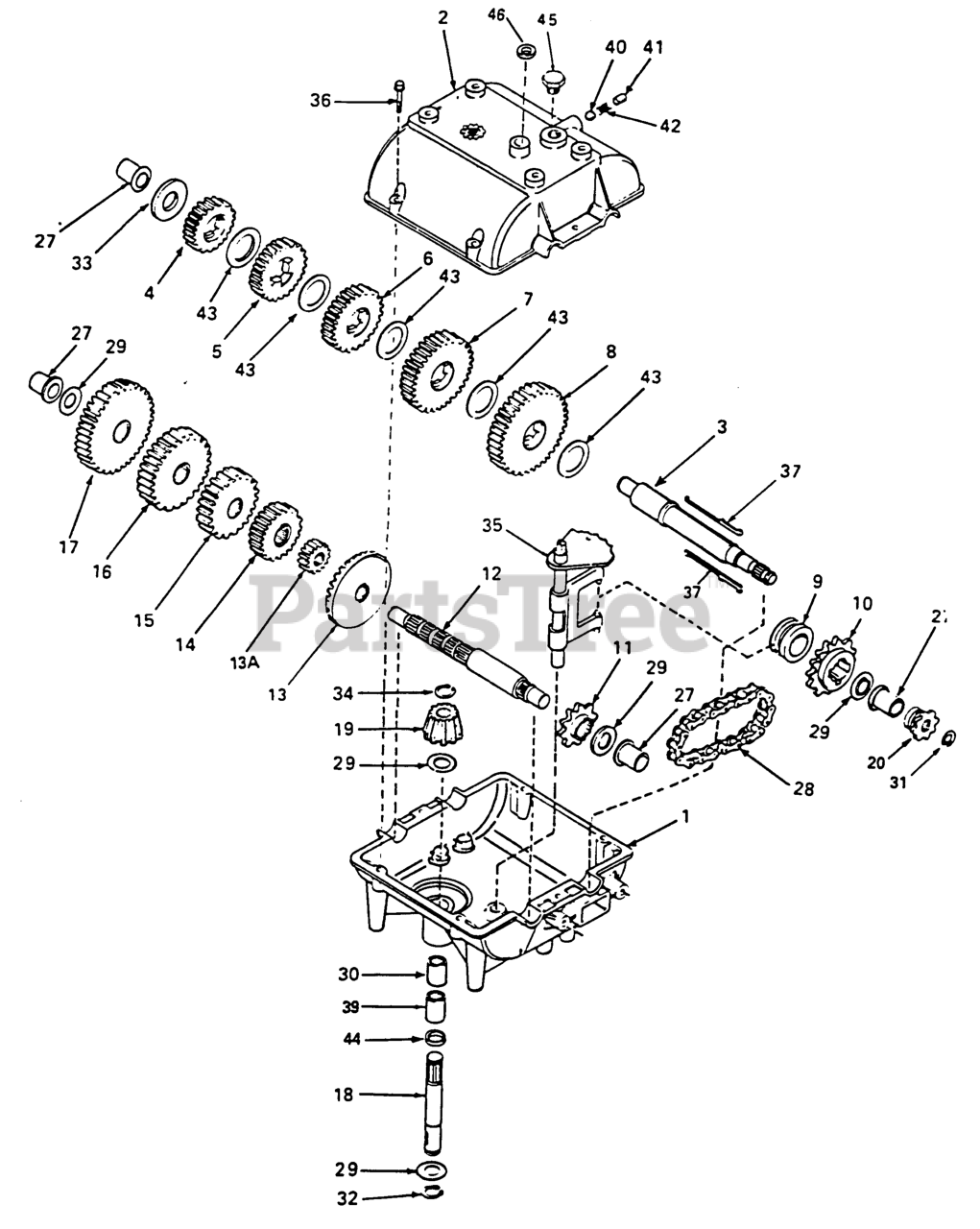

Peerless Transmission Parts Diagram

  • Title

1

Exmark 1-770061

Case, Transmission

$

$

Currently unavailable

2

Exmark 1-772083

$

$

Currently unavailable

3

Exmark 1-776232

Shaft, Output

$

$

Currently unavailable

4

Exmark 778L2LA

$

$

Currently unavailable

5

Exmark 778L22A

$

$

Currently unavailable

6

Exmark 778123A

Gear, Spur (25 Teeth)

$

$

Currently unavailable

7

Exmark 778124A

Gear, Spur (30 Teeth)

$

$

Currently unavailable

8

Exmark 1-778125

Gear, Spur (35 Teeth)

$

$

Currently unavailable

9

Exmark 1-784266

Collar, Shift

$

$

Currently unavailable

10

Exmark 1-786083

Sprocket (18 Teeth)

$

$

Currently unavailable

11

Exmark 1-786082

Sprocket (9 Teeth Sprocket)

$

$

Currently unavailable

12

Exmark 1-776134

Shaft, Counter

$

$

Currently unavailable

13

Exmark 1-778154

Bevel Gear (42 Teeth)

$

$

Currently unavailable

13A

Exmark 1-778136

Gear, Spur (15 Teeth)

$

$

Currently unavailable

14

Exmark 778126A

Gear, Spur (20 Teeth)

$

$

Currently unavailable

15

Exmark 778127A

Gear, Spur (25 Teeth)

$

$

Currently unavailable

16

Exmark 778128A

Spur (28 Teeth Gear)

$

$

Currently unavailable

17

Exmark 778L29A

$

$

Currently unavailable

18

Exmark 1-776135

Input Shaft (3-11/16" Long)

$

$

Currently unavailable

19

Exmark 778L53

$

$

Currently unavailable

20

Exmark 1-786048

$

$

Currently unavailable

27

Exmark 780105A

Bushing, Flanged

$

$

Currently unavailable

28

Exmark 1-786081

Chain, Roller (No. 41 Chain, 24 Links)

$

$

Currently unavailable

29

Exmark 1-780072

Washer, Thrust

$

$

Currently unavailable

30

Exmark 1-780142

Bearing, Needle

$

$

Currently unavailable

31

Exmark 1-792072

Ring, Retaining

$

$

Currently unavailable

32

Exmark 1-792035

Ring, Retaining

$

$

Currently unavailable

33

Exmark 1-780109

Washer

$

$

Currently unavailable

34

Exmark 1-788040

Ring, Retaining

$

$

Currently unavailable

35

Exmark 1-784267

Rod & Fork Assy., Shift

$

$

Currently unavailable

36

Exmark 1-792073

Screw, Flanged Hex Hd. Thr'd Forming 1/4-20 X 1-1/4

$

$

Currently unavailable

37

Exmark 792089A

Shift Key

$

$

Currently unavailable

39

Exmark 1-780142

Bearing, Needle

$

$

Currently unavailable

40

Exmark 1-792077

Steel Ball, 5/16" Dia.

$

$

Currently unavailable

41

Exmark 1-792078

Set Screw, 3/8-16 X 3/8"

$

$

Currently unavailable

42

Exmark 1-792079

Spring

$

$

Currently unavailable

43

Exmark 1-780108

Washer, Thrust

$

$

Currently unavailable

44

Exmark 1-792001

"O" Ring

$

$

Currently unavailable

45

Exmark 1-792074

Plug, Threaded

$

$

Currently unavailable

46

Exmark 1-788069

Seal, Square Cut

$

$

Currently unavailable
