32-11B501 (211-5) - Toro Lawn Tractor (1987) FRAME, SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

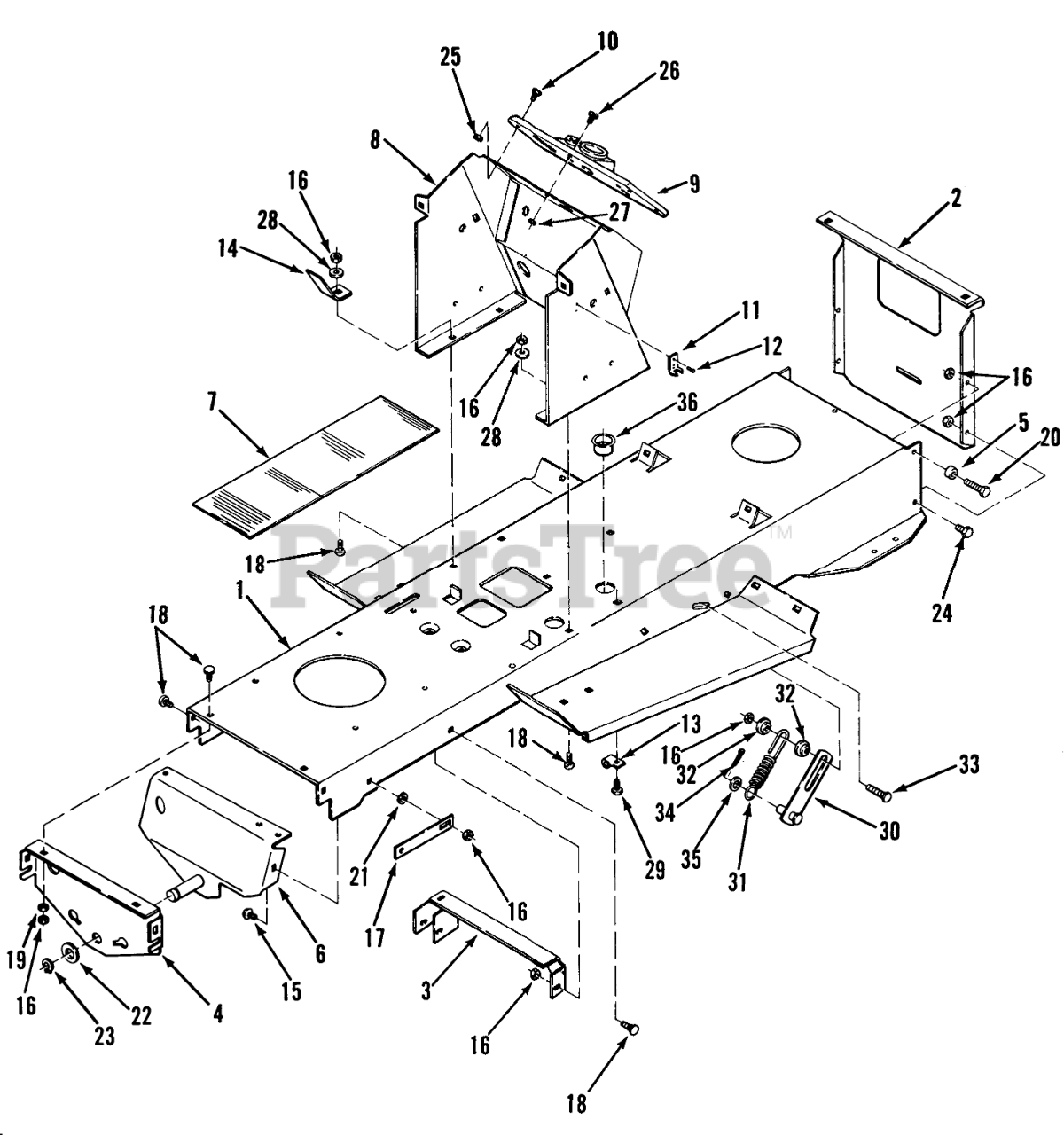

FRAME, SHEET METAL AND COVERS Parts Diagram

  • Title
1

Toro 111394

Frame

$

$

Not available

2

Toro 111395

PLATE DRAWBAR

$116.99

$

Usually ships in 3-6 days

0

3

Toro 111469

Frame Support Plate

$

$

Not available

4

Toro 111397

PLATE SUPT - AXLE R

$110.99

$

Usually ships in 3-6 days

0

5

Toro 100304

Spacer

$6.49

$

Usually ships in 3-6 days

0

6

Toro 111398

REAR AXLE SUPPORT ASSY R

$

$

Not available

7

Toro 106488

PAD-FOOTREST

$31.99

$

Usually ships in 3-6 days

0

7

Toro 110180

PAD-FOOTREST

$

$

Not available

8

Toro 111463

HOODSTAND ASSY

$

$

Not available

8

Toro 111408

Hoodstand 211-5

$

$

Not available

9

Toro 111467

CONSOLE

$

$

Not available

9

Toro 111651

CONSOLE

$

$

Not available

10

Toro 111499

SCREW #10X.62 PHCR

$

$

Not available

11

Toro 106825

ASSY-FLEX DRAW LATCH

$45.99

$

Usually ships in 3-6 days

0

12

Toro 923784

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

13

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

14

Toro 111671

BRACKET FUSE

$

$

Not available

15

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

Usually ships in 3-6 days

0

16

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 18

0

17

Toro 111763

STRAP R

$19.99

$

Usually ships in 3-6 days

0

18

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

19

Toro 920084

LOCKWASHER

$0.99

$

Usually ships in 3-6 days

0

20

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

21

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available

22

Toro 1278

WASHER

$2.99

$

In Stock, only 1 left!

0

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 12

0

23

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

24

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

25

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

26

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

27

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

28

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

29

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

30

Toro 111524

ASSY LINK B

$

$

Not available

31

Toro 111527

SPRING

$55.99

$

In Stock, only 2 left!

0

32

Toro 111758

BUSHING

$

$

Not available

33

Toro 900040

Bolt-Carriage
(Superseded to 3230-4)

$3.99

$

In Stock, Qty 6

0

34

$

$

Not available

35

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0

36

Toro 938031

BUSHING-NYLON 1.093

$0.99

$

Usually ships in 3-6 days

0
