32-11B401 (211-4) - Toro Lawn Tractor (1987) FRAME, SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

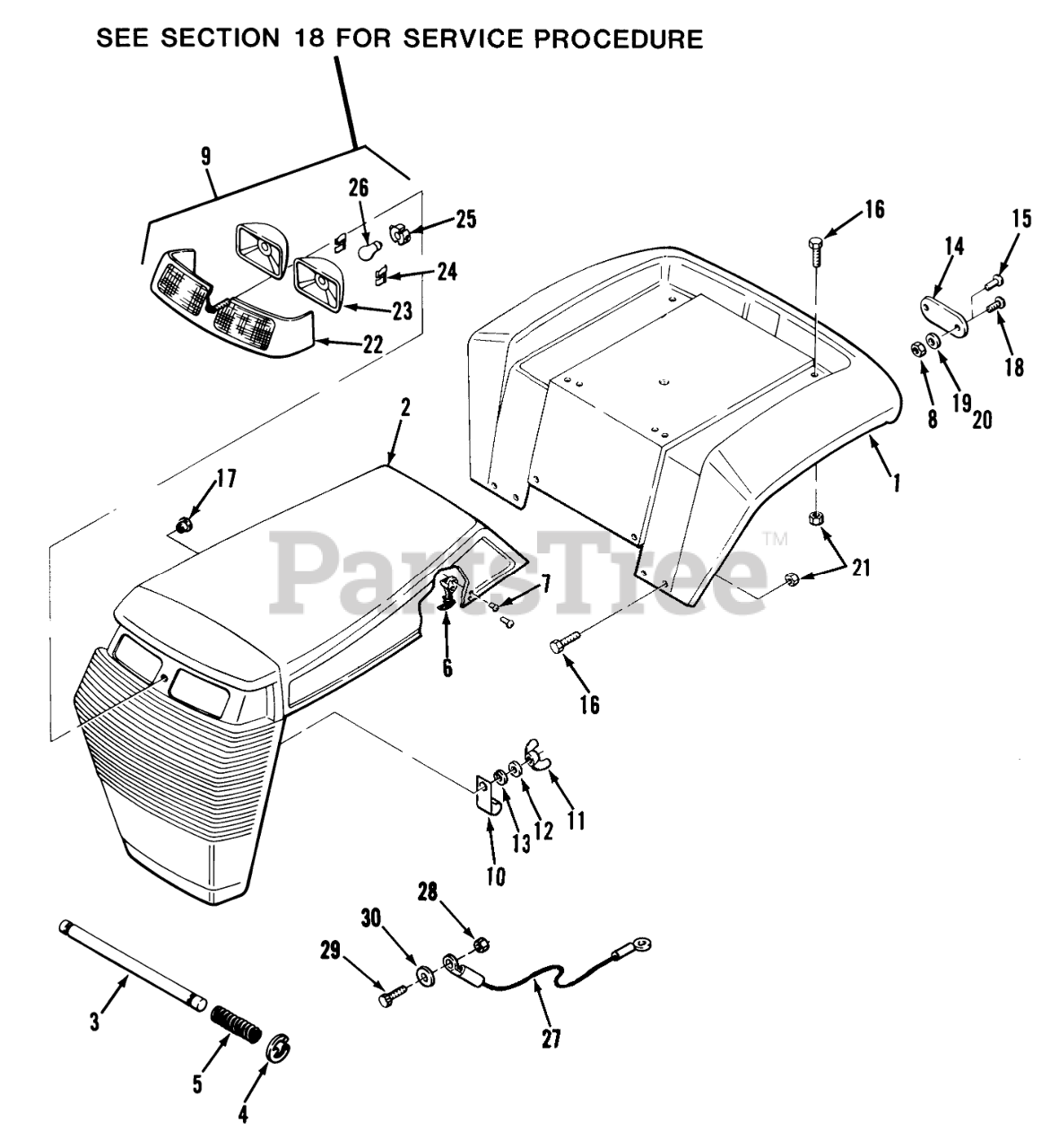

FRAME, SHEET METAL AND COVERS Parts Diagram

  • Title
1

Toro 112835

FENDER R

$

$

Not available

2

Toro 113322

Hood & Grill 208-4
(Superseded to 115967)

$

$

Not available

2

Toro 112705

Hood & Grill 211-4 & 211-5
(Superseded to 115966)

$

$

Not available

2

Toro 112159

Hood & Grill 212-6

$

$

Not available

3

$120.99

$

Usually ships in 3-6 days

0

4

Toro 107772

E-Ring
(Superseded to 32151-73)

$3.49

$

In Stock, Qty 6

0

5

Toro 111536

SPRING

$

$

Not available

6

Toro 106825

ASSY-FLEX DRAW LATCH

$53.99

$

Usually ships in 3-6 days

0

7

Toro 923784

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

8

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

9

Toro 111533

Head Light Bar (includes items 22, 23, 24, 25, & (2) of 26)
(Superseded to 116600)

$

$

Not available

10

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

11

Toro MW8756

Nut-Wing
(Superseded to 32103-19)

$1.99

$

In Stock, only 2 left!

0

12

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

13

Toro 920154

LCKWSHR 1/4 INT TTH

$

$

Not available

14

Toro 108547

Reflector
(Superseded to 106557)

$

$

Not available

15

Toro 109193

Poprivet
(Superseded to 3290-282)

$0.99

$

In Stock, Qty 8

0

16

Toro 900214

Bolt-Carriage
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

17

Toro 938031

BUSHING-NYLON 1.093

$

$

Not available

18

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

19

Toro 920004

WASHER

$0.99

$

Usually ships in 3-6 days

0

20

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

21

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

22

Toro 111471

Light Bar

$

$

Not available

23

Toro 111684

LIGHT POD

$

$

Not available

24

Toro 111685

RETAINER

$

$

Not available

25

Toro 111686

SOCKET-LIGHT
(Superseded to 116262)

$55.99

$

Usually ships in 3-6 days

0

26

Toro 7228

BULB

$24.99

$

Usually ships in 3-6 days

0

27

Toro 113319

CABLE-HOOD LANYARD

$

$

Not available

27

Toro 112840

Hood Lanyard Cable 211-4 & 211-5

$

$

Not available

27

Toro 112708

CABLE-HOOD LANYARD

$

$

Not available

28

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

29

Toro 913111

Screw-Machine
(Superseded to 3290-321)

$4.49

$

Usually ships in 3-6 days

0

30

Toro 112925

WASHER-BACKING

$

$

Not available
