32-11B401 (211-4) - Toro Lawn Tractor (1987) ENGINE PULLEY & PTO CLUTCH Parts Diagram

Lawn Tractor

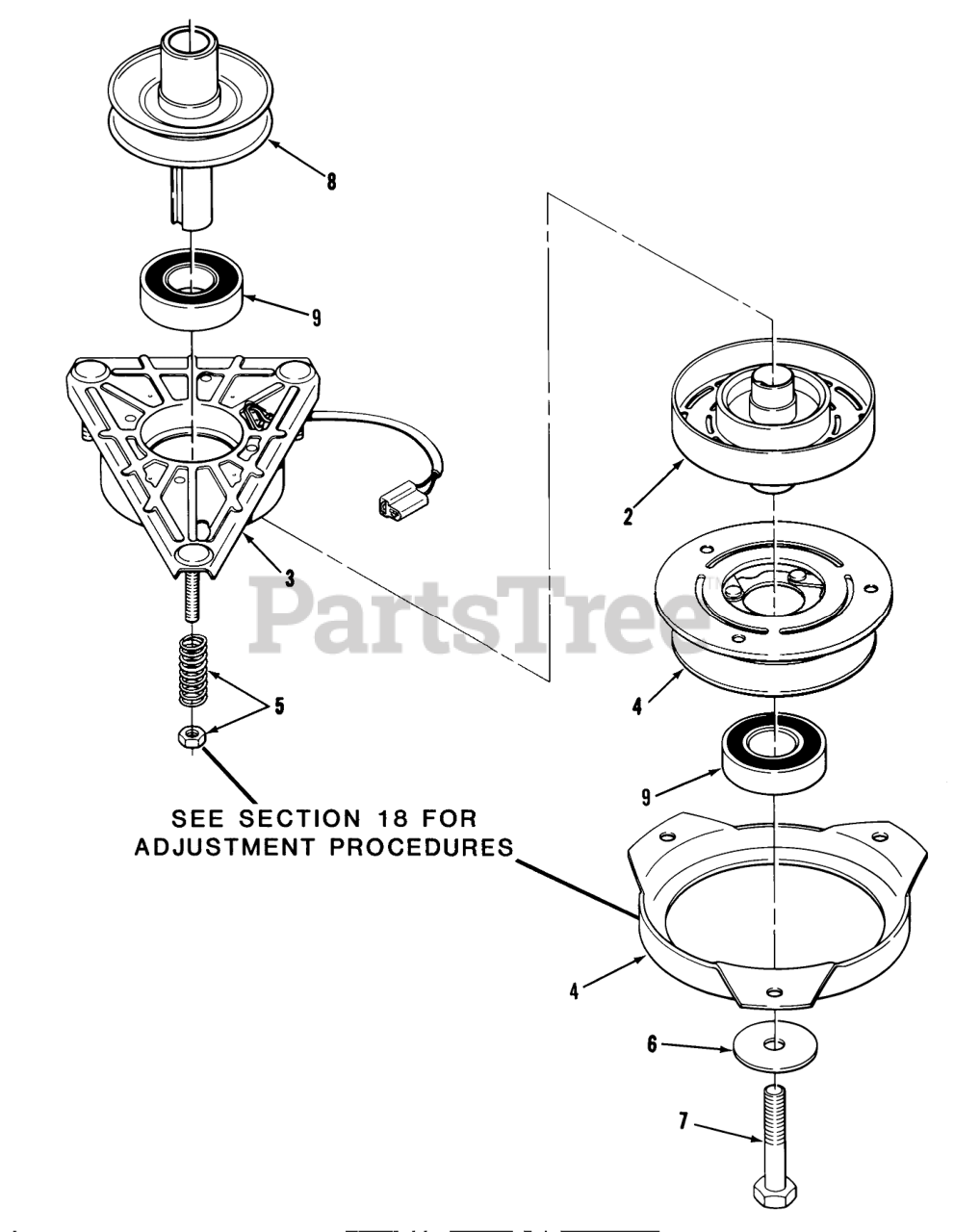

ENGINE PULLEY & PTO CLUTCH Parts Diagram

  • Title

Toro 112849

Electric Clutch Assy (includes items 2, 3, 4 & 5)
(Superseded to 99-8011)

$

$

Not available

2

Toro 113820

ASS'Y-ROTOR

$

$

Not available

3

Toro 113821

Field Assy (includes one of item 9)

$

$

Not available

4

Toro 113822

Armature and Pulley Assy (includes one of item 9 and Brake Plate)

$497.99

$

Usually ships in 3-6 days

0

5

Toro 113823

ACCESS SPRING & NUT

$

$

Not available

6

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

7

Toro 911477

Bolt 7/16-20 X 4-1/4 208-5

$

$

Currently unavailable

7

Toro 911446

Bolt
(Superseded to 9114466)

$90.99

$

Usually ships in 3-6 days

0

7

Toro 112853

HHCS M10X1.5X120

$

$

Not available

8

Toro 112857

PULLEY-ENGINE

$

$

Not available

8

Toro 112858

PULLEY-ENGINE

$236.99

$

Usually ships in 3-6 days

0

9

Toro 114064

BEARING-ELEC CLUTCH

$78.99

$

In Stock, only 2 left!

0
