32-11B401 (211-4) - Toro Lawn Tractor (1987) ENGINE, FUEL & EXHAUST SYSTEMS Parts Diagram

Lawn Tractor

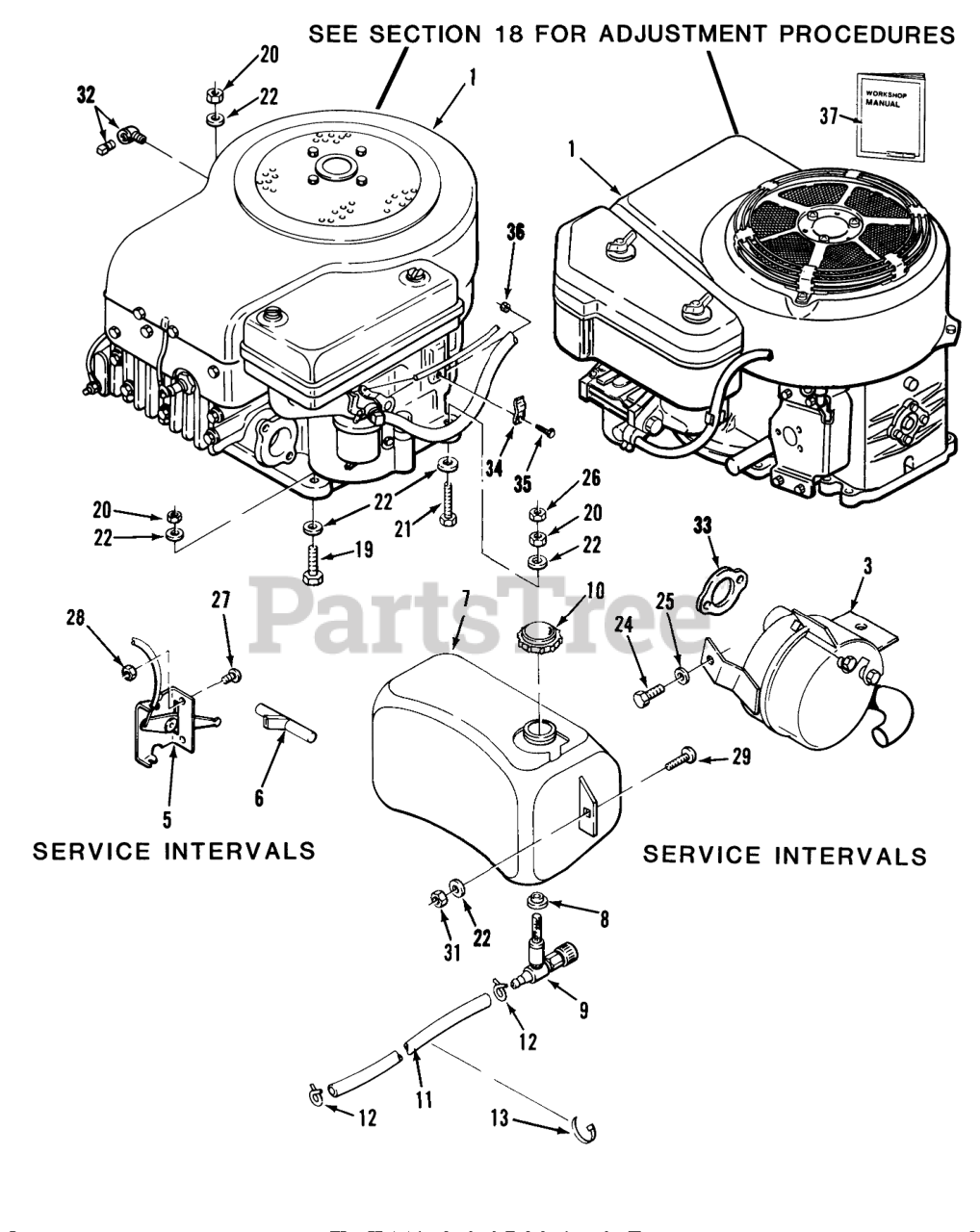

ENGINE, FUEL & EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 112336

Engine-8HP-B&S Model 191707, Type 2175-01 208-4 Only

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. WHEEL HORSE Part Number Is Listed For Cross-Reference Purposes Only; Item Is Not Available Through WHEEL HORSE.

$

$

Currently unavailable

1

Toro 112986

Engine-11HP-B&S Model 252707, Type 0624-01 211-4 Only

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. WHEEL HORSE Part Number Is Listed For Cross-Reference Purposes Only; Item Is Not Available Through WHEEL HORSE.

$

$

Not available

1

Toro 112909

Engine-11HP-B&S Model 253707, Type 0222-01 211-5 Only

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. WHEEL HORSE Part Number Is Listed For Cross-Reference Purposes Only; Item Is Not Available Through WHEEL HORSE.

$

$

Not available

1

Toro 112146

Engine-12.5HP Kawasaki Model FB460V, Type AS/BS-13 212-6 Only (See sections 9-2 thru 9-7 for complete engine parts breakdown)

$

$

Not available

3

Toro 113304

Muffler-Black (includes Bolts, Heat Deflector and Spacer) 208-5

$

$

Not available

3

Toro 113008

Muffler-Black (includes Bolts, Heat Deflector and Spacer) 211-4 & 211-5
(Superseded to 115391)

$980.99

$

Usually ships in 3-6 days

0

5

Toro 111462

Choke/Throttle Control
(Superseded to 115788)

$

$

Not available

5

Toro 113498

CONTROL-THROTTLE

$

$

Not available

6

Toro 107045

KNOB-CONTROL
(Superseded to 233-50)

$3.49

$

In Stock, only 1 left!

0

7

Toro 111472

Fuel Tank
(Superseded to 112153)

$

$

Not available

8

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

9

Toro 110425

Valve
(Superseded to 104048)

$36.99

$

In Stock, Qty 9

0

10

Toro 111474

CAP GAS

$28.99

$

In Stock, only 2 left!

0

11

Toro 113324

FUEL LINE 19" OF 6554

$

$

Not available

11

Toro 2442

Fuel Line 22" 212-6

$

$

Currently unavailable

12

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

13

Toro 100571

PLASTIC TIE

$

$

Not available

19

Toro 908022

HHCS
(Superseded to 322-9)

$3.49

$

In Stock, Qty 20+

0

20

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

22

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

24

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0

25

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

26

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

27

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

28

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

29

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

31

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

32

Toro 943083

STREET ELBOW 45DEGRE

$19.99

$

Usually ships in 3-6 days

0

33

Toro 111724

Exhaust Gasket
(Superseded to 88-4410)

$19.99

$

In Stock, Qty 6

0

34

Toro 111688

CLAMP THROTTLE
(Superseded to 2210-249)

$3.49

$

Usually ships in 3-6 days

0

35

Toro 111689

SCREW THROTTLE

$

$

Not available

36

Toro 915644

Throttle Screw Nut

$

$

Currently unavailable

37

Toro 99924-2011

Kawasaki FB460V Workshop Manual

$

$

Currently unavailable
