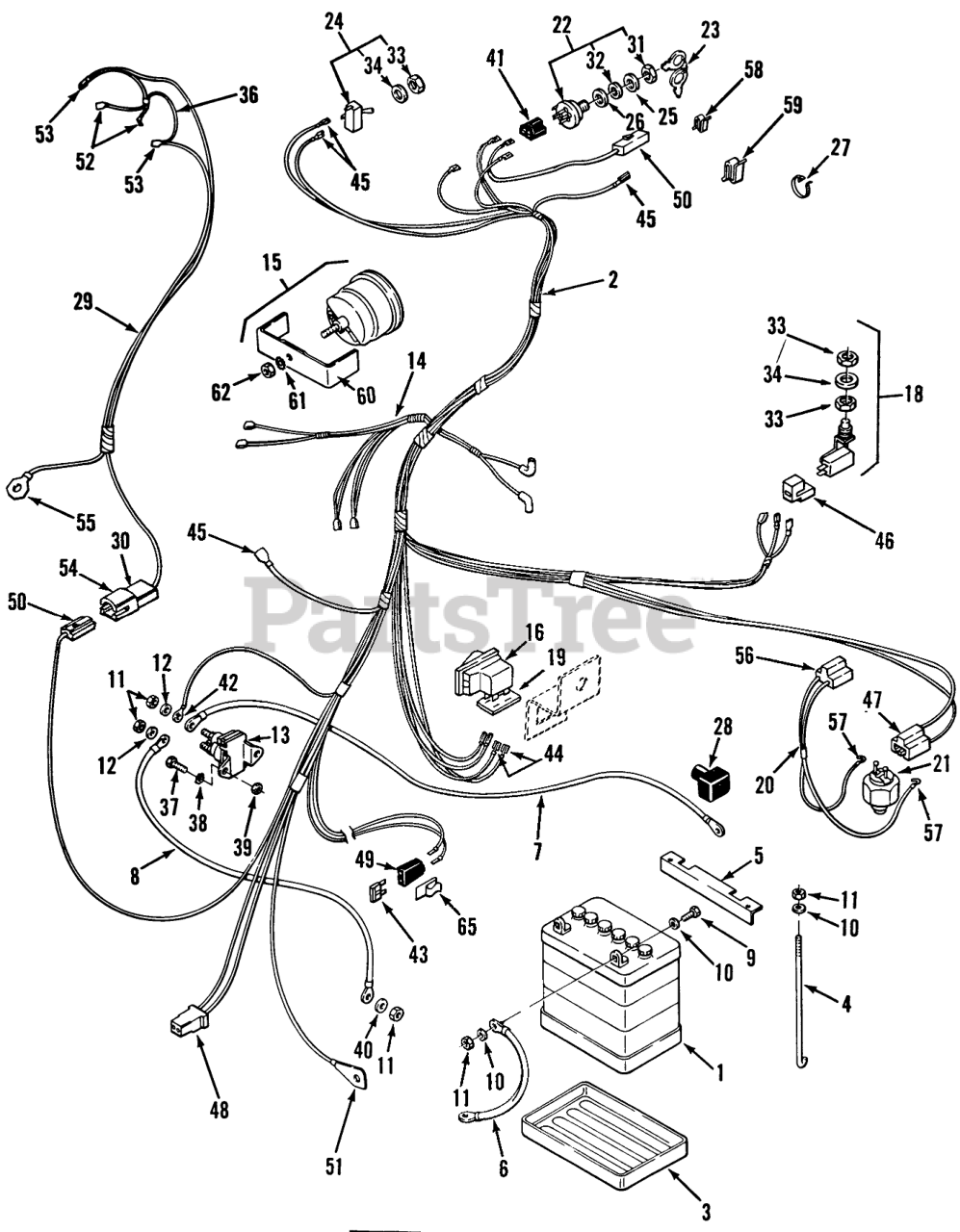

32-11B301 (211-3) - Toro Lawn Tractor (1987) ELECTRICAL SYSTEM Parts Diagram

Lawn Tractor

ELECTRICAL SYSTEM Parts Diagram

  • Title
1

Toro 104962

Battery
(Superseded to 105-1692)

$

$

Not available

2

Toro 111805

Wiring Harness 211-3

$

$

Not available

2

Toro 111468

Wiring Harness 211-5

$

$

Not available

3

Toro 110298

TRAY BATTERY

$33.99

$

In Stock, only 1 left!

0

4

$10.99

$

In Stock, only 2 left!

0

5

Toro 111944

Battery Angle

$

$

Not available

6

Toro 111078

WIRE -BLACK

$27.99

$

Usually ships in 3-6 days

0

7

Toro 111076

WIRE - 14" BLACK

$

$

Not available

8

Toro 111682

ASSY WIRE

$

$

Not available

9

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

10

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

11

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

12

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

13

Toro 111674

Solenoid (includes two of item 11)

$76.99

$

Usually ships in 3-6 days

0

14

Toro 111722

Accessory Wiring Harness 211-5 Only

$

$

Not available

15

Toro 110853

Hourmeter 314, 417
(Superseded to 113469)

$446.99

$

Usually ships in 3-6 days

0

16

Toro 110971

PTO Interlock Switch (includes item 19 w/ 109327 PTO Switch)

$

$

Not available

18

Toro 112418

SWITCH-PUSH

$60.99

$

In Stock, only 3 left!

0

19

Toro 110501

SHIELD-DIRT (DPDT)

$

$

Not available

20

Toro 111364

ASSY WIRING HARNESS

$

$

Not available

21

Toro 111365

SWITCH (N.C.-TRANS)

$

$

Not available

22

Toro 111215

Ignition Switch (includes items 31 & 32)
(Superseded to 103991)

$55.99

$

In Stock, only 1 left!

0

23

Toro 111220

Ignition Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

Toro 111214

KEY PADDED

$

$

Not available

24

Toro 102138

Light Switch 211-5 Only (includes items 33 & 34).

$40.99

$

Usually ships in 3-6 days

0

25

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

26

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

27

Toro 100571

PLASTIC TIE

$

$

Not available

28

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

29

Toro 111943

HARNESS

$

$

Not available

30

Toro 106026

Connector (part of item 29)

$

$

Currently unavailable

31

$7.49

$

In Stock, only 1 left!

0

32

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

33

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

34

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

36

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

37

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

38

Toro 920122

LOCKWASHER

$

$

Not available

39

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

40

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

41

Toro 105320

5-Terminal Connector (part of item 2)

$

$

Currently unavailable

42

Toro 102651

Terminal

$

$

Not available

43

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

44

Toro 518077

Terminal

$

$

Currently unavailable

45

Toro 8765

Connector

$

$

Not available

46

Toro 111498

CONNECTOR BODY

$5.49

$

In Stock, only 3 left!

0

47

Toro 109357

CONNECTOR BODY

$

$

Not available

48

Toro 518151

Conn Body Part of 7

$

$

Currently unavailable

49

Toro 518074

Terminal

$

$

Not available

50

Toro 104926

CONNECTOR BODY ELECT

$4.49

$

In Stock, only 2 left!

0

51

Toro 102651

Terminal

$

$

Not available

52

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

53

Toro 518104

Terminal

$

$

Currently unavailable

54

Toro 105312

Connector Part of 5

$

$

Currently unavailable

55

Toro 104926

CONNECTOR BODY ELECT

$4.49

$

In Stock, only 2 left!

0

56

Toro 110459

CONNECTOR BODY B

$1.99

$

In Stock, only 2 left!

0

57

Toro 105306

TERMINAL-TAB RCPT

$3.99

$

Usually ships in 3-6 days

0

58

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

59

Toro 3023

SPEED CLIP

$

$

Not available

60

Toro 108768

HOUR METER CLAMP

$

$

Not available

61

Toro 920120

Lockwasher
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days

0

62

Toro 915538

Hex Nut
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0
