32-10BE03 (210-H) - Toro Lawn Tractor (SN: 020000001 - 029999999) (1992) WHEEL & TIRE ASSEMBLY Parts Diagram

Lawn Tractor

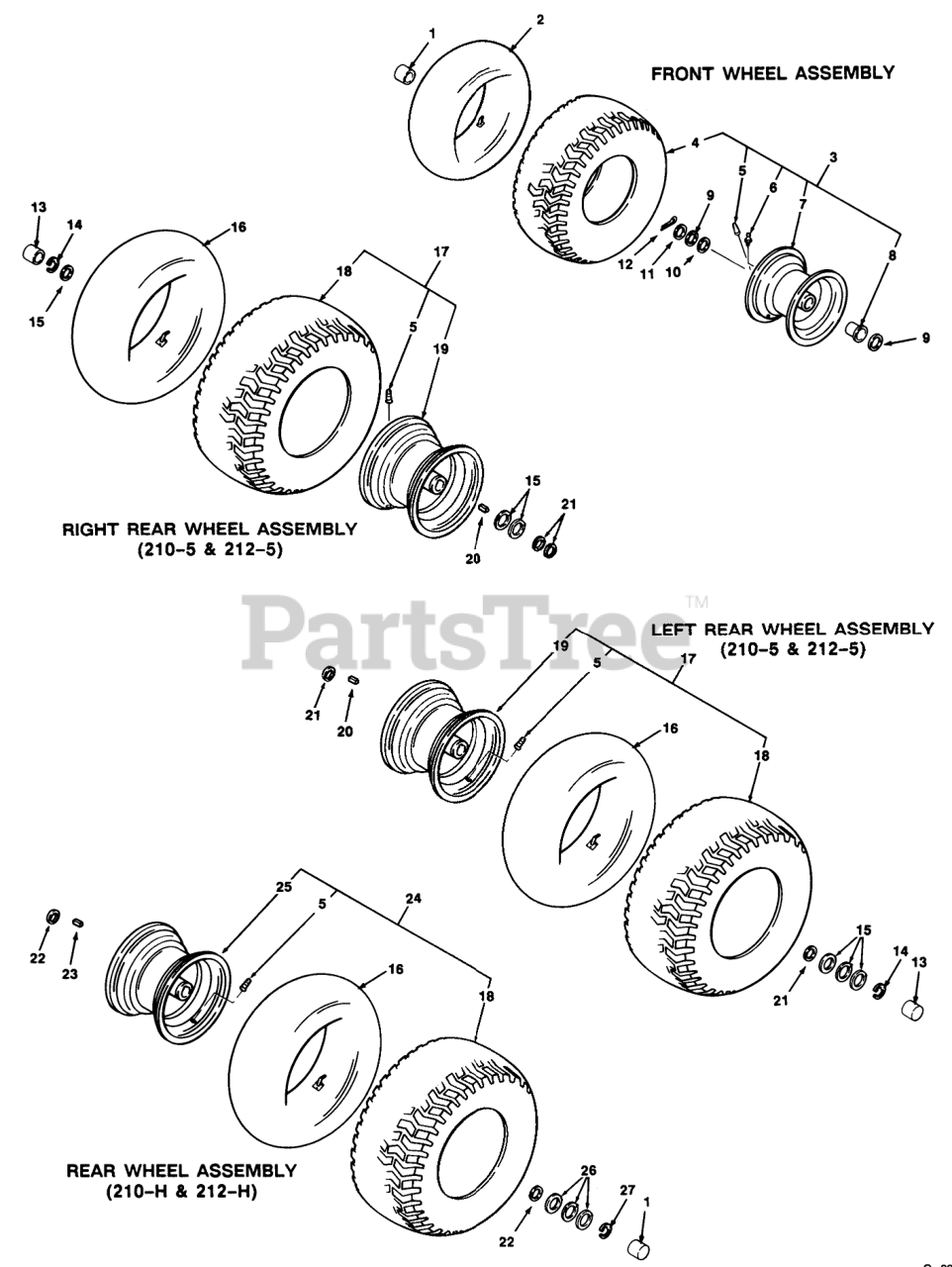

WHEEL & TIRE ASSEMBLY Parts Diagram

  • Title
1

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

2

$

$

Not available

3

Toro 116883

Front Wheel & Tire Assy. (Incl. Ref. #4-8)

$

$

Not available

4

Toro 116884

TIRE-15 X 6.00-6

$136.99

$

Usually ships in 3-6 days

0

5

Toro 5108

VALVE

$6.99

$

In Stock, Qty 17

0

6

Toro 109500

ZERK-GREASE

$3.49

$

Usually ships in 3-6 days

0

7

Toro 116885

Front Wheel Assembly (Incl. Ref. #5, 6 & 8)

$

$

Not available

8

Toro 116887

Bearing
(Superseded to 703730)

$29.99

$

Usually ships in 3-6 days

0

9

Toro 1278

WASHER

$2.99

$

In Stock, Qty 5

0

10

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 16

0

11

Toro 109262

WASHER-FLAT

$3.49

$

In Stock, only 1 left!

0

12

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

13

Toro 109261

HUB CAP

$

$

Not available

14

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

15

Toro 109262

WASHER-FLAT

$3.49

$

In Stock, only 1 left!

0

16

Toro 105450

Tube-Inner
(Superseded to 106396)

$41.99

$

Usually ships in 3-6 days

0

17

Toro 79-5580

Rear Wheel & Tire Assy. (Incl. Ref. #5, 18 & 19)

$793.99

$

Usually ships in 3-6 days

0

18

Toro 116880

TIRE-18X9.50-8 TT RS

$

$

Not available

19

Toro 116881

Rear Wheel Assembly (Incl. Ref. #5)
(Superseded to 79-5590)

$

$

Not available

20

Toro 1120

SQ KEY

$2.99

$

Usually ships in 3-6 days

0

21

Toro 1278

WASHER

$2.99

$

In Stock, Qty 5

0

22

Toro 920251

USE 920251P WASHER

$2.99

$

In Stock, only 2 left!

0

23

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

24

Toro 79-5560

Rear Wheel & Tire Assy. (Incl. Ref. #5, 16 & 25)

$635.99

$

Usually ships in 3-6 days

0

25

Toro 79-5570

Rear Wheel Assembly (Incl. Ref. #5)

$340.99

$

In Stock, only 1 left!

0

26

Toro 120860

WASHER-WHEEL

$6.49

$

In Stock, Qty 7

0

27

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 18

0
