32-10BE03 (210-H) - Toro Lawn Tractor (SN: 020000001 - 029999999) (1992) TRANSMISSION EATON MODEL 751-042 Parts Diagram

Lawn Tractor

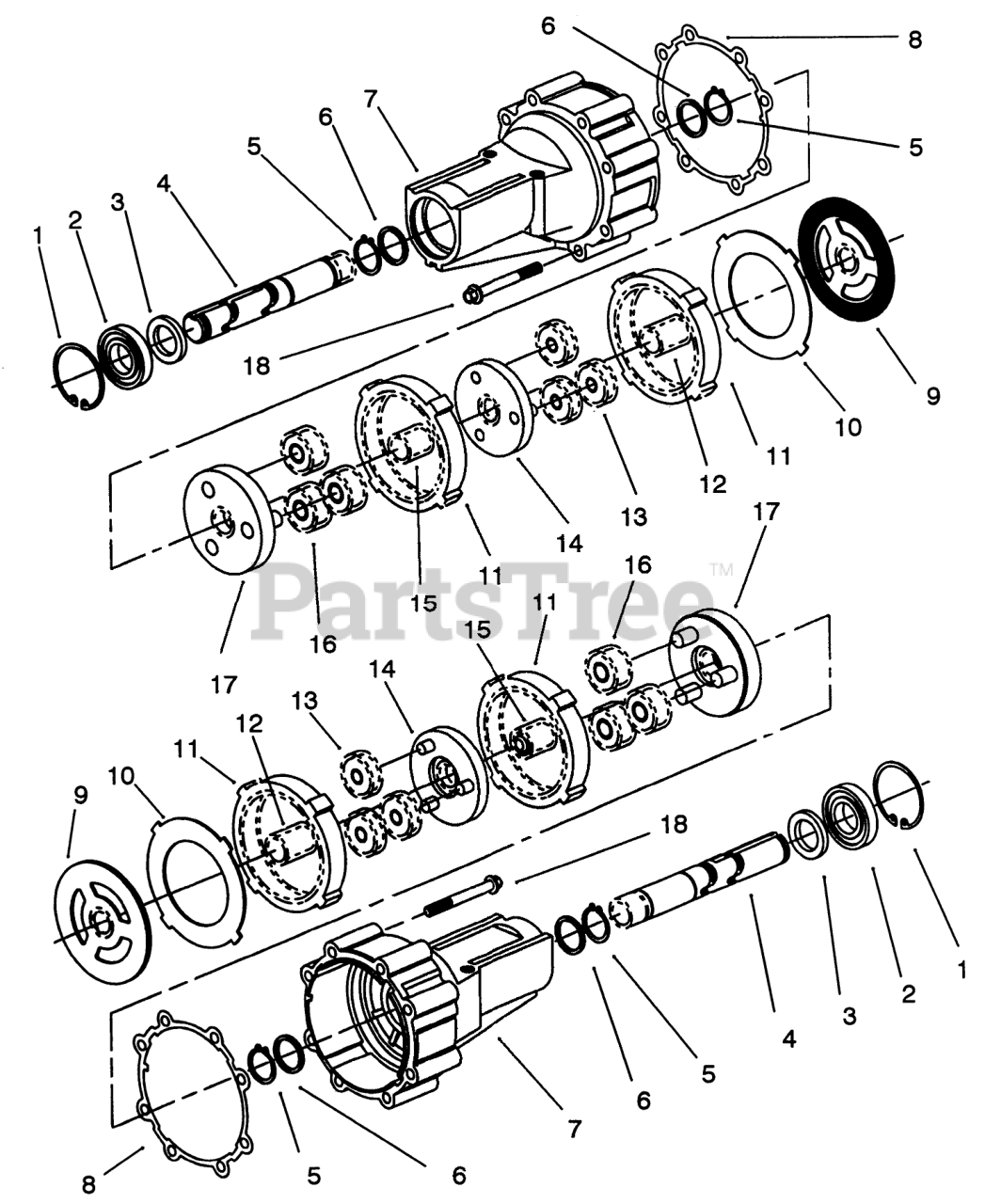

TRANSMISSION EATON MODEL 751-042 Parts Diagram

  • Title

1

Toro 88-2560

RETAINING RING

$

$

Not available

2

Toro 88-2570

BALL BEARING

$

$

Not available

3

Toro 88-2580

RADIAL LIP SEAL

$

$

Not available

4

Toro 88-2590

AXLE SHAFT

$

$

Not available

5

Toro 88-2600

RETAINING RING

$4.99

$

In Stock, only 2 left!

0

6

Toro 88-2610

THRUST WASHER

$

$

Not available

7

Toro 88-2620

AXLE HOUSING

$

$

Not available

Toro 88-2630

Housing Assembly-Axle (Incl. Ref.# 1-7)

$

$

Not available

8

Toro 88-2640

AXLE HOUSING GASKET

$29.99

$

In Stock, only 1 left!

0

9

Toro 88-2650

REACTION PLATE

$

$

Not available

10

Toro 88-2660

BACKUP PLATE

$41.99

$

In Stock, only 1 left!

0

11

Toro 88-2870

54 TOOTH RING GEAR

$

$

Not available

12

Toro 88-2880

15 TOOTH FIRST GEAR

$

$

Not available

13

Toro 88-2890

PLANET FIRST GEAR

$

$

Not available

14

Toro 88-2900

PRIMARY CARRIER

$

$

Not available

15

Toro 88-2910

SECOND GEAR

$

$

Not available

16

Toro 88-2920

SECOND GEAR

$

$

Not available

17

Toro 88-2830

SECONDARY CARRIER

$

$

Not available

18

Toro 88-2840

5/16 HEX HEAD SCREW

$

$

Not available
