32-10BE02 (210-H) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) 12HP ENGINE CYLINDER BLOCK ASSEMBLY Parts Diagram

Lawn Tractor

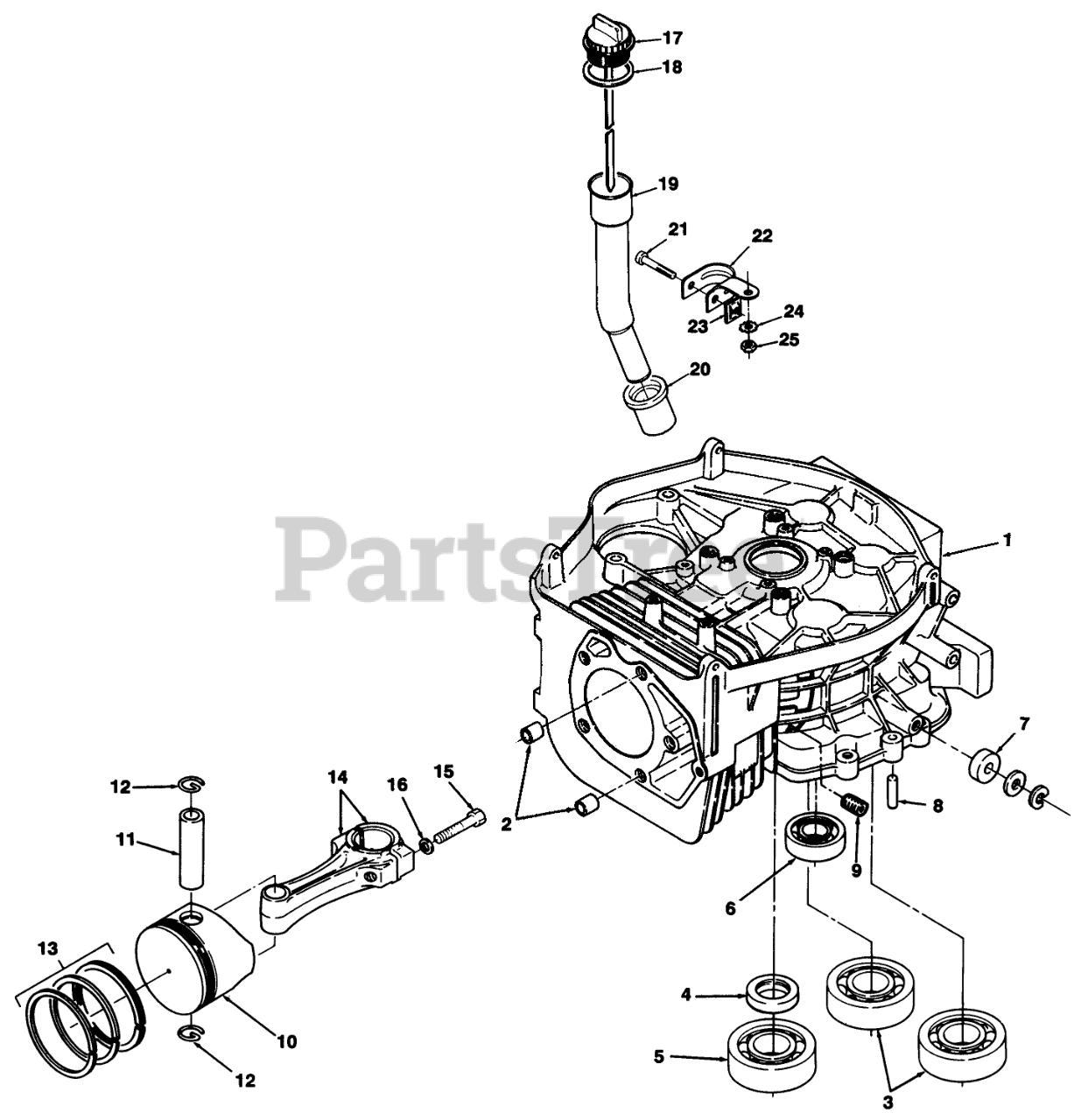

12HP ENGINE CYLINDER BLOCK ASSEMBLY Parts Diagram

  • Title

1

Toro NN10566

BLOCK-CYLINDER

$1725.99

$

Usually ships in 3-6 days

0

2

Toro NN10626

PIN-DOWEL HOLLOW

$

$

Not available

3

Toro NN10678

BRNG-BALL BAL SHFT L

$

$

Not available

4

Toro NN10569

SEAL-OIL CRNKSHFT UP

$17.99

$

Usually ships in 3-6 days

0

5

Toro NN10570

BEARING-BALL CRANKSH

$

$

Not available

6

Toro NN10571

BEARING-BALL CAMSHFT

$

$

Not available

7

Toro NN10646

SEAL-GVR SHAFT LEVER

$

$

Not available

8

Toro 79-5840

PIN-ALIGNMENT

$

$

Not available

9

Toro NN10653

Plug-Pipe
(Superseded to NN10783)

$

$

Not available

10

Toro NN10579

Kit-Piston (Standard)(Incl. Ref. #11 & 12)
(Superseded to 92-5886)

$

$

Not available

Toro NN10580

Kit-Piston (.25mm Oversize)(Incl. Ref. #11 & 12)
(Superseded to 92-5887)

$

$

Not available

Toro NN10581

Kit-Piston (.50mm Oversize)(Incl. Ref. #11 & 12)

$

$

Not available

11

Toro NN10582

PIN-PISTON

$

$

Not available

12

Toro NN10583

RING-RETAINING

$

$

Not available

13

Toro NN10584

Piston Ring Set-Standard
(Superseded to 92-5889)

$100.99

$

Usually ships in 3-6 days

0

Toro NN10585

Piston Ring Set-.25mm Oversize
(Superseded to 92-5890)

$

$

Not available

Toro NN10586

Piston Ring Set-.50mm Oversize
(Superseded to 92-5891)

$

$

Not available

14

Toro NN10587

Kit-Connecting Rod (Standard)(Incl. Ref. #15 & 16)

$

$

Not available

Toro NN10588

Kit-Connecting Rod (.25mm Undersize)(Incl. Ref. 15 & 16)

$229.99

$

Usually ships in 3-6 days

0

Toro NN10589

Kit-Connecting Rod (.50mm Undersize)(Incl. Ref. #15 & 16)

$212.99

$

Usually ships in 3-6 days

0

15

Toro NN10590

Bolt
(Superseded to NN10587)

$

$

Not available

16

Toro NN10591

WASHER-CONN ROD

$

$

Not available

17

Toro NN10688

Indicator (Incl. Ref. #18)

$

$

Not available

18

Toro NN10323

O-Ring
(Superseded to 57-9610)

$6.99

$

In Stock, only 1 left!

0

19

Toro NN10689

TUBE

$

$

Not available

20

Toro NN10690

Seal
(Superseded to 71-6170)

$13.99

$

In Stock, only 1 left!

0

21

Toro 82-1560

SCREW - PAN HEAD

$

$

Not available

22

Toro NN10691

BRACKET

$

$

Not available

23

Toro 82-1700

NUT - SPEED

$

$

Not available

24

Toro NN10740

WASHER

$

$

Not available

25

Toro NN10768

Nut
(Superseded to 92-5935)

$

$

Not available
