32-10BE01 (210-H) - Toro Lawn Tractor (1990) MECHANICAL TRANSMISSION BRAKE AND CLUTCH LINKAGE Parts Diagram

Lawn Tractor

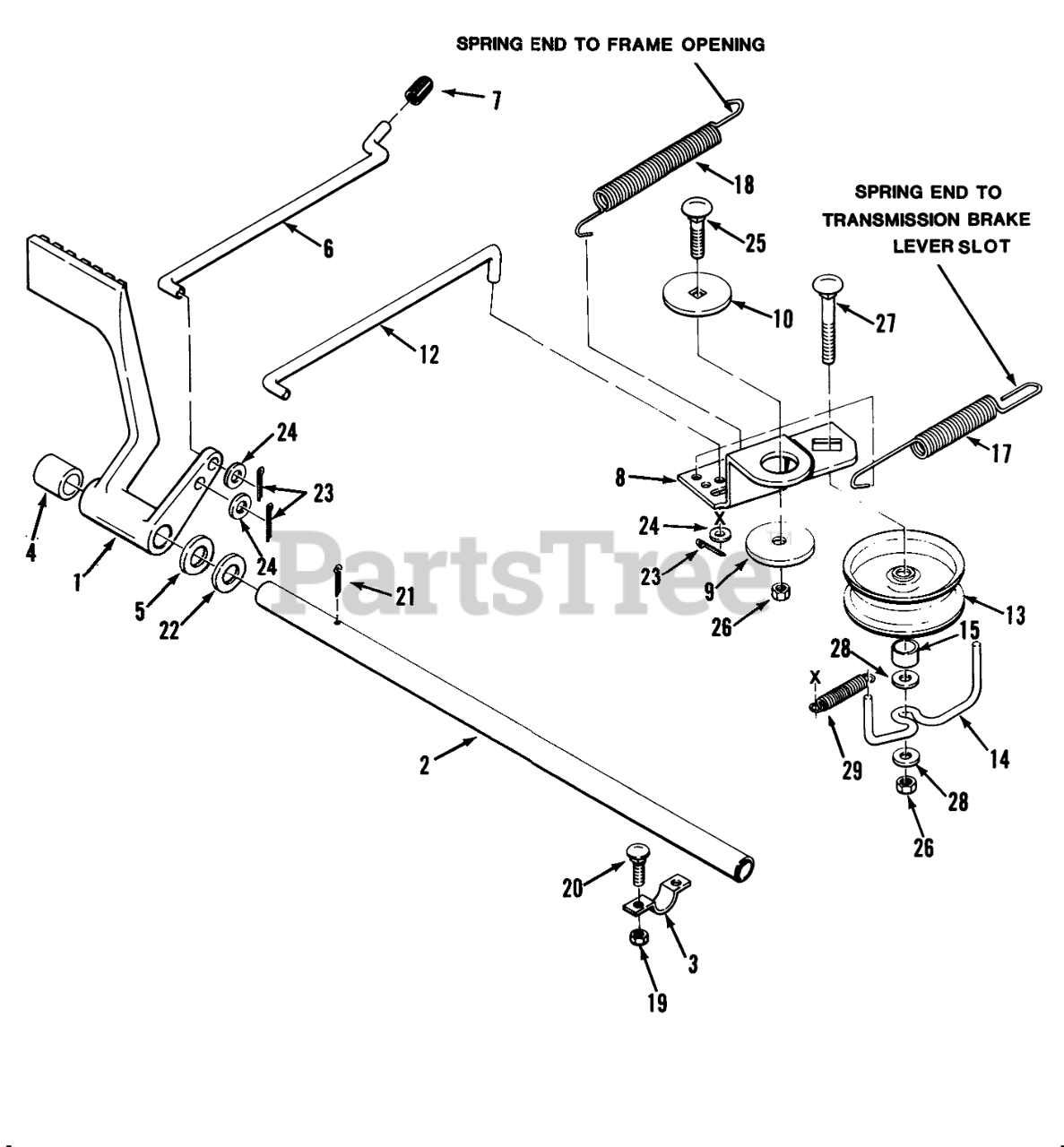

MECHANICAL TRANSMISSION BRAKE AND CLUTCH LINKAGE Parts Diagram

  • Title

1

Toro 111436

PEDAL BRAKE R

$

$

Not available

2

Toro 111437

SHAFT PEDAL

$

$

Not available

3

Toro 106288

CLAMP

$15.99

$

Usually ships in 3-6 days

0

4

Toro 110015

SPACER

$

$

Not available

5

Toro 111712

WASHER-WAVE

$

$

Not available

6

Toro 112984

Lock Rod

$

$

Not available

7

Toro 111439

GRIP

$

$

Not available

8

Toro 114859

ARM-IDLER R

$90.99

$

In Stock, only 1 left!

0

9

Toro 111418

BUSHING

$27.99

$

Usually ships in 3-6 days

0

10

Toro 111419

WASHER-BEARING

$44.99

$

Usually ships in 3-6 days

0

12

Toro 113129

ROD-CLUTCH/BRAKE B

$

$

Not available

13

Toro 111422

RETAINER R (NS)

$

$

Not available

14

Toro 111443

GUIDE-BELT

$

$

Not available

15

Toro 104525

SPACER
(Superseded to 93-3658)

$6.49

$

Usually ships in 3-6 days

0

17

Toro 111445

SPRING - BRAKE

$

$

Not available

18

Toro 111446

SPRING - CLUTCH

$

$

Not available

19

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 16

0

20

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

21

Toro 932025

PIN

$

$

Not available

22

Toro 920215

Washer
(Superseded to 9202154)

$1.99

$

In Stock, Qty 5

0

23

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

24

Toro 900008

Washer

$

$

Currently unavailable

25

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

26

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

27

Toro 900239

Carriage Bolt 3/8-16 x 2-1/4
(Superseded to 3231-33)

$4.99

$

Usually ships in 3-6 days

0

28

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

29

Toro 116150

EXTENSION-SPRING

$14.99

$

Usually ships in 3-6 days

0
