32-10B503 (210-5) - Toro Lawn Tractor (SN: 020000001 - 029999999) (1992) SEAT ASSEMBLY (210-5 & 210-H) Parts Diagram

Lawn Tractor

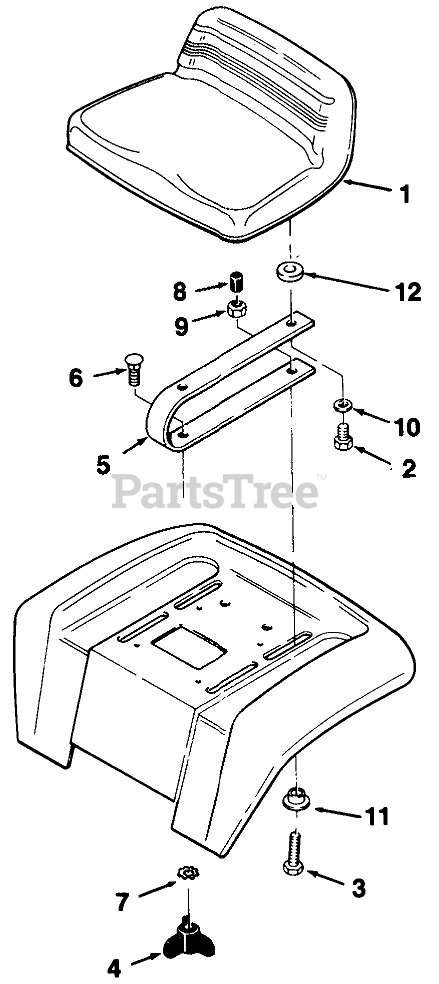

SEAT ASSEMBLY (210-5 & 210-H) Parts Diagram

  • Title
1

Toro 78-7600

SEAT - V320

$

$

Not available

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 322-41

SCREW-HH
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

4

Toro 78-7180

THREE-PRONG KNOB

$

$

Not available

5

Toro 112837

SPRING-SEAT B

$

$

Not available

6

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

Toro 78-2740

LOCKWASHER INT EXT

$

$

Not available

8

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

12

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0
