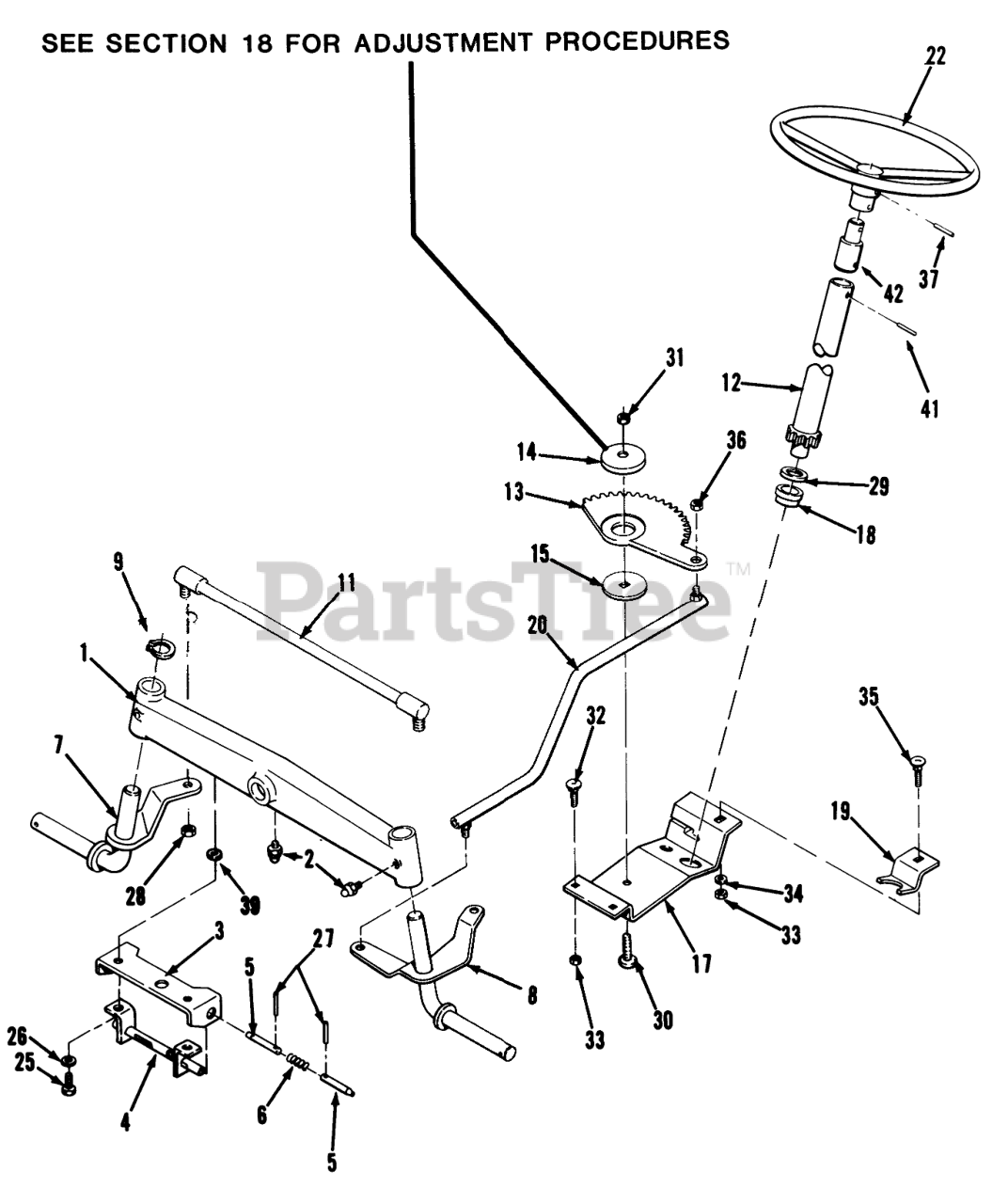

32-10B501 (210-5) - Toro Lawn Tractor (1990) FRONT AXLE AND STEERING Parts Diagram

Lawn Tractor

FRONT AXLE AND STEERING Parts Diagram

  • Title
1

Toro 114385

AXLE-FRONT R

$

$

Not available

2

Toro 1030

Zerk

$

$

Not available

3

Toro 112847

BRACKET-SUPPORT R
(Superseded to 112847-01)

$

$

Not available

4

Toro 113044

TUBE & BRACKET ASM R

$

$

Not available

5

$

$

Not available

6

Toro 111531

SPRING

$

$

Not available

7

Toro 111406

ASSY ARM STEERING R
(Superseded to 111406-01)

$

$

Not available

8

Toro 111409

ASSY ARM STEERING R
(Superseded to 111409-01)

$

$

Not available

9

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

11

Toro 112981

ASS'Y-TIE ROD R
(Superseded to 112981-01)

$

$

Not available

12

Toro 111413

ASSY PINION & SHA B
(Superseded to 111413-01)

$307.99

$

Usually ships in 3-6 days

0

13

Toro 111417

GEAR SECTOR

$

$

Not available

14

Toro 111418

BUSHING

$32.99

$

Usually ships in 3-6 days

0

15

Toro 111419

WASHER-BEARING

$

$

Not available

17

Toro 114943

Steering Gear Bracket 212-5

$

$

Not available

Toro 117327

BRKT-STEERING GEA R

$

$

Not available

18

Toro 110391

BEARING-WHEEL

$7.99

$

In Stock, only 4 left!

0

19

Toro 111442

PULLEY IDLER

$56.99

$

Usually ships in 3-6 days

0

20

Toro 111423

ASSY BALL JOINT L R
(Superseded to 111423-01)

$

$

Not available

22

Toro 117336

Wheel-Steering
(Superseded to 78-3100)

$374.99

$

Usually ships in 3-6 days

0

Toro 117337

Steering Wheel
(Superseded to 76-1420)

$217.99

$

Usually ships in 3-6 days

0

25

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

26

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

27

Toro 933268

SPIROL PIN

$1.49

$

In Stock, Qty 6

0

28

Toro 915692

5/16-24 E.S. NUT

$0.99

$

Usually ships in 3-6 days

0

29

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

30

Toro 900235

Bolt-Carriage
(Superseded to 3231-28)

$4.49

$

In Stock, Qty 20+

0

31

$6.49

$

In Stock, only 2 left!

0

32

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

33

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

34

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

35

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

36

Toro 915002

NUT-6
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

37

Toro 933272

SPIROL PIN 5/16X13/8

$2.49

$

Usually ships in 3-6 days

0

39

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

41

Toro 933221

Pin-Roll
(Superseded to 32121-111)

$2.99

$

In Stock, Qty 20+

0

42

Toro 116480

SHAFT-COUPLER

$115.99

$

Usually ships in 3-6 days

0
