32-10B501 (210-5) - Toro Lawn Tractor (1990) COVERS & GOVERNOR LINKAGE Parts Diagram

Lawn Tractor

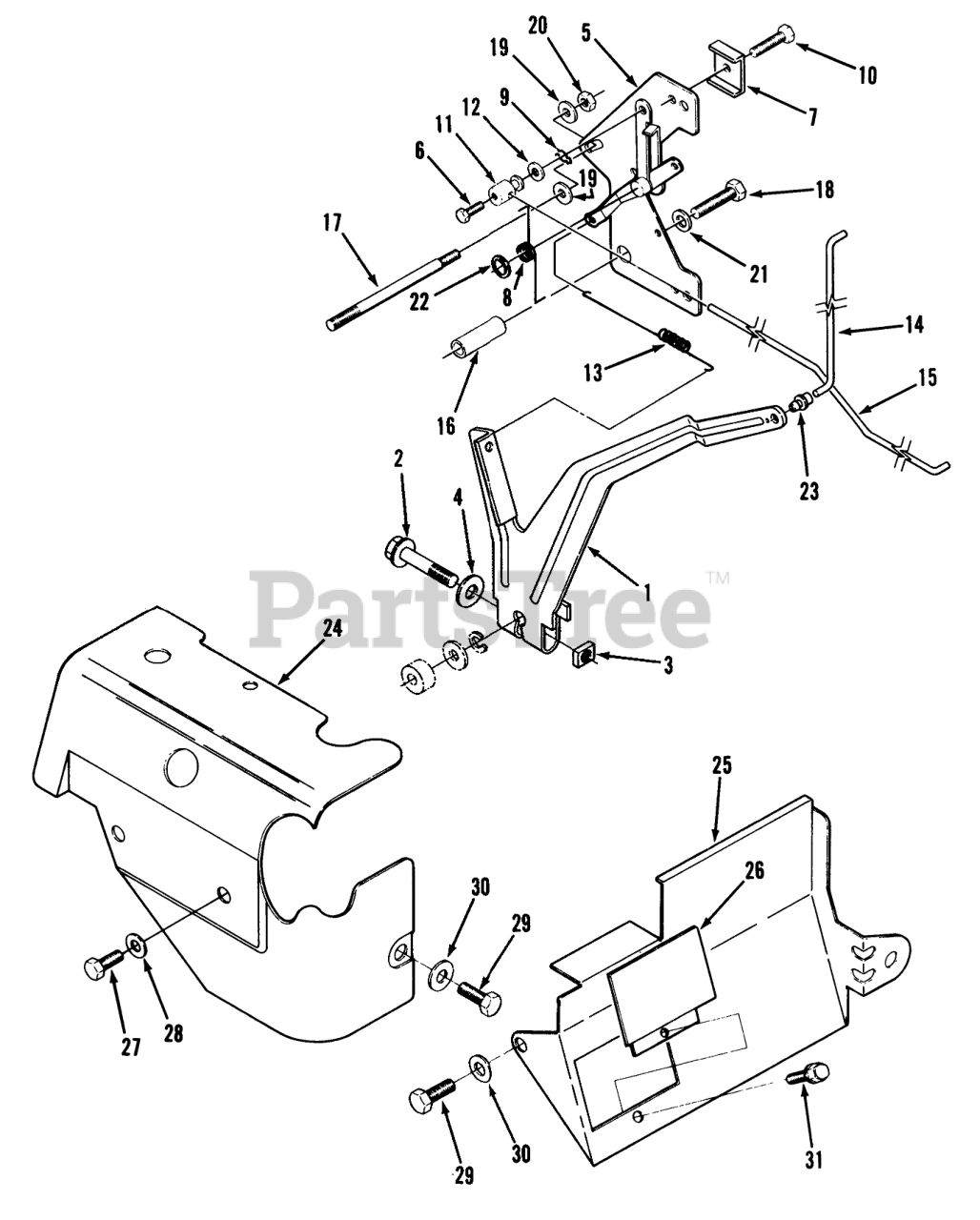

COVERS & GOVERNOR LINKAGE Parts Diagram

  • Title
1

Toro NN10647

LEVER-GOVERNOR

$

$

Not available

2

Toro NN10648

HHCS-M8 X 35MM

$

$

Not available

3

Toro NN10649

Nut
(Superseded to 92-5935)

$

$

Not available

4

Toro NN10650

Washer
(Superseded to NN10740)

$

$

Not available

5

Toro NN10651

Throtte Plate Assembly (Includes Control and Choke Levers, Pivot Pin and Flat Washers)

$

$

Not available

6

Toro NN10652

HHMS #8-32X3/8"

$

$

Not available

7

Toro NN10653

Plug-Pipe
(Superseded to NN10783)

$

$

Not available

8

Toro NN10654

SPRING-CHOKE LINKAGE

$

$

Not available

9

Toro NN10333

Cotler Pin
(Superseded to 59-0720)

$

$

Not available

10

Toro NN10655

HWHTF-SCRW M5X12MM

$

$

Not available

11

Toro NN10656

SWIVEL-CHOKE LEVER

$

$

Not available

12

Toro NN01364

Washer

$

$

Currently unavailable

13

Toro NN10657

SPRING-GOVERNOR

$

$

Not available

14

Toro NN10658

LINK-THROTTLE

$

$

Not available

15

Toro NN10659

LINK-CHOKE

$

$

Not available

16

Toro NN10660

SPACER

$

$

Not available

17

$

$

Not available

18

Toro NN10662

HHCS-M8 X 40MM

$

$

Not available

19

Toro NN10542

Washer
(Superseded to 82-1340)

$

$

Not available

20

Toro NN10663

NUT-HEX M6

$

$

Not available

21

Toro NN10543

Nut-M8
(Superseded to 82-1350)

$

$

Not available

22

Toro NN10664

RING-RETAINER

$

$

Not available

23

Toro NN10665

Clip-Link
(Superseded to 92-5920)

$

$

Not available

24

Toro NN10722

HSG-CYL AIR

$

$

Not available

25

Toro NN10723

Air Deflector
(Superseded to NN10801)

$

$

Not available

26

Toro NN10724

Cover
(Superseded to NN10802)

$

$

Not available

27

Toro NN10725

HHCS-M6 X 10MM

$

$

Not available

28

Toro NN10542

Washer
(Superseded to 82-1340)

$

$

Not available

29

Toro NN10726

HHCS-M8 X 10MM

$

$

Not available

Toro NN10727

HHCS-M8 X 16MM

$

$

Not available

30

Toro NN10543

Nut-M8
(Superseded to 82-1350)

$

$

Not available

31

Toro NN10414

Bolt
(Superseded to 59-1080)

$

$

Not available
