32-08B402 (208-4) - Toro Lawn Tractor (1988) WHEELS AND TIRES Parts Diagram

Lawn Tractor

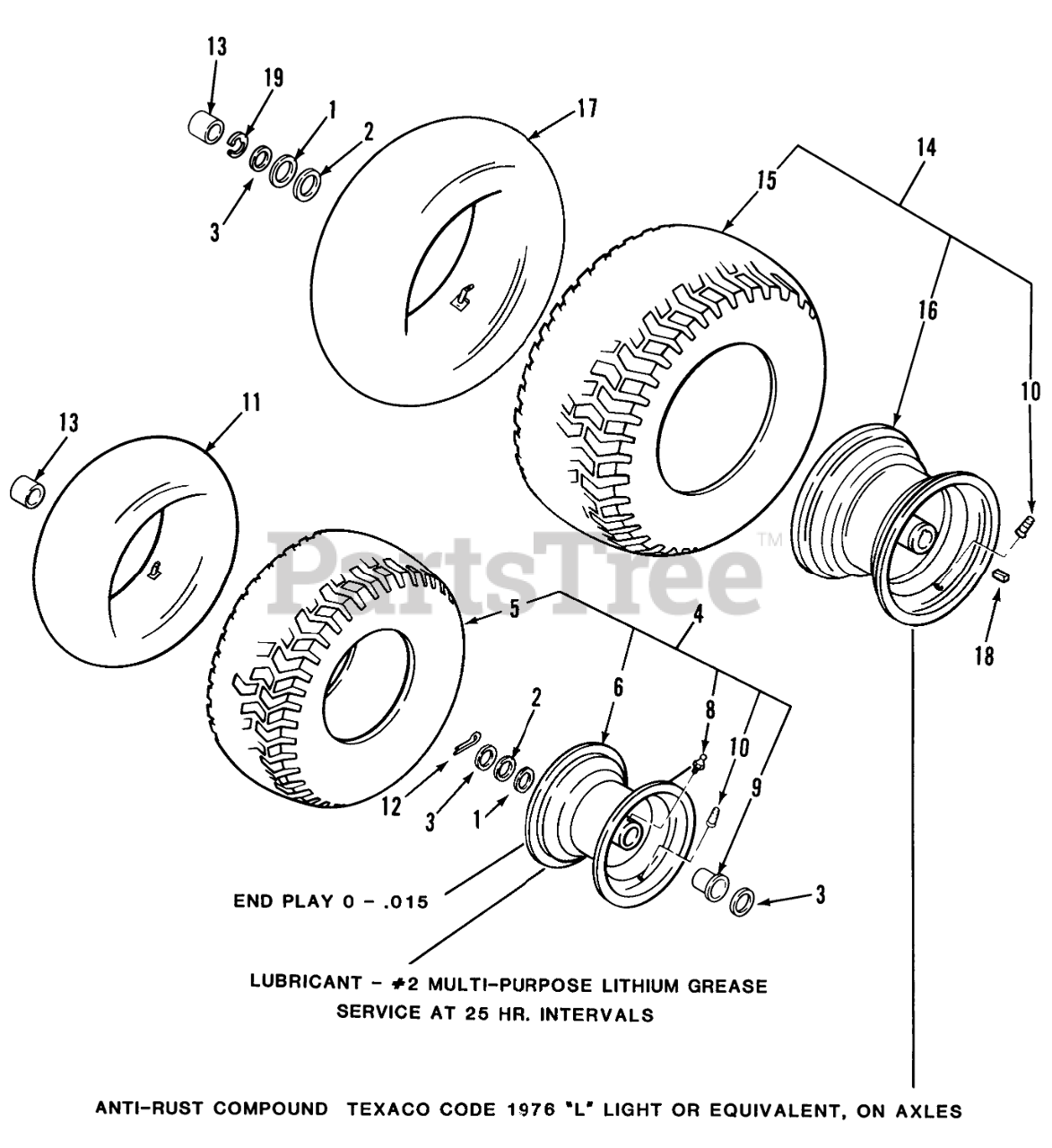

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 16

0

2

Toro 1278

WASHER

$2.99

$

In Stock, Qty 5

0

3

Toro 109262

WASHER-FLAT

$3.49

$

In Stock, only 1 left!

0

4

Toro 113389

Front Wheel and Tire 15 x 5.00-6 (includes items 6, 8, 9 & 10) 208-4, 211-4, 211-5

$

$

Not available

4

Toro 114015

Front Wheel and Tire 15 x 6.00-6 (includes items 6, 8, 9 & 10) 212-6

$

$

Not available

5

Toro 8119

TIRE15 X 6.00-6

$

$

Not available

6

Toro 113390

Front Wheel Assy (includes Wheel w/items 8, 9 & 10) 208-4, 211-4, 211-5

$

$

Not available

6

Toro 114014

Front Wheel Assy (includes Wheel w/items 8, 9 & 10) 212-6

$

$

Not available

8

Toro 109500

ZERK-GREASE

$3.49

$

Usually ships in 3-6 days

0

9

Toro 113342

BUSHING

$9.49

$

In Stock, only 1 left!

0

10

Toro 5108

VALVE

$6.99

$

In Stock, Qty 17

0

11

Toro 100079

TUBE

$

$

Not available

12

Toro 932026

COTTER PIN-4

$0.99

$

In Stock, Qty 13

0

13

Toro 109261

HUB CAP

$

$

Not available

13

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

14

Toro 112294

Rear Wheel and Tire 18 x 8.50-8 211-4

$

$

Not available

14

Toro 112187

Rear Wheel & Tire-212-5

$

$

Not available

15

Toro 8191

TIRE 18 X 8.50 X 8

$236.99

$

Usually ships in 3-6 days

0

15

Toro 105451

TIRE 18 X 9.50-8

$269.99

$

Usually ships in 3-6 days

0

16

Toro 111958

Rear Wheel 211-4
(Superseded to 112188)

$

$

Not available

16

Toro 112188

ASSY WHEEL

$

$

Not available

17

Toro 105450

Tube-Inner
(Superseded to 106396)

$41.99

$

Usually ships in 3-6 days

0

18

Toro 1120

SQ KEY

$2.99

$

Usually ships in 3-6 days

0

19

Toro 104636

E Ring
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 14

0
