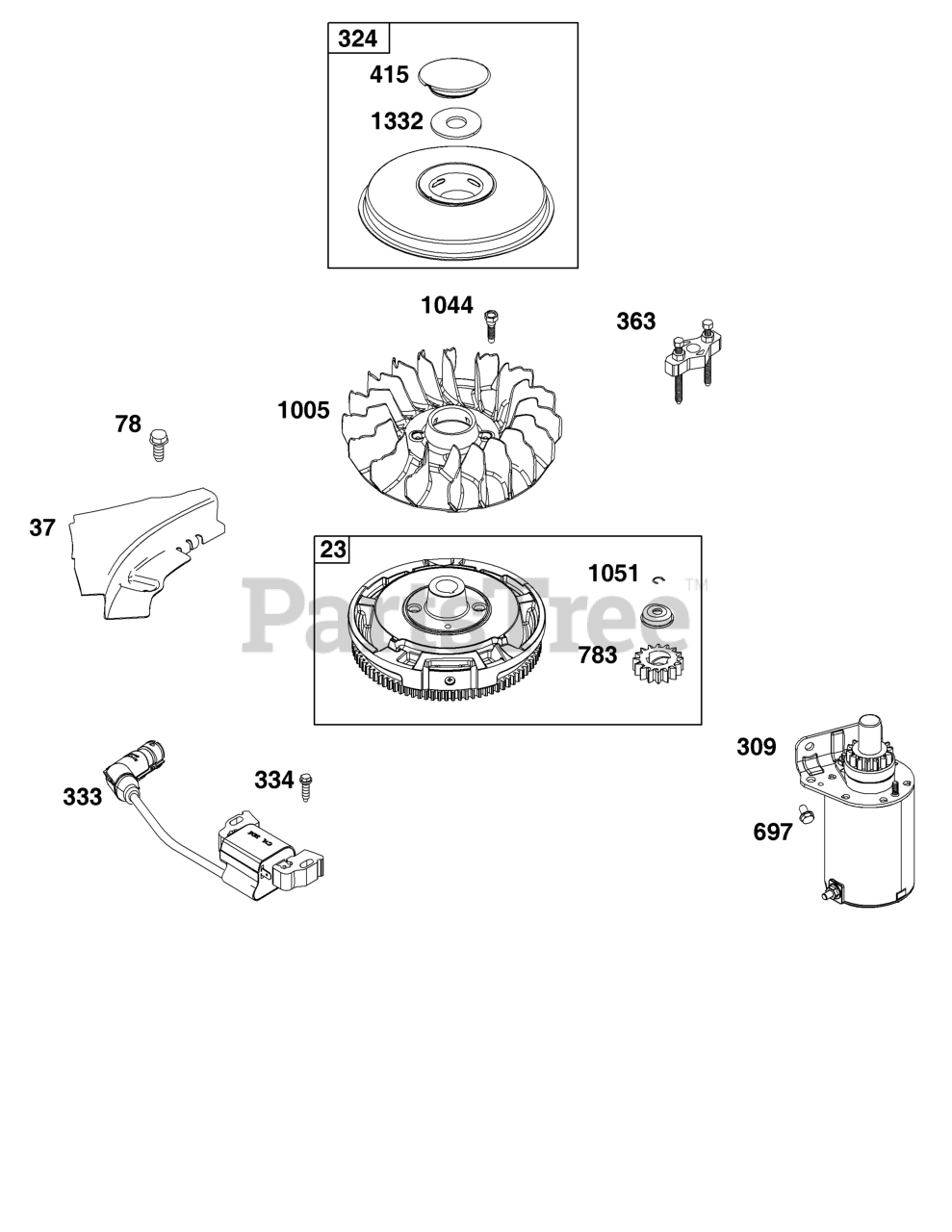

31S977-0019-B1 - Briggs & Stratton Vertical Engine Flywheel, Ignition, and Starter Group Parts Diagram

Vertical Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 591759

FLYWHEEL

$245.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 699882

GUARD, Flywheel

$9.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 691693

SCREW

Note: (Flywheel Guard)

$3.99

$

In Stock, Qty 12

0

309

Briggs & Stratton 593936

MOTOR, Starter

$231.99

$

In Stock, only 2 left!

0

324

Briggs & Stratton 796309

SCREEN/CUP ASSEMBLY

$45.99

$

In Stock, only 2 left!

0

333

Briggs & Stratton 595304

ARMATURE, Magneto

$45.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 3 left!

0

415

Briggs & Stratton 794129

PLUG

$6.99

$

In Stock, only 2 left!

0

697

Briggs & Stratton 791680

SCREW

Note: (Starter Motor) (Drive Cap)

$3.99

$

In Stock, Qty 6

0

783

Briggs & Stratton 593935

GEAR, Pinion

$26.99

$

In Stock, only 1 left!

0

1005

Briggs & Stratton 596832

FAN, Flywheel

$28.99

$

In Stock, Qty 20+

0

1044

Briggs & Stratton 698139

SCREW

Note: (Flywheel)

$5.99

$

In Stock, Qty 7

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1332

Briggs & Stratton 591991

WASHER

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0
