31S877-0001-G1 - Briggs & Stratton Vertical Engine CAMSHAFT,CRANKSHAFT & COUNTER BALANCE, CYLINDER, ENGINE SUMP & BREATHER, LUBRICATION, PISTON, RINGS, CONNECTING ROD Parts Diagram

Vertical Engine

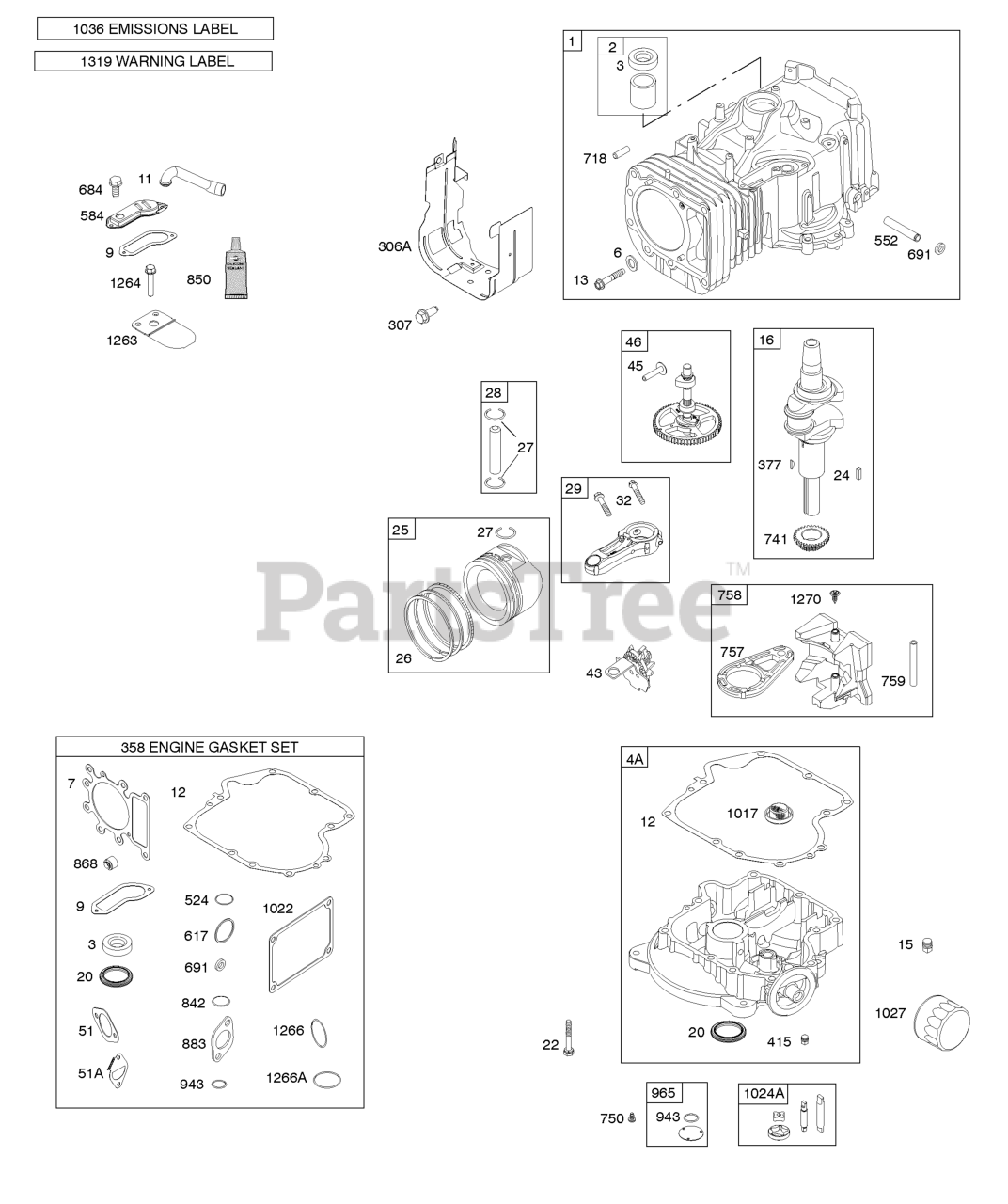

CAMSHAFT,CRANKSHAFT & COUNTER BALANCE, CYLINDER, ENGINE SUMP & BREATHER, LUBRICATION, PISTON, RINGS, CONNECTING ROD Parts Diagram

  • Title

1

Briggs & Stratton 796010

CYLINDER ASSEMBLY

$524.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 797673

KIT, Bushing/Seal

Note: (Magneto Side)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4A

Briggs & Stratton 592849

SUMP, Engine

$250.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 690310

Washer

Note: (Cylinder Head)

$4.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 796584

GASKET, Cylinder Head

$19.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 697109

Gasket-Breather

Note: (Use Liquid Sealant Reference 850)

$7.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 794683

TUBE, Breather

$7.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 697110

GASKET, Crankcase

$7.49

$

In Stock, Qty 20+

0

13

Briggs & Stratton 592244

SCREW

Note: (Cylinder Head) (5/16-18 x 2.69)

$3.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

Note: (Square Socket)

$5.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

Note: (Square Head)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 591763

Crankshaft
(Superseded to 596007)

$451.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

SCREW

Note: (Crankcase Cover/Sump)

$4.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 591757

KEY, Flywheel

$5.49

$

In Stock, only 3 left!

0

25

Briggs & Stratton 796173

Piston Assembly
(Superseded to 594540)

Note: (.020" Oversize) Used Before Code Date 14100600

$139.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 594435

PISTON ASSEMBLY

Note: (Standard) Used After Code Date 14100500

$95.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 594436

PISTON ASSEMBLY

Note: (.020" Oversize) Used After Code Date 14100500

$146.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 796172

Piston Assembly
(Superseded to 594539)

Note: (Standard) Used Before Code Date 14100600

$90.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 594438

RING SET

Note: (.020" Oversize) Used After Code Date 14100500

$64.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 792649

Ring Set

Note: (.020" Oversize) Used Before Code Date 14100600

$

$

Not available

26

Briggs & Stratton 594437

RING SET

Note: (Standard)

$52.99

$

In Stock, Qty 15

0

27

Briggs & Stratton 698469

LOCK, Piston Pin

$4.99

$

In Stock, Qty 13

0

28

Briggs & Stratton 796007

Pin-Piston

Note: (1.97" Long) Used Before Code Date 14100600

$13.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 594439

PIN, Piston

Note: (1.62" Long) Used After Code Date 14100500

$13.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 794571

ROD, Connecting

$78.99

$

In Stock, Qty 10

0

32

Briggs & Stratton 791118

SCREW

Note: (Connecting Rod)

$4.99

$

In Stock, only 4 left!

0

43

Briggs & Stratton 691968

SLINGER, Governor/Oil

$37.99

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690564

TAPPET, Valve

$9.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 793880

CAMSHAFT
(Superseded to 84005207)

$96.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 796081

Gasket-Intake

$3.99

$

In Stock, only 3 left!

0

306A

Briggs & Stratton 794953

Shield-Cylinder

$53.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691693

SCREW

Note: (Cylinder Shield)

$3.99

$

In Stock, Qty 12

0

358

Briggs & Stratton 796187

Gasket Set-Engine

$94.99

$

In Stock, Qty 20+

0

377

Briggs & Stratton 691639

KEY, Woodruff

$4.49

$

In Stock, Qty 5

0

415

Briggs & Stratton 794903

PLUG

Note: (Engine Sump)

$5.49

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 691032

SEAL, O-Ring

$5.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 697144

BUSHING, Governor Crank

$9.49

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 794682

COVER, Breather Passage

Note: (Use with Liquid Sealant Reference 850)

$9.49

$

In Stock, Qty 6

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 19

0

684

Briggs & Stratton 697157

SCREW

Note: (Breather Passage Cover)

$3.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 692407

SEAL, Governor Shaft

$7.99

$

In Stock, Qty 8

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 697128

GEAR, Timing

$20.99

$

In Stock, only 1 left!

0

750

Briggs & Stratton 790832

SCREW

Note: (Oil Pump Cover)

$4.49

$

In Stock, only 2 left!

0

757

Briggs & Stratton 793242

LINK, Counterweight

$20.99

$

In Stock, only 4 left!

0

758

Briggs & Stratton 793763

Counterweight

Note: Used Before Code Date 14100100

$128.99

$

Usually ships in 2-12 days

0

758

Briggs & Stratton 594443

COUNTERWEIGHT

Note: Used After Code Date 14093000

$128.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 697392

PIN, Counterweight

$5.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube) (Special Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

850

Briggs & Stratton 100106

SEALANT, Liquid

Note: (Rocker Cover Gasket and Breather Gasket)

$14.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Oil Pump Cover)

$8.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 499613

COVER, Oil Pump

$13.99

$

In Stock, Qty 10

0

1017

Briggs & Stratton 796981

SCREEN, Oil Pump

Note: (Push In)

$16.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 272475S

GASKET, Rocker Cover

Note: (Use Liquid Sealant Reference 850)

$6.49

$

In Stock, Qty 20+

0

1024A

Briggs & Stratton 794644

SHAFT, Pump

$35.99

$

In Stock, only 1 left!

0

1027

Briggs & Stratton 696854

FILTER, Oil

Note: (Premium)(Yellow)

$13.99

$

In Stock, Qty 20+

0

1027

Briggs & Stratton 798576

FILTER, Oil

Note: (Premium Black)

$17.99

$

In Stock, Qty 20+

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1263

Briggs & Stratton 697124

REED, Breather

$7.49

$

In Stock, Qty 20+

0

1264

Briggs & Stratton 697104

SCREW

Note: (Breather Reed)

$3.99

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, Qty 20+

0

1270

Briggs & Stratton 793243

PLUG, AVS Counterweight

$4.99

$

In Stock, Qty 7

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days
