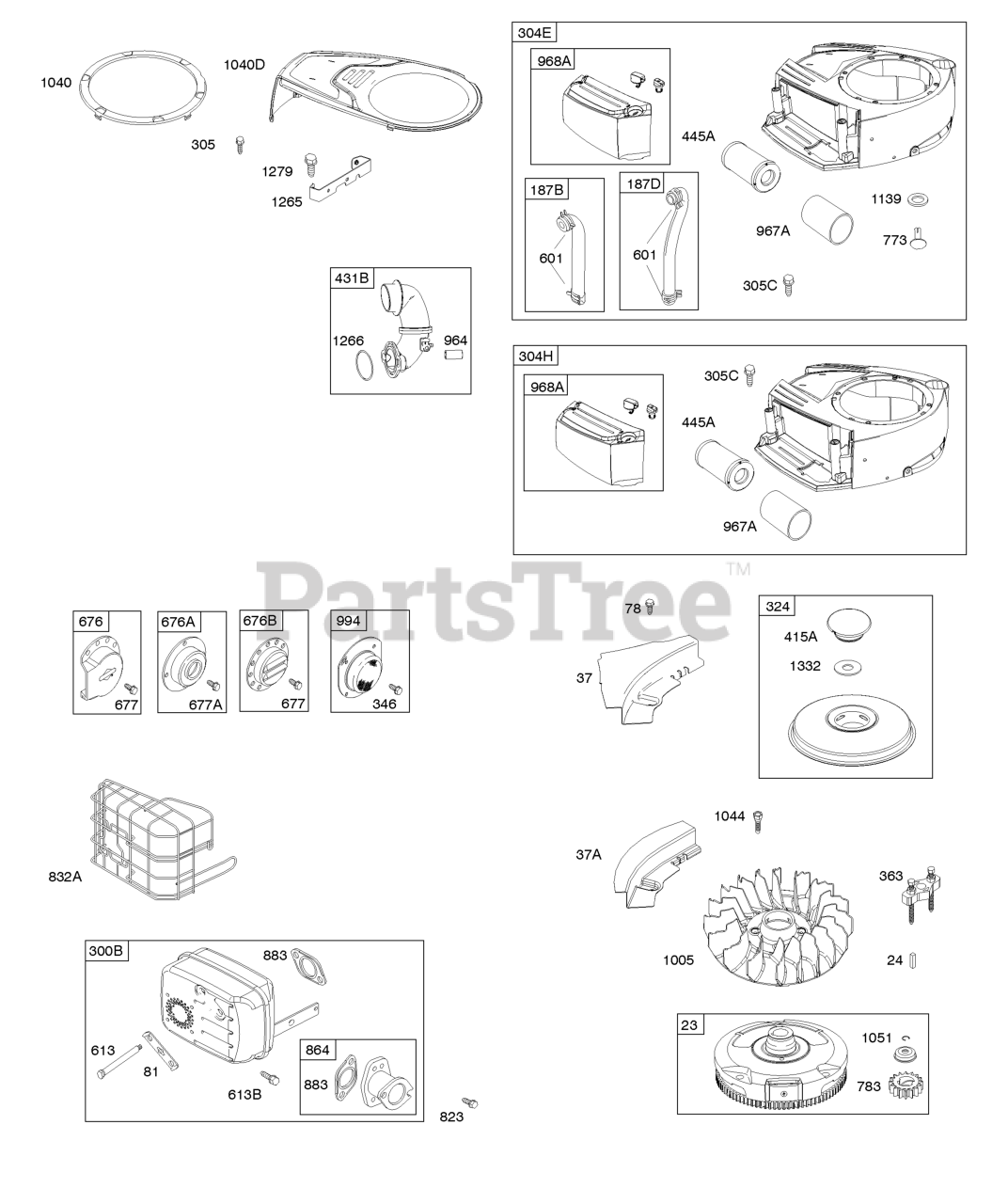

31S777-0003-B1 - Briggs & Stratton Vertical Engine AIR CLEANER, BLOWER HOUSING, EXHAUST SYSTEM, FLYWHEEL, READY START Parts Diagram

Vertical Engine

AIR CLEANER, BLOWER HOUSING, EXHAUST SYSTEM, FLYWHEEL, READY START Parts Diagram

  • Title

23

Briggs & Stratton 591758

Flywheel

$255.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 591757

KEY, Flywheel

$5.49

$

In Stock, only 3 left!

0

37

Briggs & Stratton 697352

GUARD, Flywheel

$10.99

$

In Stock, only 2 left!

0

37A

Briggs & Stratton 699882

Guard-Flywheel

$9.49

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 691693

SCREW

Note: (Flywheel Guard)

$3.99

$

In Stock, Qty 9

0

81

Briggs & Stratton 691178

LOCK, Muffler Screw

$5.49

$

In Stock, Qty 9

0

187B

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(Cut To Required Length)

$24.99

$

Usually ships in 2-12 days

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(Cut To Required Length)

$14.99

$

In Stock, only 1 left!

0

300B

Briggs & Stratton 795997

MUFFLER

$109.99

$

In Stock, only 3 left!

0

304E

Briggs & Stratton 592814

Housing-Blower

Note: (Black-Compatible With Canister Style Filter)

$136.99

$

In Stock, only 2 left!

0

304H

Briggs & Stratton 592813

Housing-Blower
(Superseded to 592814)

Note: (Grey-Compatible With Canister Style Filter)

$136.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 697102

Screw
(Superseded to 596718)

Note: (Blower Housing) (Blower Housing)(Shoulder Bolt)

$3.99

$

In Stock, only 2 left!

0

305C

Briggs & Stratton 799370

SCREW

Note: (Blower Housing) (Blower Housing)(Shoulder Bolt)

$3.99

$

In Stock, only 4 left!

0

324

Briggs & Stratton 796309

Screen/Cup Assembly

$45.99

$

In Stock, only 2 left!

0

346

Briggs & Stratton 794845

SCREW

Note: (Spark Arrestor)

$3.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

Note: (71.5mm (2.81in.))

$23.99

$

In Stock, only 1 left!

0

415A

Briggs & Stratton 794129

PLUG

$6.99

$

In Stock, only 2 left!

0

431B

Briggs & Stratton 799043

Elbow-Intake

$28.99

$

In Stock, Qty 5

0

445A

Briggs & Stratton 793569

Filter-A/C Cartridge

Note: (Canister)

$19.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 691416

SCREW

Note: (Muffler)

$11.99

$

In Stock, Qty 14

0

613B

Briggs & Stratton 690297

Screw

Note: (Muffler) (1/4-20 x 0.62" Long)

$3.49

$

In Stock, Qty 12

0

676

Briggs & Stratton 795036

DEFLECTOR, Muffler

$8.49

$

In Stock, only 1 left!

0

676A

Briggs & Stratton 396903

DEFLECTOR, Muffler

$14.99

$

Usually ships in 2-12 days

0

676B

Briggs & Stratton 795038

Deflector-Muffler

$15.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 794845

SCREW

Note: (Muffler Deflector)

$3.99

$

Usually ships in 2-12 days

0

677A

Briggs & Stratton 690661

SCREW

Note: (Muffler Deflector)

$3.49

$

In Stock, Qty 8

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, only 3 left!

0

783

Briggs & Stratton 593935

GEAR, Pinion

$26.99

$

In Stock, only 1 left!

0

823

Briggs & Stratton 698941

SCREW

Note: (Muffler Adapter)

$6.99

$

In Stock, only 3 left!

0

832A

Briggs & Stratton 595029

Guard-Muffler
(Superseded to 597456)

$65.99

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 796002

ADAPTER, Muffler

Note: (2 1/4" Long)

$43.99

$

In Stock, Qty 6

0

883

Briggs & Stratton 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

964

Briggs & Stratton 799159

CAP, Connector

$8.49

$

In Stock, only 1 left!

0

967A

Briggs & Stratton 793685

Filter-Pre Cleaner

$4.99

$

In Stock, Qty 14

0

968A

Briggs & Stratton 591649

Cover-Air Cleaner
(Superseded to 591648)

Note: (Grey-Compatible With Canister Style Filter)

$55.99

$

In Stock, Qty 12

0

968A

Briggs & Stratton 591648

Cover-Air Cleaner

Note: (Black-Compatible With Canister Style Filter)

$55.99

$

In Stock, Qty 12

0

994

Briggs & Stratton 794945

ARRESTOR, Spark

$53.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 796084

Fan-Flywheel

$28.99

$

In Stock, Qty 20+

0

1040

Briggs & Stratton 698368

PLATE, Trim

$14.99

$

In Stock, only 1 left!

0

1040D

Briggs & Stratton 798568

Plate-Trim

$43.99

$

Usually ships in 2-12 days

0

1044

Briggs & Stratton 698139

SCREW

Note: (Flywheel)

$5.99

$

In Stock, Qty 7

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.49

$

Usually ships in 2-12 days

0

1265

Briggs & Stratton 794151

Support-Blower Housing

$10.99

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1279

Briggs & Stratton 691108

SCREW

Note: (Blower Housing Support)

$3.49

$

In Stock, Qty 20+

0

1332

Briggs & Stratton 591991

Washer

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0
