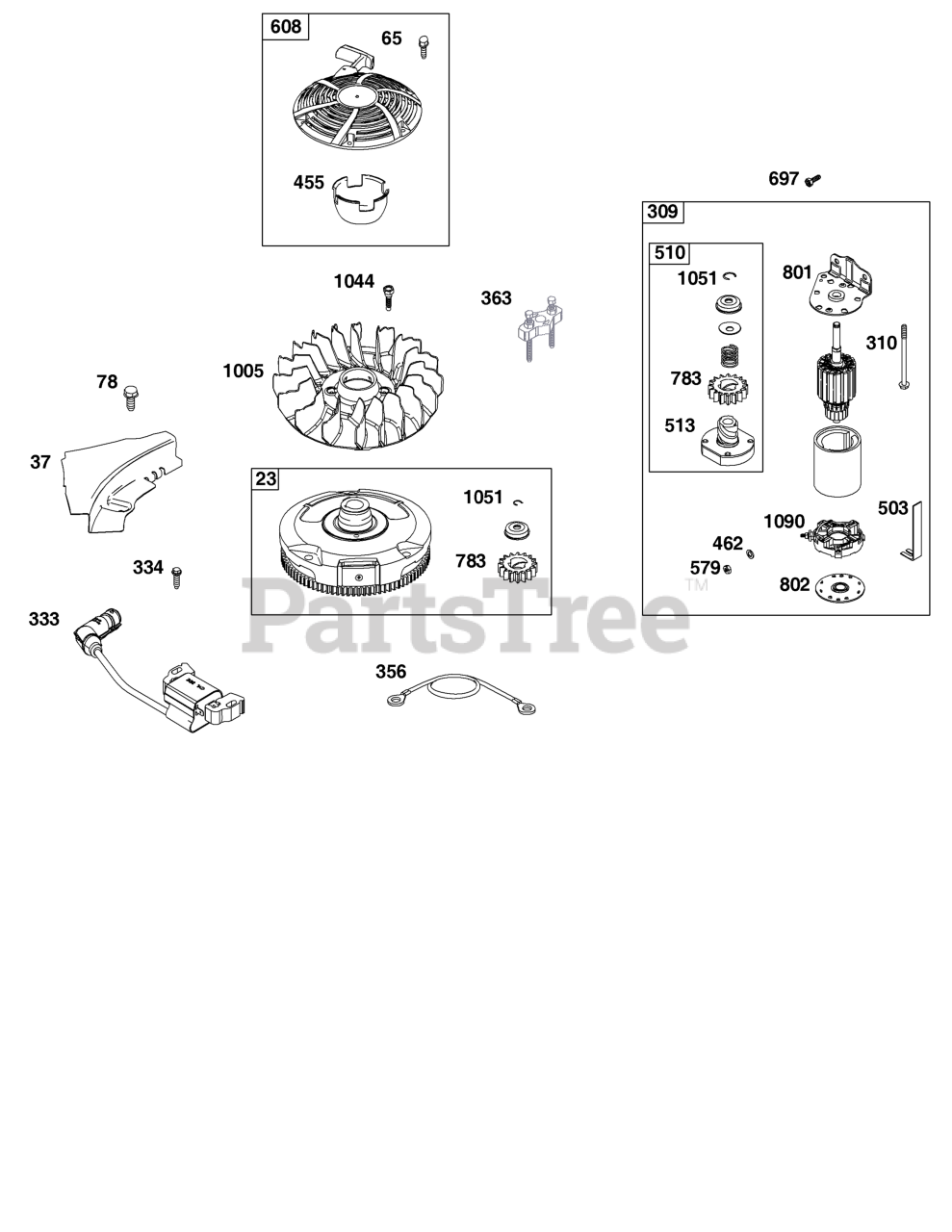

31R977-0060-G1 - Briggs & Stratton Vertical Engine Flywheel, Ignition, and Starter Group Parts Diagram

Vertical Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 591760

FLYWHEEL

$255.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 697352

GUARD, Flywheel

$10.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 690940

Screw (Dipstick Tube)

Note: (Rewind Starter)

$3.99

$

In Stock, Qty 14

0

78

Briggs & Stratton 691693

SCREW

Note: (Flywheel Guard)

$3.99

$

In Stock, Qty 12

0

309

Briggs & Stratton 593934

MOTOR, Starter

$131.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

333

Briggs & Stratton 595304

ARMATURE, Magneto

$45.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 697089

WIRE, Stop

$11.99

$

Usually ships in 2-12 days

0

363

PULLER, Flywheel

Note: (Part information located in Service Parts and Tools Group.)

$

$

Not available

455

Briggs & Stratton 796615

CUP, Flywheel

$16.99

$

Usually ships in 2-12 days

0

462

Briggs & Stratton 691261

WASHER

Note: (Starter Cable)

$3.99

$

In Stock, only 2 left!

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 693699

DRIVE, Starter
(Superseded to 593934)

$131.99

$

In Stock, Qty 20+

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 4 left!

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 591606

STARTER, Rewind

$95.99

$

In Stock, Qty 20+

0

697

Briggs & Stratton 791680

SCREW

Note: (Starter Motor) (Drive Cap)

$3.99

$

In Stock, Qty 6

0

783

Briggs & Stratton 593935

GEAR, Pinion

$26.99

$

In Stock, only 1 left!

0

801

Briggs & Stratton 691283

CAP, Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 796083

FAN, Flywheel
(Superseded to 796201)

$29.99

$

In Stock, Qty 20+

0

1044

Briggs & Stratton 698139

SCREW

Note: (Flywheel)

$5.99

$

In Stock, Qty 7

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0
