31R977-0054-G1 - Briggs & Stratton Vertical Engine Controls Group Parts Diagram

Vertical Engine

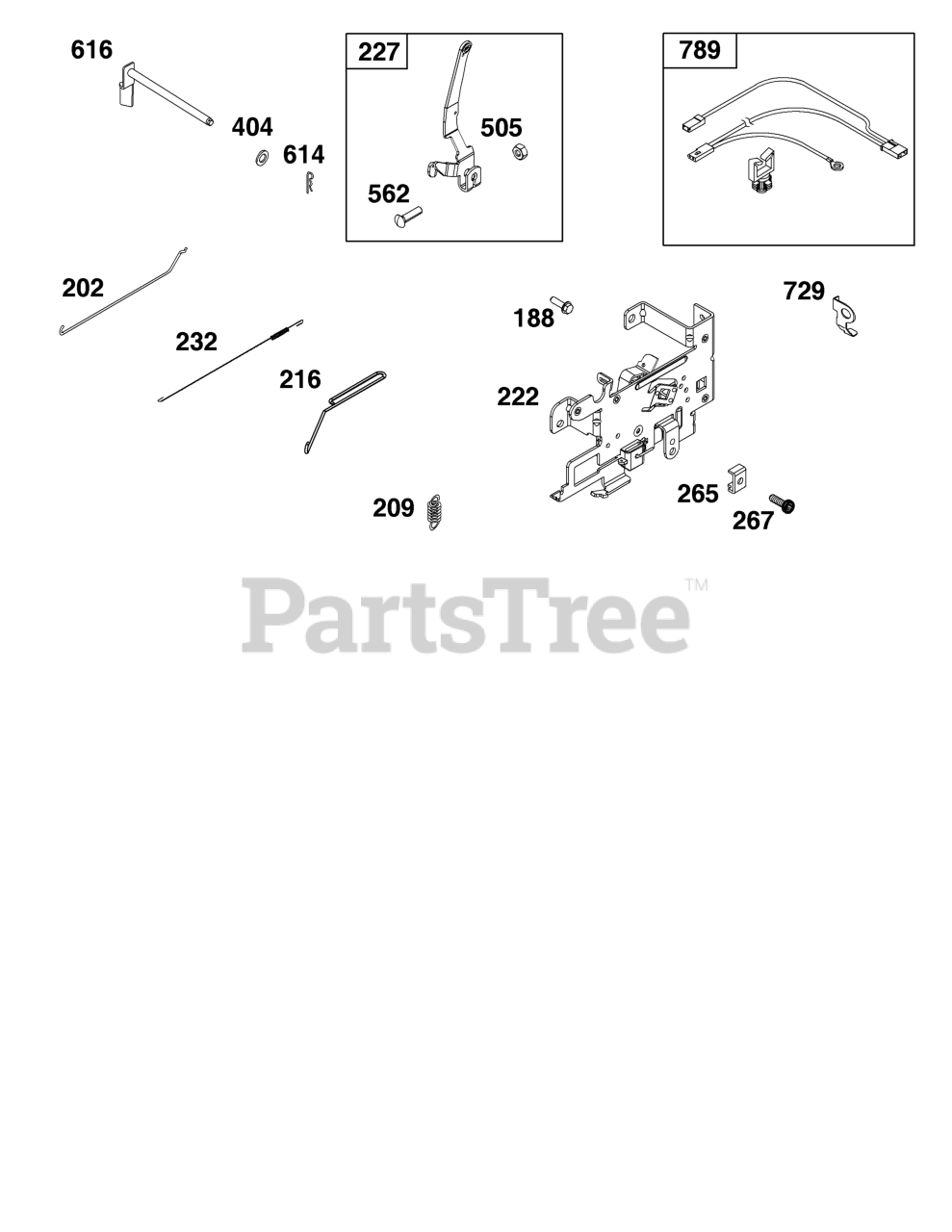

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 697104

SCREW

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$9.49

$

In Stock, Qty 17

0

209

Briggs & Stratton 792813

SPRING, Governor

$6.99

$

In Stock, only 3 left!

0

216

Briggs & Stratton 691840

LINK, Choke

$8.99

$

In Stock, Qty 20+

0

222

Briggs & Stratton 597325

BRACKET, Control

$45.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 691374

LEVER, Governor Control

$26.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$11.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 794904

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 691691

WASHER

$3.99

$

In Stock, Qty 5

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$13.99

$

In Stock, only 2 left!

0

729

Briggs & Stratton 691224

CLIP, Wire

$4.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 692037

HARNESS, Wiring

$35.99

$

In Stock, only 1 left!

0
