31R977-0028-G1 - Briggs & Stratton Vertical Engine CONTROLS, ALTERNATOR, WIRE ASSY, ELECTRIC STARTER, GOVERNOR SPRING, IGNITION Parts Diagram

Vertical Engine

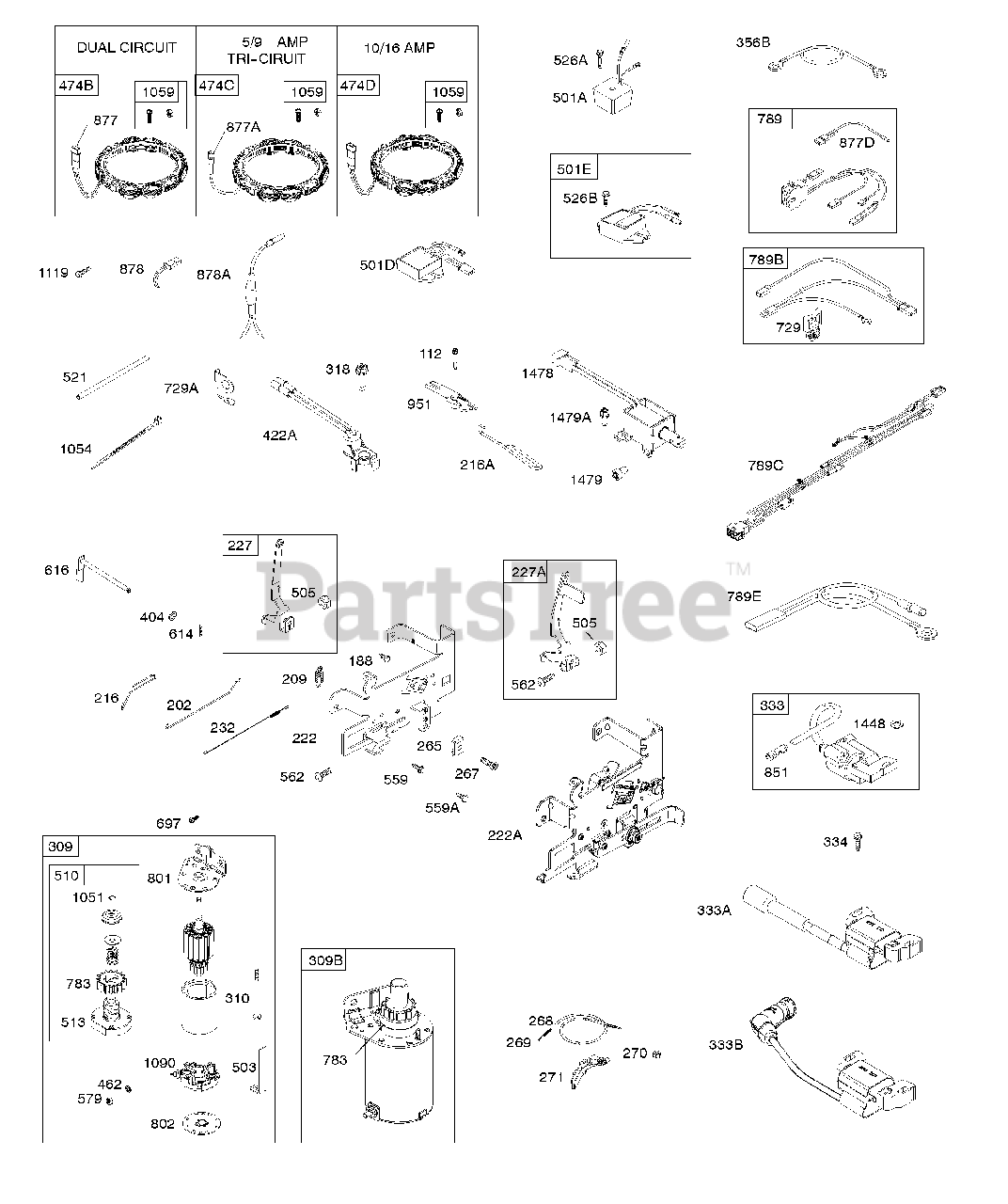

CONTROLS, ALTERNATOR, WIRE ASSY, ELECTRIC STARTER, GOVERNOR SPRING, IGNITION Parts Diagram

  • Title

112

Briggs & Stratton 593040

SCREW

Note: (Choke Lever)

$3.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 12

0

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$9.49

$

In Stock, Qty 17

0

209

Briggs & Stratton 792602

SPRING, Governor

Note: (Red)

$3.49

$

In Stock, only 2 left!

0

216

Briggs & Stratton 691840

LINK, Choke

$8.99

$

In Stock, Qty 20+

0

216A

Briggs & Stratton 593043

LINK, Choke

$9.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

LEVER, Governor Control

$26.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$11.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 794904

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 593934

MOTOR, Starter

$131.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor) (#10-24x4.4" Long)

$4.49

$

In Stock, Qty 7

0

318

Briggs & Stratton 594384

SCREW

Note: (Mounting Bracket)

$5.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 799650

Armature-Magneto
(Superseded to 595304)

Note: Used Before Code Date 16081000

$45.99

$

In Stock, Qty 20+

0

333A

Briggs & Stratton 594626

ARMATURE, Magneto

Note: Used After Code Date 16080900 Used Before Code Date 16100100

$52.99

$

In Stock, Qty 20+

0

333B

Briggs & Stratton 595304

ARMATURE, Magneto

Note: (EMC Compliant) Used After Code Date 16093000

$45.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356B

Briggs & Stratton 697089

WIRE, Stop

$11.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

422A

Briggs & Stratton 593056

SWITCH, Snap

$25.99

$

Usually ships in 2-12 days

0

462

Briggs & Stratton 691261

WASHER

Note: (Starter Cable)

$3.99

$

In Stock, only 3 left!

0

474C

Briggs & Stratton 592829

ALTERNATOR

Note: (5 or 9 Amp. Tri Circuit, Regulated)

$102.99

$

Usually ships in 2-12 days

0

501A

Briggs & Stratton 794360

REGULATOR

Note: (5/9 Amp.)

$64.99

$

In Stock, only 2 left!

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

510

Briggs & Stratton 693699

DRIVE, Starter
(Superseded to 593934)

$131.99

$

In Stock, Qty 20+

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 3 left!

0

521

Briggs & Stratton 690581

Shield-Cable

$12.99

$

Usually ships in 2-12 days

0

526A

Briggs & Stratton 697088

SCREW

Note: (Regulator)

$4.99

$

Usually ships in 2-12 days

0

526B

Briggs & Stratton 697348

SCREW

Note: (Regulator)

$3.99

$

Usually ships in 2-12 days

0

559

Briggs & Stratton 697561

Screw

Note: (Remote Choke Stop) (Length .375 Inches)

$3.99

$

In Stock, only 1 left!

0

559A

Briggs & Stratton 693675

Screw

Note: (Remote Choke Stop) (Length .419 Inches)

$3.99

$

In Stock, only 1 left!

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$13.99

$

In Stock, only 2 left!

0

697

Briggs & Stratton 791680

SCREW

Note: (Starter Motor) (Drive Cap)

$3.99

$

In Stock, Qty 6

0

729

Briggs & Stratton 691335

Clip-Wire

Note: (Wire Saddle)

$4.99

$

Usually ships in 2-12 days

0

729A

Briggs & Stratton 691224

CLIP, Wire

Note: (Aluminum Coated Steel)

$4.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 593935

GEAR, Pinion

$26.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 692037

HARNESS, Wiring

$35.99

$

In Stock, only 1 left!

0

801

Briggs & Stratton 691283

CAP, Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

Note: (Dual Circuit)

$20.99

$

In Stock, only 1 left!

0

877A

Briggs & Stratton 393814

Wire/Connector-Alternator

$18.99

$

In Stock, only 2 left!

0

878

Briggs & Stratton 398661

Harness-Alternator

Note: (Dual Circuit)

$34.99

$

Usually ships in 2-12 days

0

878A

Briggs & Stratton 691955

Harness-Alternator

Note: (Tri Circuit)

$69.99

$

Usually ships in 2-12 days

0

951

Briggs & Stratton 593039

LEVER, Choke

$6.49

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0

1448

Briggs & Stratton 690260

Washer

Note: (Magneto Armature)

$8.99

$

In Stock, only 2 left!

0

1478

Briggs & Stratton 593037

SOLENOID, Choke

$39.99

$

Usually ships in 2-12 days

0

1479

Briggs & Stratton 593041

SCREW

Note: (Choke Solenoid)

$4.49

$

Usually ships in 2-12 days

0

1479A

Briggs & Stratton 593042

SCREW

Note: (Choke Solenoid)

$4.49

$

Usually ships in 2-12 days

0
