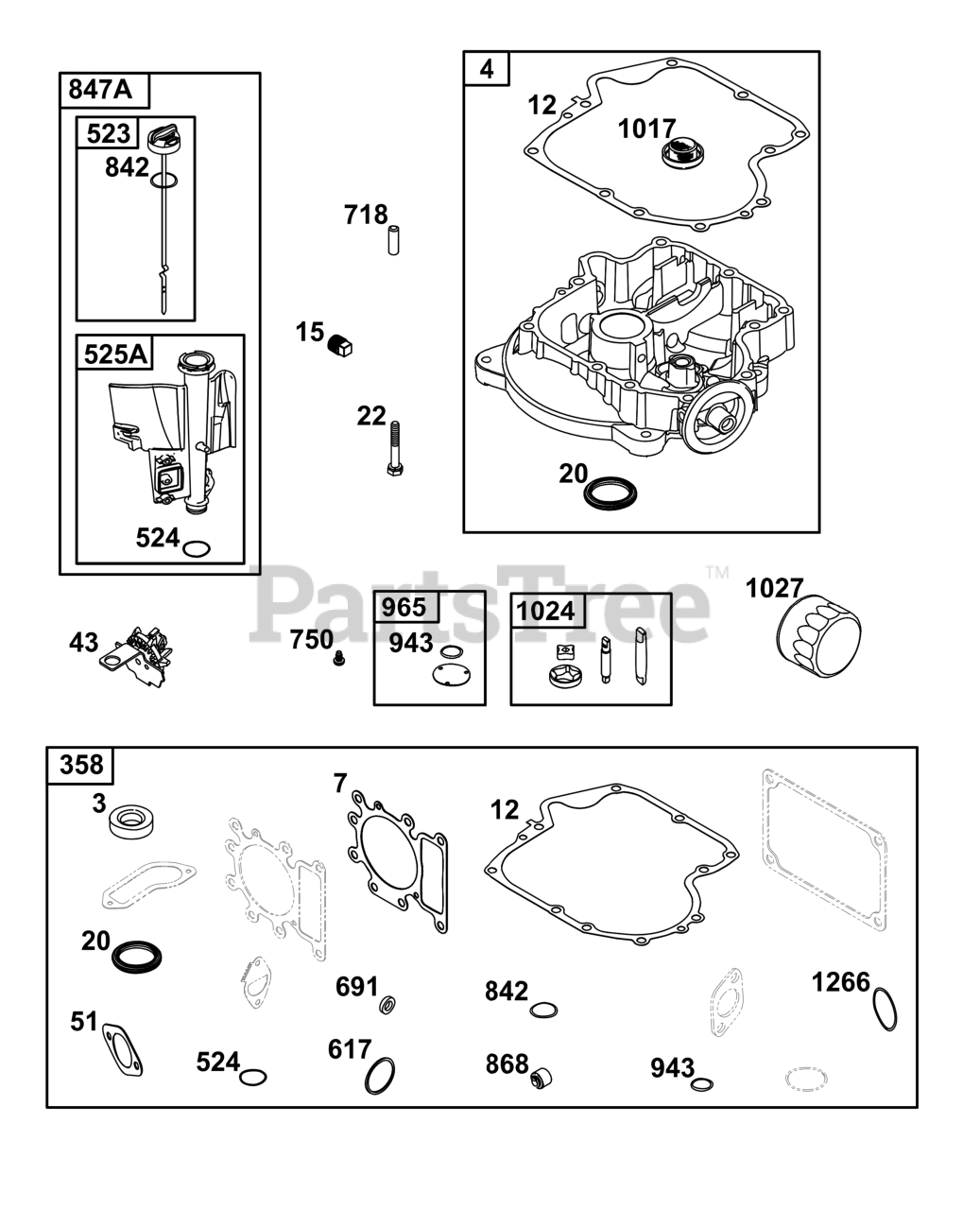

31R977-0014-G1 - Briggs & Stratton Vertical Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Vertical Engine

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

4

Briggs & Stratton 592849

SUMP, Engine

$250.99

$

In Stock, only 2 left!

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

Briggs & Stratton 697110

GASKET, Crankcase

$7.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 795387

SEAL, Oil

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

SCREW

Note: (Crankcase Cover/Sump)

$4.99

$

In Stock, only 4 left!

0

43

Briggs & Stratton 691968

SLINGER, Governor/Oil

$37.99

$

In Stock, Qty 20+

0

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

523

Briggs & Stratton 699908

DIPSTICK

$14.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 691032

SEAL, O-Ring

Note: (Dipstick Tube)

$5.99

$

In Stock, only 1 left!

0

525A

Briggs & Stratton 697184

TUBE, Dipstick

$26.99

$

In Stock, only 1 left!

0

617

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

691

SEAL, Governor Shaft

Note: (Part information located in Cylinder Group.)

$

$

Not available

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

750

Briggs & Stratton 790832

SCREW

Note: (Oil Pump Cover)

$4.49

$

In Stock, only 2 left!

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Cap)

$5.49

$

In Stock, Qty 20+

0

847A

Briggs & Stratton 790442

DIPSTICK/TUBE ASSEMBLY

$55.99

$

In Stock, only 1 left!

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

943

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Oil Pump Cover)

$8.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 499613

COVER, Oil Pump

$13.99

$

In Stock, Qty 9

0

1017

Briggs & Stratton 796981

SCREEN, Oil Pump

$16.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 794644

SHAFT, Pump

$35.99

$

In Stock, only 1 left!

0

1027

Briggs & Stratton 492932S

FILTER, Oil

$12.99

$

In Stock, Qty 20+

0

1266

SEAL, O-Ring

Note: (Part information located in Blower Housing and Air Cleaner Group.)

$

$

Not available
