31R877-0036-B5 - Briggs & Stratton Vertical Engine Cylinder Head Group Parts Diagram

Vertical Engine

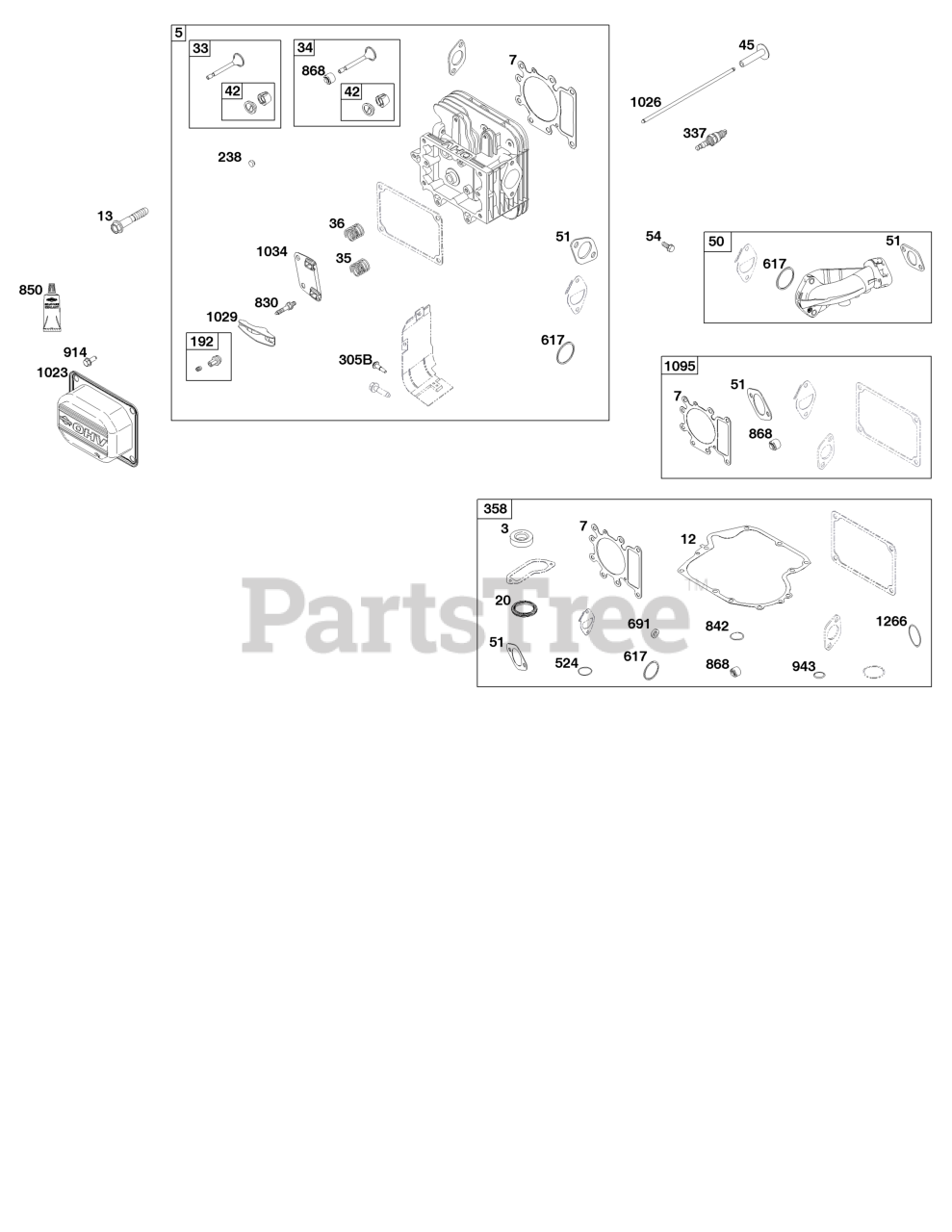

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 796026

HEAD, Cylinder

$226.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 796584

GASKET, Cylinder Head

$19.99

$

In Stock, Qty 20+

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

13

SCREW

Note: (Cylinder Head) (The Service Part is in Development)

$

$

Not available

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

33

Briggs & Stratton 792868

VALVE, Exhaust

$35.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 791935

VALVE, Intake

$27.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 691279

SPRING, Valve

Note: (Intake)

$5.99

$

In Stock, Qty 10

0

36

Briggs & Stratton 691279

SPRING, Valve

Note: (Exhaust)

$5.99

$

In Stock, Qty 10

0

42

Briggs & Stratton 499586

KEEPER, Valve

$7.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690564

TAPPET, Valve

$9.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 592842

MANIFOLD, Intake

$43.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

54

Briggs & Stratton 691148

SCREW

Note: (Intake Manifold)

$3.99

$

In Stock, only 2 left!

0

192

Briggs & Stratton 691986

ADJUSTER, Rocker Arm

$11.99

$

In Stock, Qty 20+

0

238

Briggs & Stratton 691843

CAP, Valve

$8.49

$

In Stock, Qty 20+

0

305B

SCREW

Note: (Part information located in Blower Housing and Air Cleaner Group.)

$

$

Not available

337

Briggs & Stratton 491055S

PLUG, Spark

$4.99

$

In Stock, Qty 20+

0

358

Briggs & Stratton 796181

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$94.99

$

Usually ships in 2-12 days

0

524

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 18

0

691

SEAL, Governor Shaft

Note: (Part information located in Cylinder Group.)

$

$

Not available

830

Briggs & Stratton 691095

STUD, Rocker Arm

$7.99

$

In Stock, Qty 20+

0

842

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

850

SEALANT, Liquid

Note: (Part information located in Cylinder Group.)

$

$

Not available

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

914

Briggs & Stratton 691108

SCREW

Note: (Rocker Cover)

$3.49

$

In Stock, Qty 20+

0

943

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

1023

Briggs & Stratton 797421

COVER, Rocker

$35.99

$

In Stock, only 2 left!

0

1026

Briggs & Stratton 692003

ROD, Push

$7.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 691751

ARM, Rocker

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 690822

GUIDE, Push Rod

$9.49

$

In Stock, only 2 left!

0

1095

Briggs & Stratton 796189

GASKET SET, Valve

Note: (Service Kits may include extra parts not specific to this engine.)

$64.99

$

Usually ships in 2-12 days

0

1266

SEAL, O-Ring

Note: (Part information located in Blower Housing and Air Cleaner Group.)

$

$

Not available
