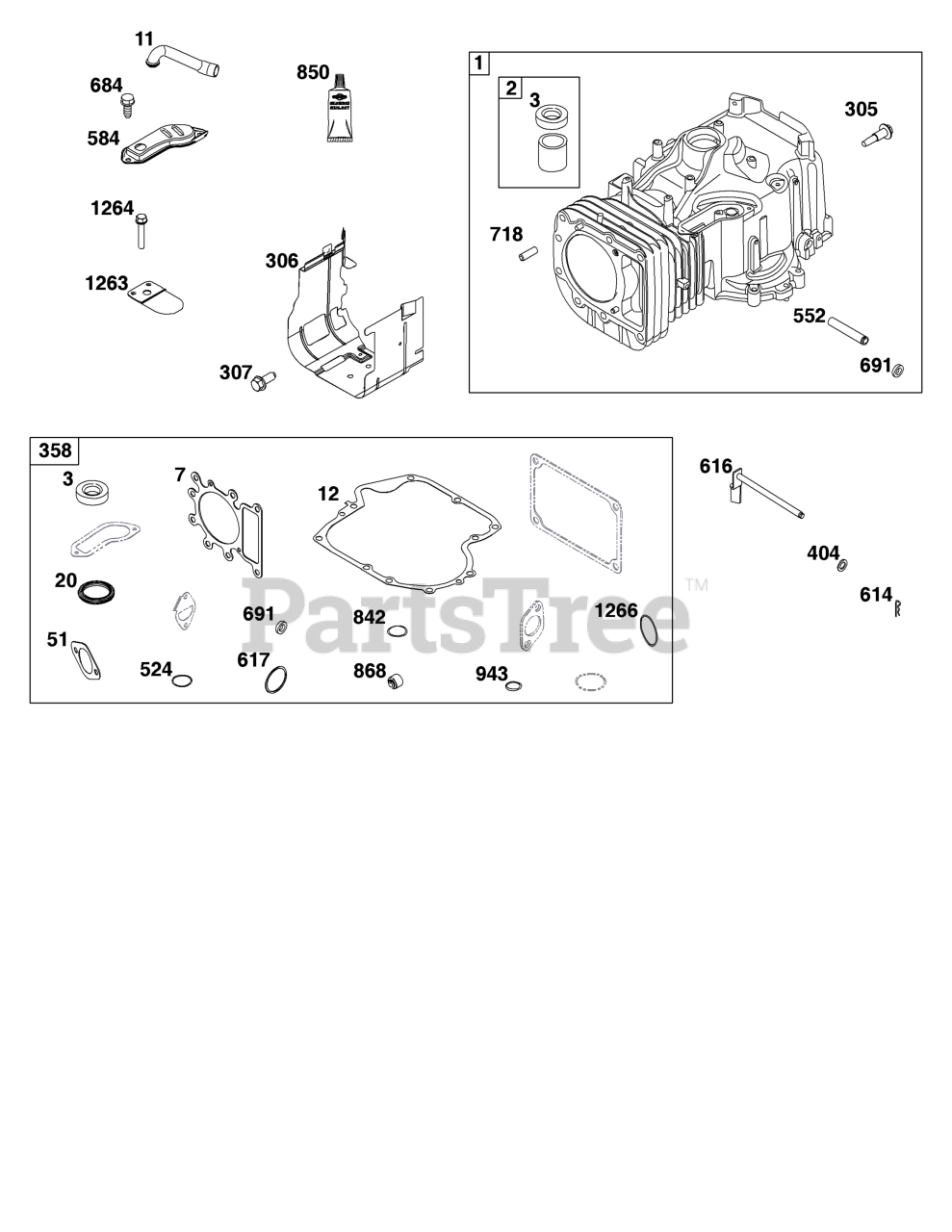

31R877-0035-B5 - Briggs & Stratton Vertical Engine Cylinder Group Parts Diagram

Vertical Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 796010

CYLINDER ASSEMBLY

$524.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 797673

KIT, Bushing/Seal

Note: (Magneto Side)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

11

Briggs & Stratton 794683

TUBE, Breather

$7.99

$

In Stock, Qty 20+

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

305

Briggs & Stratton 592244

SCREW

Note: (Part information located in Blower Housing and Air Cleaner Group.)

$3.49

$

In Stock, Qty 20+

0

306

Briggs & Stratton 592777

SHIELD, Cylinder

$52.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691693

SCREW

Note: (Cylinder Shield)

$3.99

$

In Stock, Qty 12

0

358

Briggs & Stratton 796181

GASKET SET, Engine

Note: (Service Kits may include extra parts not specific to this engine.)

$94.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

524

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

552

Briggs & Stratton 697144

BUSHING, Governor Crank

$9.49

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 794682

COVER, Breather Passage

$9.49

$

In Stock, Qty 6

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$13.99

$

In Stock, only 2 left!

0

617

SEAL, O-Ring

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

684

Briggs & Stratton 697157

SCREW

Note: (Breather Passage Cover)

$3.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 692407

SEAL, Governor Shaft

$7.99

$

In Stock, Qty 8

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

842

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

850

Briggs & Stratton 100106

SEALANT, Liquid

$14.99

$

In Stock, Qty 20+

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

943

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

1263

Briggs & Stratton 697124

REED, Breather

$7.49

$

In Stock, Qty 20+

0

1264

Briggs & Stratton 697104

SCREW

Note: (Breather Reed)

$3.99

$

Usually ships in 2-12 days

0

1266

SEAL, O-Ring

Note: (Part information located in Blower Housing and Air Cleaner Group.)

$

$

Not available
