31R777-0011-B5 - Briggs & Stratton Vertical Engine Crankshaft Group Parts Diagram

Vertical Engine

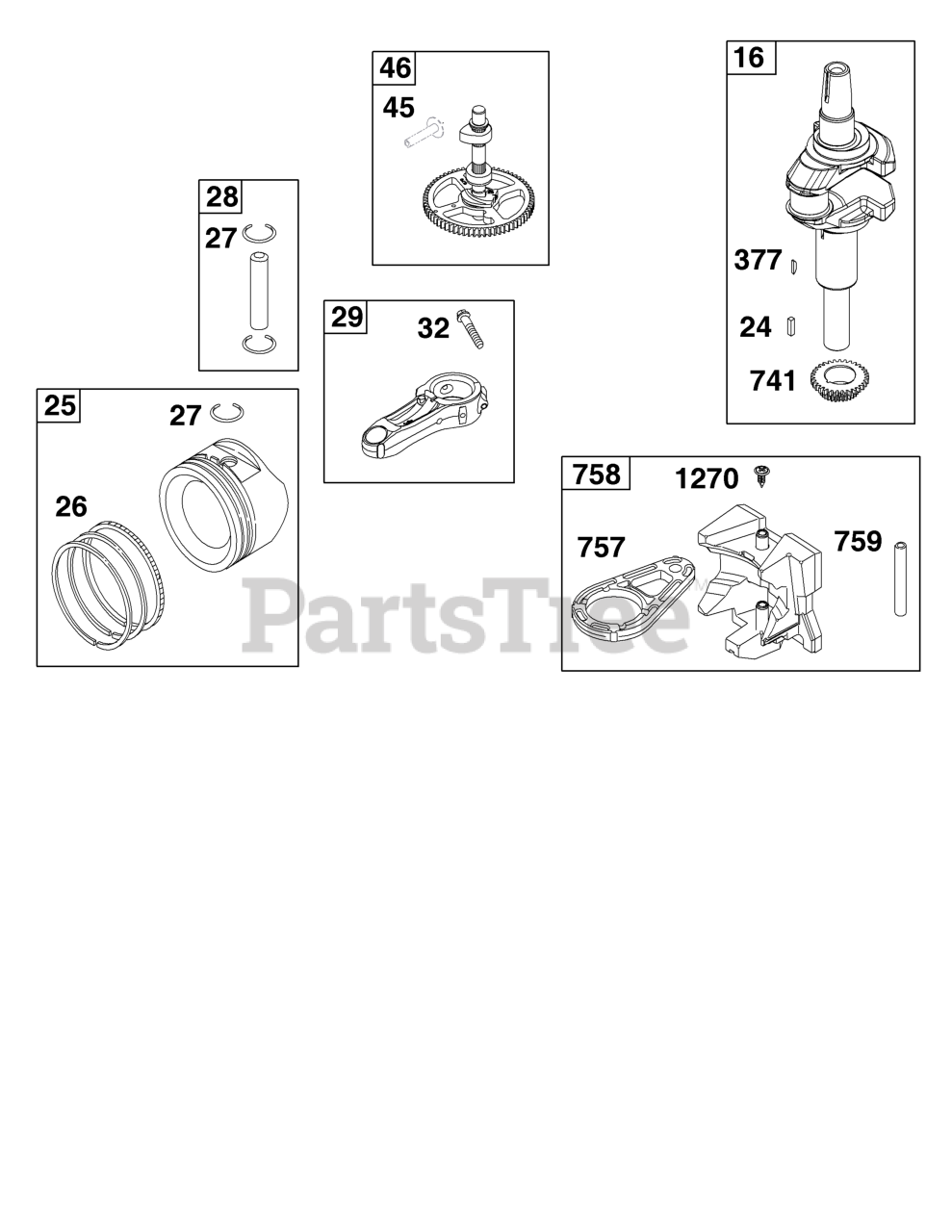

Crankshaft Group Parts Diagram

  • Title

16

Briggs & Stratton 596007

CRANKSHAFT

$451.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 591757

KEY, Flywheel

$5.49

$

In Stock, only 3 left!

0

25

Briggs & Stratton 594539

PISTON ASSEMBLY

$90.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 594540

PISTON ASSEMBLY

Note: (.020" Oversize)

$139.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 594437

SET, Ring

$52.99

$

In Stock, Qty 15

0

26

Briggs & Stratton 594438

SET, Ring

Note: (.020" Oversize)

$64.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 698469

LOCK, Piston Pin

$4.99

$

In Stock, Qty 13

0

28

Briggs & Stratton 594439

PIN, Piston

$13.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 794571

ROD, Connecting

$78.99

$

In Stock, Qty 10

0

32

Briggs & Stratton 791118

SCREW

Note: (Connecting Rod)

$4.99

$

In Stock, only 4 left!

0

45

TAPPET, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

46

Briggs & Stratton 597221

CAMSHAFT

$139.99

$

In Stock, only 2 left!

0

377

Briggs & Stratton 691639

KEY, Timing

$4.49

$

In Stock, Qty 5

0

741

Briggs & Stratton 697128

GEAR, Timing

$20.99

$

In Stock, only 1 left!

0

757

Briggs & Stratton 793242

LINK, Counterweight

$20.99

$

In Stock, only 4 left!

0

758

Briggs & Stratton 594443

COUNTERWEIGHT

$128.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 697392

PIN, Counterweight

$5.99

$

Usually ships in 2-12 days

0

1270

Briggs & Stratton 793243

PLUG, AVS Counterweight

$4.99

$

In Stock, Qty 7

0
