31Q507-0017-H5 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

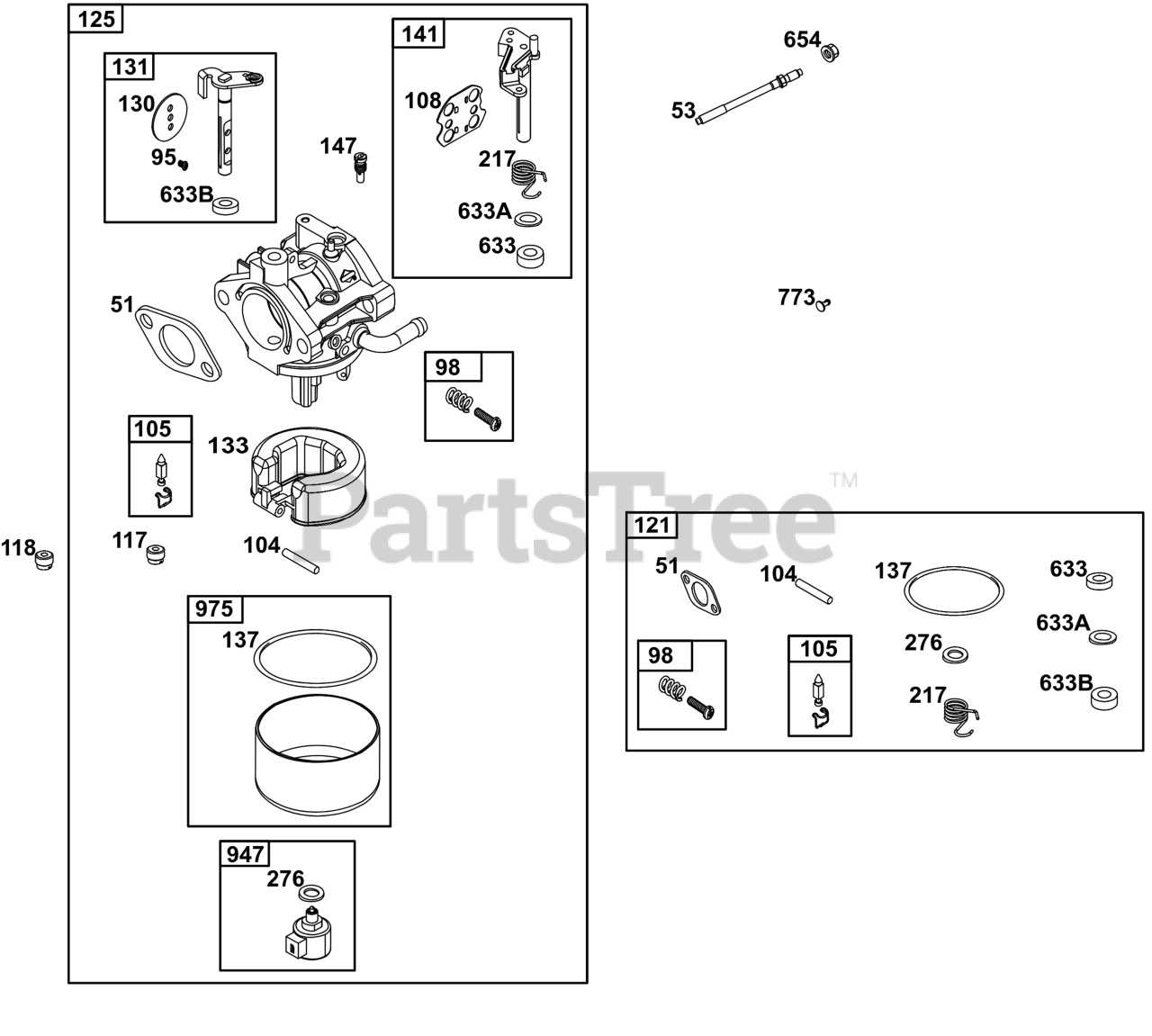

Carburetor Group Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET-INTAKE

Note: (Part information located in Cylinder Head Group.)

$3.49

$

In Stock, Qty 20+

0

53

Briggs & Stratton 591260

STUD

Note: (Carburetor)

$8.49

$

In Stock, only 4 left!

0

95

Briggs & Stratton 593897

SCREW

Note: (Throttle Valve)

$6.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 847139

KIT, Idle Speed

$5.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 594860

PIN, Float Hinge

$3.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 594868

VALVE, Float Needle

$20.99

$

In Stock, Qty 7

0

108

Briggs & Stratton 594863

VALVE, Choke

$4.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 597458

JET, Main

Note: (Standard)

$16.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 595070

JET, Main

Note: (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 594886

KIT, Carburetor Overhaul

Note: (Service Kits can include parts not for this engine.)

$40.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 594593

CARBURETOR

$143.99

$

In Stock, Qty 20+

0

130

Briggs & Stratton 594857

VALVE, Throttle

$5.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 594855

KIT, Throttle Shaft

$14.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 594859

FLOAT, Carburetor

$33.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 594861

GASKET, Float Bowl

$4.99

$

In Stock, only 1 left!

0

141

Briggs & Stratton 594862

KIT, Choke Shaft

$10.99

$

In Stock, only 1 left!

0

147

Briggs & Stratton 594870

JET, Pilot

$18.99

$

Usually ships in 2-12 days

0

217

Briggs & Stratton 594864

SPRING, Choke Return

$8.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 846640

WASHER, Sealing

$4.49

$

In Stock, Qty 8

0

633

Briggs & Stratton 594866

SEAL, Choke/Throttle Shaft

$4.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 594865

SEAL, Choke/Throttle Shaft

$6.99

$

In Stock, only 1 left!

0

633B

Briggs & Stratton 797629

SEAL, Choke/Throttle Shaft

$4.49

$

In Stock, only 1 left!

0

654

Briggs & Stratton 690958

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 3 left!

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, only 3 left!

0

947

Briggs & Stratton 846639

SOLENOID, Fuel

$81.99

$

In Stock, Qty 20+

0

975

Briggs & Stratton 594867

BOWL, Float

$43.99

$

In Stock, only 1 left!

0
