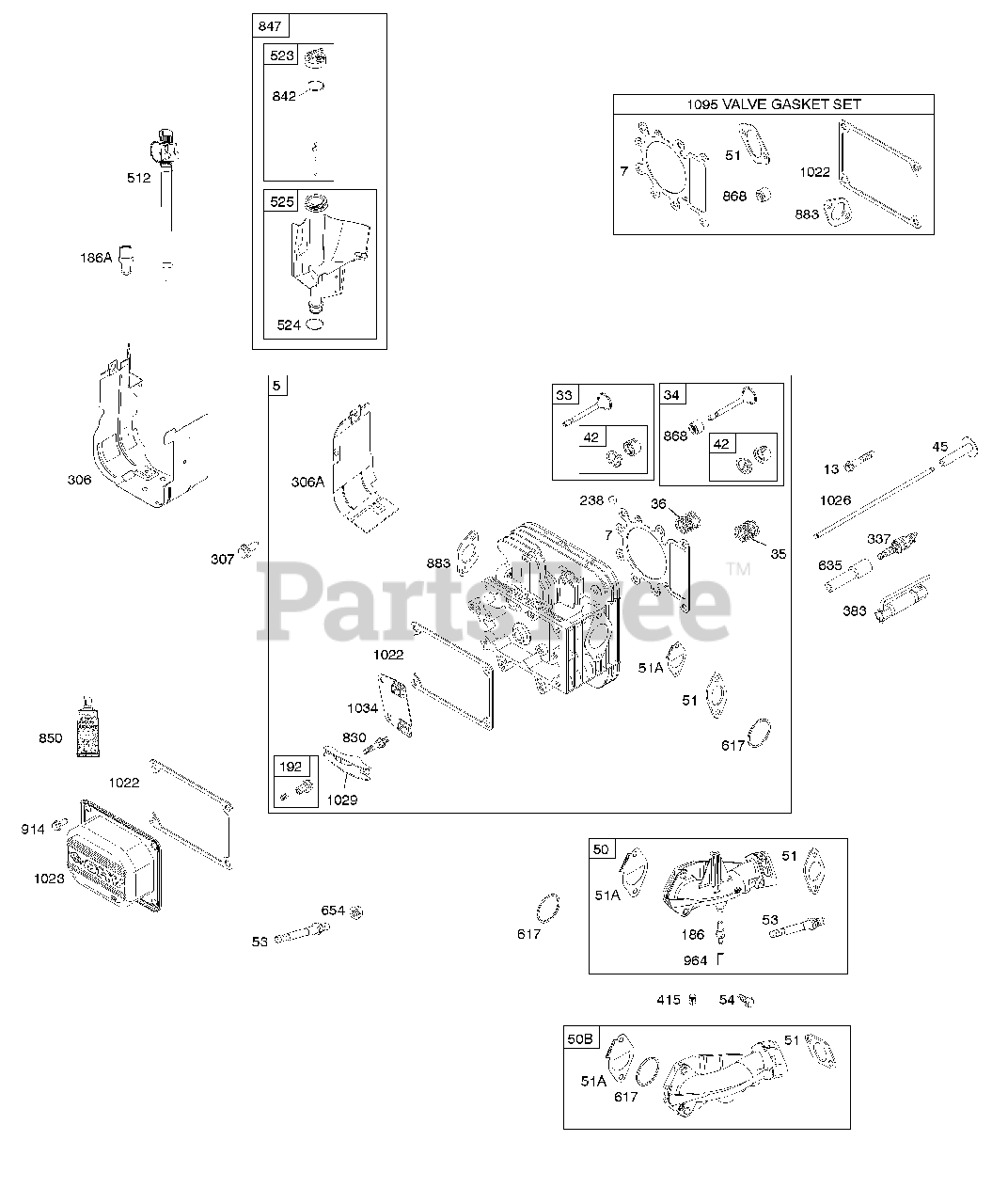

31N707-0132-B1 - Briggs & Stratton Vertical Engine Cylinder Head, Gasket Set - Valve, Oil Fill, Valves Parts Diagram

Vertical Engine

Cylinder Head, Gasket Set - Valve, Oil Fill, Valves Parts Diagram

  • Title

5

Briggs & Stratton 796026

HEAD, Cylinder

$226.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 796584

GASKET, Cylinder Head

$19.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 690360

SCREW
(Superseded to 84001963)

Note: (Cylinder Head) Used Before Code Date 07011000

$3.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 592244

SCREW

Note: (Cylinder Head) (5/16-18 x 2.69) Used After Code Date 07010900

$3.49

$

In Stock, Qty 20+

0

33

Briggs & Stratton 792868

VALVE, Exhaust

$35.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 791935

VALVE, Intake

$27.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 691279

SPRING, Valve

Note: (Intake)

$5.99

$

In Stock, Qty 10

0

36

Briggs & Stratton 691279

SPRING, Valve

Note: (Exhaust)

$5.99

$

In Stock, Qty 10

0

42

Briggs & Stratton 499586

KEEPER, Valve

$7.49

$

In Stock, Qty 18

0

45

Briggs & Stratton 690564

TAPPET, Valve

$9.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 591248

Manifold-Intake

$51.99

$

Usually ships in 2-12 days

0

50B

Briggs & Stratton 592842

MANIFOLD, Intake

$43.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 796081

Gasket-Intake

$3.99

$

In Stock, only 4 left!

0

53

Briggs & Stratton 591260

STUD

Note: (Carburetor) Used After Code Date 11121800

$8.49

$

In Stock, only 4 left!

0

53

Briggs & Stratton 690227

Stud

Note: (Carburetor) Used Before Code Date 11121900

$7.99

$

In Stock, Qty 6

0

54

Briggs & Stratton 691148

SCREW

Note: (Intake Manifold)

$3.99

$

In Stock, only 2 left!

0

186

Briggs & Stratton 794873

Connector-Hose

$22.99

$

Usually ships in 2-12 days

0

186A

Briggs & Stratton 796532

CONNECTOR, Hose

$10.99

$

In Stock, only 2 left!

0

192

Briggs & Stratton 691986

ADJUSTER, Rocker Arm

$11.99

$

In Stock, Qty 18

0

238

Briggs & Stratton 691843

CAP, Valve

$8.49

$

In Stock, Qty 20+

0

306

Briggs & Stratton 592777

SHIELD, Cylinder

$52.99

$

Usually ships in 2-12 days

0

306A

Briggs & Stratton 794953

Shield-Cylinder

$53.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691693

SCREW

Note: (Cylinder Shield)

$3.99

$

In Stock, Qty 8

0

337

Briggs & Stratton 691043

PLUG, Spark

$6.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838S

Wrench-Spark Plug

$6.49

$

In Stock, only 4 left!

0

415

Briggs & Stratton 794903

PLUG

$5.49

$

Usually ships in 2-12 days

0

512

Briggs & Stratton 594200

HOSE, Oil Drain

$25.99

$

In Stock, only 1 left!

0

523

Briggs & Stratton 699908

DIPSTICK

$14.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 691032

SEAL, O-Ring

$5.99

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 697184

Tube-Dipstick

$26.99

$

In Stock, only 1 left!

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 17

0

635

Briggs & Stratton 691909

BOOT, Spark Plug

$4.99

$

In Stock, Qty 5

0

654

Briggs & Stratton 690958

NUT

Note: (Carburetor)

$3.49

$

In Stock, only 3 left!

0

830

Briggs & Stratton 691095

STUD, Rocker Arm

$7.99

$

In Stock, Qty 20+

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 790442

Dipstick/Tube Assembly

$55.99

$

In Stock, only 1 left!

0

850

Briggs & Stratton 100106

SEALANT, Liquid

Note: (Rocker Cover Gasket and Breather Gasket)

$14.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

914

Briggs & Stratton 691108

SCREW

Note: (Rocker Cover)

$3.49

$

In Stock, Qty 20+

0

964

Briggs & Stratton 799159

CAP, Connector

Note: (EVAP)

$8.49

$

In Stock, only 1 left!

0

1022

Briggs & Stratton 272475S

GASKET, Rocker Cover

Note: (After Date Code Use Liquid Sealant Reference 850) Used Before Code Date 07091000

$6.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 797421

COVER, Rocker

$35.99

$

In Stock, only 2 left!

0

1026

Briggs & Stratton 692003

ROD, Push

Note: (Intake)

$7.99

$

In Stock, Qty 20+

0

1026

Briggs & Stratton 692011

ROD, Push

Note: (Exhaust)

$9.49

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 691751

ARM, Rocker

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 690822

GUIDE, Push Rod

$9.49

$

In Stock, only 3 left!

0

1095

Briggs & Stratton 794152

Gasket Set-Valve

$31.99

$

In Stock, Qty 20+

0
