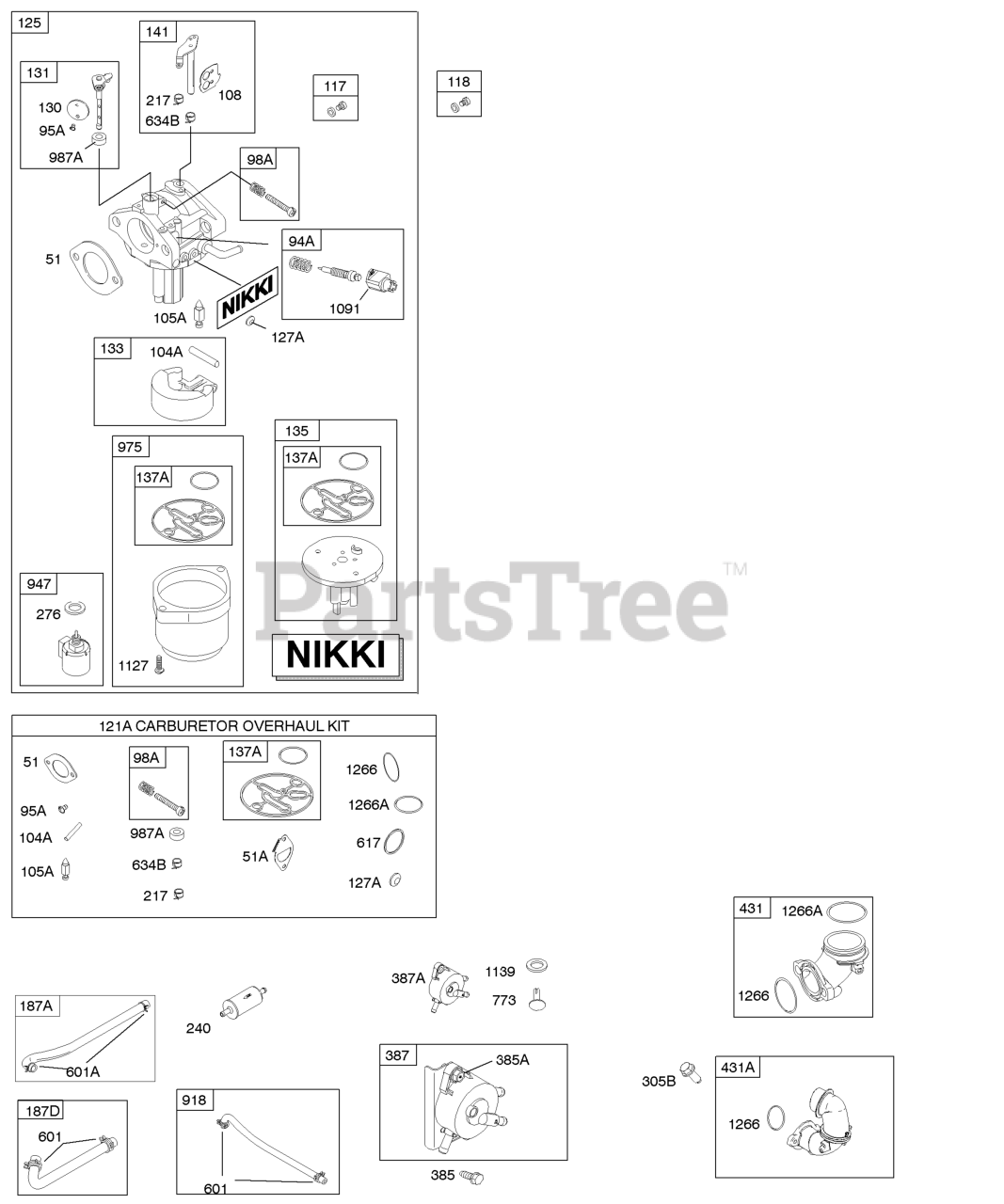

31M977-0114-E1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply, Kit-Carburetor Overhaul Parts Diagram

Vertical Engine

Carburetor, Fuel Supply, Kit-Carburetor Overhaul Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 796081

Gasket-Intake

$3.99

$

In Stock, only 4 left!

0

94A

Briggs & Stratton 793610

KIT, Idle Mixture

$20.99

$

In Stock, only 2 left!

0

95A

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 695408

KIT, Idle Speed

$13.99

$

In Stock, only 1 left!

0

104A

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105A

Briggs & Stratton 696136

VALVE, Float Needle

$15.99

$

In Stock, Qty 20+

0

108

Briggs & Stratton 695419

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 699733

Jet-Main

Note: (Standard) (Standard) Used After Code Date 09012400

$17.99

$

In Stock, only 1 left!

0

117

Briggs & Stratton 792296

JET, Main

Note: (Standard) (Standard) Used Before Code Date 09012500

$17.99

$

In Stock, Qty 9

0

118

Briggs & Stratton 842628

Jet-Main

Note: (High Altitude) Used Before Code Date 09012500

$17.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 843099

Jet-Main

Note: (High Altitude) Used After Code Date 09012400

$15.99

$

In Stock, only 3 left!

0

121A

Briggs & Stratton 796184

KIT, Carburetor Overhaul

$63.99

$

In Stock, Qty 20+

0

125

Briggs & Stratton 792768

Carburetor
(Superseded to 594605)

Note: (Nikki)(Gravity Feed) Used Before Code Date 09012500

$143.99

$

In Stock, Qty 20+

0

125

Briggs & Stratton 796110

Carburetor
(Superseded to 594605)

Note: (Nikki)(Gravity Feed) Used After Code Date 09012400

$143.99

$

In Stock, Qty 20+

0

127A

Briggs & Stratton 690727

PLUG, Welch

$4.49

$

In Stock, only 2 left!

0

130

Briggs & Stratton 792747

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 792765

Kit-Throttle Shaft

$39.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 694914

FLOAT, Carburetor

$28.99

$

In Stock, Qty 8

0

135

Briggs & Stratton 698780

Tube-Fuel Transfer

Note: Used Before Code Date 08092900

$95.99

$

In Stock, only 3 left!

0

135

Briggs & Stratton 792022

Tube-Fuel Transfer

Note: Used After Code Date 08092800

$49.99

$

In Stock, only 1 left!

0

137A

Briggs & Stratton 698781

GASKET, Float Bowl

$9.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 792777

Kit-Choke Shaft

$32.99

$

In Stock, only 1 left!

0

187A

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$24.99

$

In Stock, only 1 left!

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(14 Inches Long)(Cut To Required Length)

$14.99

$

In Stock, only 1 left!

0

217

Briggs & Stratton 695409

SPRING, Choke Return

$8.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 695666

Filter-Fuel
(Superseded to 845125)

Note: (Includes Paper Element With A 30 Micron Rating)

$7.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, Qty 15

0

305B

Briggs & Stratton 795891

SCREW

Note: (Blower Housing) (Blower Housing to Elbow)

$3.99

$

In Stock, Qty 7

0

385

Briggs & Stratton 694476

Screw

Note: (Fuel Pump)

$3.99

$

In Stock, only 1 left!

0

385A

Briggs & Stratton 690297

Screw

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 12

0

387

Briggs & Stratton 697090

Pump-Fuel

Note: Used Before Code Date 08082500

$

$

Not available

387A

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

Note: Used After Code Date 08082400

$27.99

$

In Stock, Qty 20+

0

431

Briggs & Stratton 697122

Elbow-Intake

$24.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 19

0

634B

Briggs & Stratton 698779

Spring/Seal Assembly

$8.99

$

In Stock, only 1 left!

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, only 3 left!

0

918

Briggs & Stratton 791851

Hose-Vacuum

Note: (Cut To Required Length)

$14.99

$

In Stock, only 2 left!

0

947

Briggs & Stratton 699915

Solenoid-Fuel
(Superseded to 596038)

$79.99

$

In Stock, Qty 20+

0

975

Briggs & Stratton 699502

BOWL, Float

$45.99

$

Usually ships in 2-12 days

0

987A

Briggs & Stratton 698777

Seal-Throttle Shaft
(Superseded to 690998)

$7.99

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

In Stock, only 1 left!

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl to Carburetor Body)

$4.49

$

In Stock, Qty 20+

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.49

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, Qty 20+

0
