31M877-0110-E1 - Briggs & Stratton Vertical Engine Camshaft, Crankshaft, Cylinder, Engine Sump, Gasket Set - Engine, Piston, Rings, Connecting Rod Parts Diagram

Vertical Engine

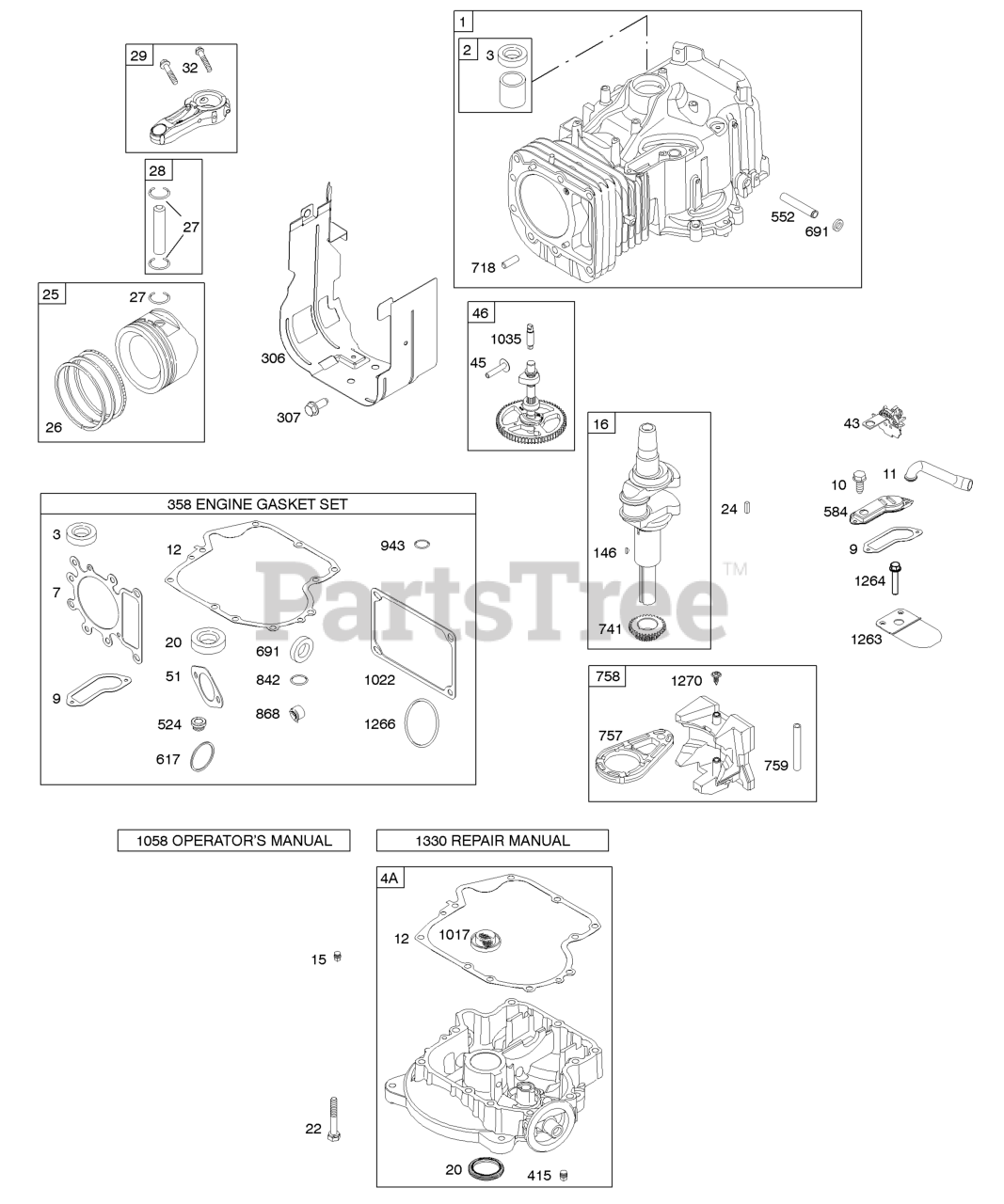

Camshaft, Crankshaft, Cylinder, Engine Sump, Gasket Set - Engine, Piston, Rings, Connecting Rod Parts Diagram

  • Title

1

Briggs & Stratton 697174

Cylinder Assembly
(Superseded to 796010)

$524.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 399265

Kit-Bushing/Seal
(Superseded to 797673)

Note: (Magneto Side)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4A

Briggs & Stratton 697188

Sump-Engine
(Superseded to 592849)

$250.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 699168

Gasket-Cylinder Head
(Superseded to 796584)

$19.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 697109

Gasket-Breather

$7.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 697157

SCREW

Note: (Breather Assembly)

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 697113

Tube-Breather
(Superseded to 794683)

$7.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 697110

GASKET, Crankcase

$7.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

Note: (Square Head)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 697516

Crankshaft
(Superseded to 797585)

$471.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 791892

Seal-Oil
(Superseded to 795387)

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

SCREW

Note: (Crankcase Cover/Sump)

$4.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 793019

Piston Assembly
(Superseded to 594540)

Note: (.020 Oversize)

$139.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 791937

Piston Assembly
(Superseded to 594539)

Note: (Standard)

$90.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 791936

Ring Set
(Superseded to 594437)

Note: (Standard)

$52.99

$

In Stock, Qty 11

0

26

Briggs & Stratton 792649

Ring Set

Note: (.020 Oversize)

$

$

Not available

27

Briggs & Stratton 698469

LOCK, Piston Pin

$4.99

$

In Stock, Qty 13

0

28

Briggs & Stratton 697099

Pin-Piston

$13.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 791632

Rod-Connecting
(Superseded to 794571)

Note: (Standard)

$78.99

$

In Stock, Qty 9

0

32

Briggs & Stratton 791118

SCREW

Note: (Connecting Rod)

$4.99

$

In Stock, only 2 left!

0

43

Briggs & Stratton 691968

SLINGER, Governor/Oil

$37.99

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690564

TAPPET, Valve

$9.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 791942

Camshaft
(Superseded to 793880)

$96.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

306

Briggs & Stratton 697107

Shield-Cylinder

$55.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 9

0

358

Briggs & Stratton 792621

Gasket Set-Engine
(Superseded to 796187)

$94.99

$

In Stock, Qty 20+

0

415

Briggs & Stratton 690283

Plug
(Superseded to 794903)

Note: (Engine Sump)

$5.49

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 691032

SEAL, O-Ring

$5.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 697144

BUSHING, Governor Crank

$9.49

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 697112

Cover-Breather Passage
(Superseded to 794682)

$9.49

$

In Stock, Qty 6

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 17

0

691

Briggs & Stratton 692407

SEAL, Governor Shaft

$7.99

$

In Stock, Qty 8

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 697128

GEAR, Timing

$20.99

$

In Stock, only 1 left!

0

757

Briggs & Stratton 793242

LINK, Counterweight

$20.99

$

In Stock, only 2 left!

0

758

Briggs & Stratton 697134

Counterweight
(Superseded to 793763)

$128.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 697392

PIN, Counterweight

$5.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

SEAL, O-Ring

Note: (Oil Pump Cover)

$8.99

$

In Stock, Qty 20+

0

1017

Briggs & Stratton 690770

Screen-Oil Pump

Note: (Push In)

$

$

Not available

1022

Briggs & Stratton 272475S

GASKET, Rocker Cover

$6.49

$

In Stock, Qty 20+

0

1035

Briggs & Stratton 693784

Shaft-Pump
(Superseded to 794644)

$35.99

$

In Stock, only 1 left!

0

1058

Briggs & Stratton MS3788

Operator's Manual

$

$

Not available

1263

Briggs & Stratton 697124

REED, Breather

$7.49

$

In Stock, Qty 20+

0

1264

Briggs & Stratton 697104

SCREW

Note: (Breather Reed)

$3.99

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1270

Briggs & Stratton 697156

Plug-AVS Counterweight
(Superseded to 793243)

$4.99

$

In Stock, Qty 5

0

1330

Briggs & Stratton 272147

Repair Manual

$59.99

$

In Stock, only 4 left!
