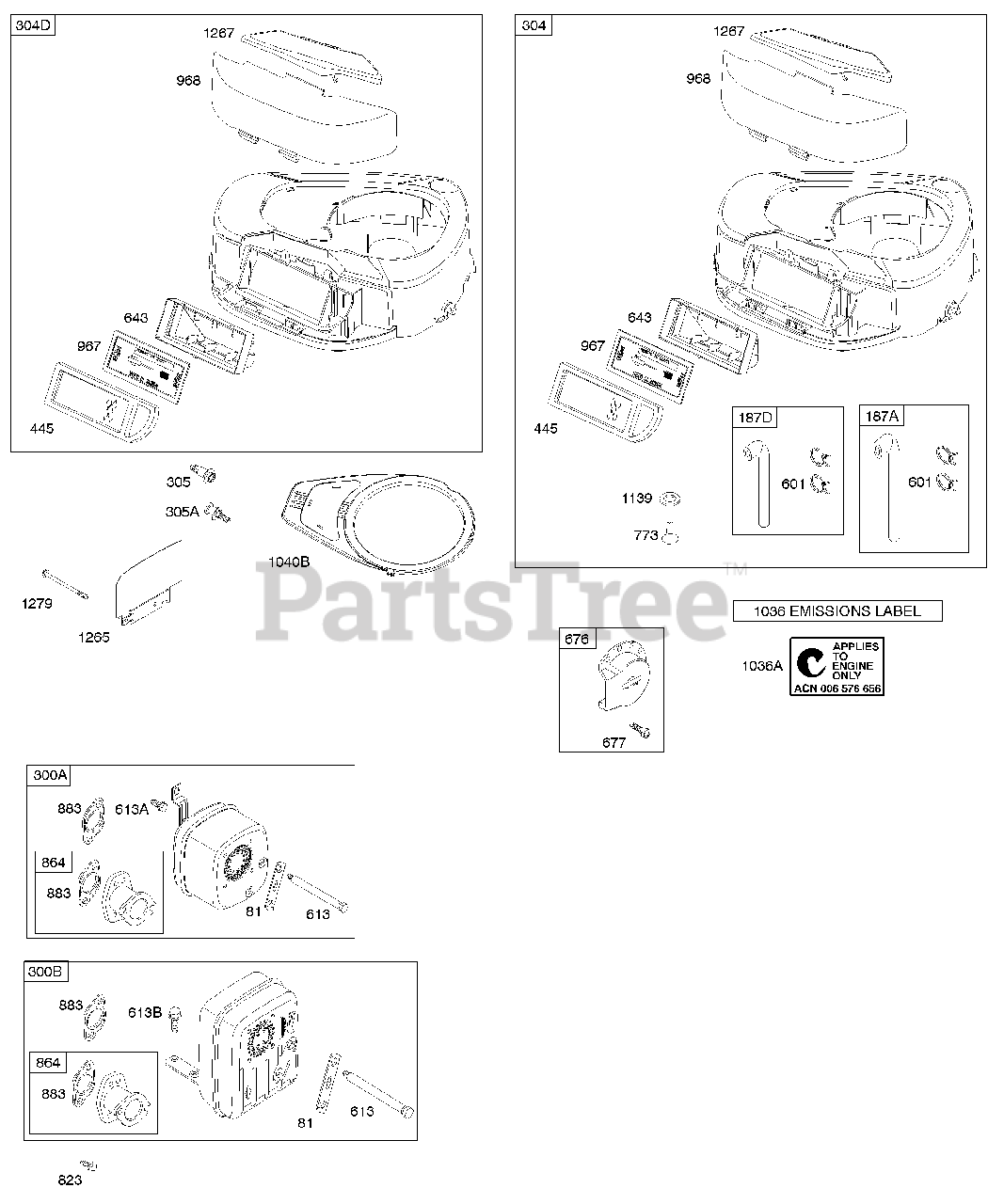

31H777-0114-E1 - Briggs & Stratton Vertical Engine Air Cleaner, Blower Housing, Exhaust System Parts Diagram

Vertical Engine

Air Cleaner, Blower Housing, Exhaust System Parts Diagram

  • Title

81

Briggs & Stratton 691178

LOCK, Muffler Screw

$5.49

$

In Stock, Qty 9

0

187A

Briggs & Stratton 791806

Line-Fuel

Note: (Formed)(21" Long)(Cut to Required Length)

$54.99

$

Usually ships in 2-12 days

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(14 Inches Long)(Cut To Required Length)

$14.99

$

In Stock, only 2 left!

0

300B

Briggs & Stratton 697349

Muffler
(Superseded to 795997)

Note: Used Before Code Date 08042800

$109.99

$

In Stock, only 2 left!

0

300B

Briggs & Stratton 795997

MUFFLER

Note: Used After Code Date 08042700

$109.99

$

In Stock, only 2 left!

0

304

Briggs & Stratton 796416

Housing-Blower
(Superseded to 591907)

Note: (Black) Used After Code Date 04091900

$184.99

$

In Stock, only 1 left!

0

304D

Briggs & Stratton 698804

Housing-Blower

Note: Used Before Code Date 04092000

$126.99

$

Usually ships in 2-12 days

0

304D

Briggs & Stratton 790929

Housing-Blower
(Superseded to 591907)

Note: (Red) Used After Code Date 04091900

$184.99

$

In Stock, only 1 left!

0

305

Briggs & Stratton 697102

Screw
(Superseded to 596718)

Note: (Blower Housing)

$3.99

$

In Stock, only 2 left!

0

305A

Briggs & Stratton 793376

Screw
(Superseded to 799370)

Note: (Blower Housing)

$3.99

$

In Stock, only 4 left!

0

445

Briggs & Stratton 698083

Filter-Air Cleaner Cartridge
(Superseded to 794422)

Note: (Non Washable)

$17.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 691416

SCREW

Note: (Muffler)

$11.99

$

In Stock, Qty 14

0

613A

Briggs & Stratton 691678

SCREW

Note: (Muffler)

$4.99

$

Usually ships in 2-12 days

0

613B

Briggs & Stratton 690297

Screw

Note: (Muffler)

$3.49

$

In Stock, Qty 12

0

643

Briggs & Stratton 698401

Retainer-Air Filter

$12.99

$

In Stock, only 1 left!

0

676

Briggs & Stratton 795036

DEFLECTOR, Muffler

$8.49

$

In Stock, only 1 left!

0

677

Briggs & Stratton 690661

SCREW

Note: (Muffler Deflector)

$3.49

$

In Stock, Qty 9

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, only 3 left!

0

823

Briggs & Stratton 698941

SCREW

Note: (Muffler Adapter)

$6.99

$

In Stock, only 3 left!

0

864

Briggs & Stratton 794661

Adapter-Muffler
(Superseded to 796002)

$43.99

$

In Stock, Qty 6

0

883

Briggs & Stratton 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

967

Briggs & Stratton 697015

Filter-Pre Cleaner

$5.99

$

In Stock, Qty 20+

0

968

Briggs & Stratton 698403

Cover-Air Cleaner

Note: (Black)

$64.99

$

In Stock, only 2 left!

0

1036A

Briggs & Stratton 698979

Label-Emissions

$3.49

$

Usually ships in 2-12 days

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.49

$

Usually ships in 2-12 days

0

1265

Briggs & Stratton 697125

Support-Blower Housing

$7.99

$

Usually ships in 2-12 days

0

1267

Briggs & Stratton 697419

Latch-Blower Housing

Note: (Black) Used After Code Date 04091900

$17.99

$

In Stock, only 1 left!

0

1267

Briggs & Stratton 697419

Latch-Blower Housing

Note: (Black) Used After Code Date 08082400

$17.99

$

In Stock, only 1 left!

0

1267

Briggs & Stratton 697424

Latch-Blower Housing
(Superseded to 697419)

Note: (Red) Used After Code Date 04091900

$17.99

$

In Stock, only 1 left!

0

1267

Briggs & Stratton 697135

Latch-Blower Housing
(Superseded to 697662)

Note: Used Before Code Date 04092000

$21.99

$

Usually ships in 2-12 days

0

1279

Briggs & Stratton 691108

SCREW

Note: (Blower Housing Support)

$3.49

$

In Stock, Qty 20+

0
