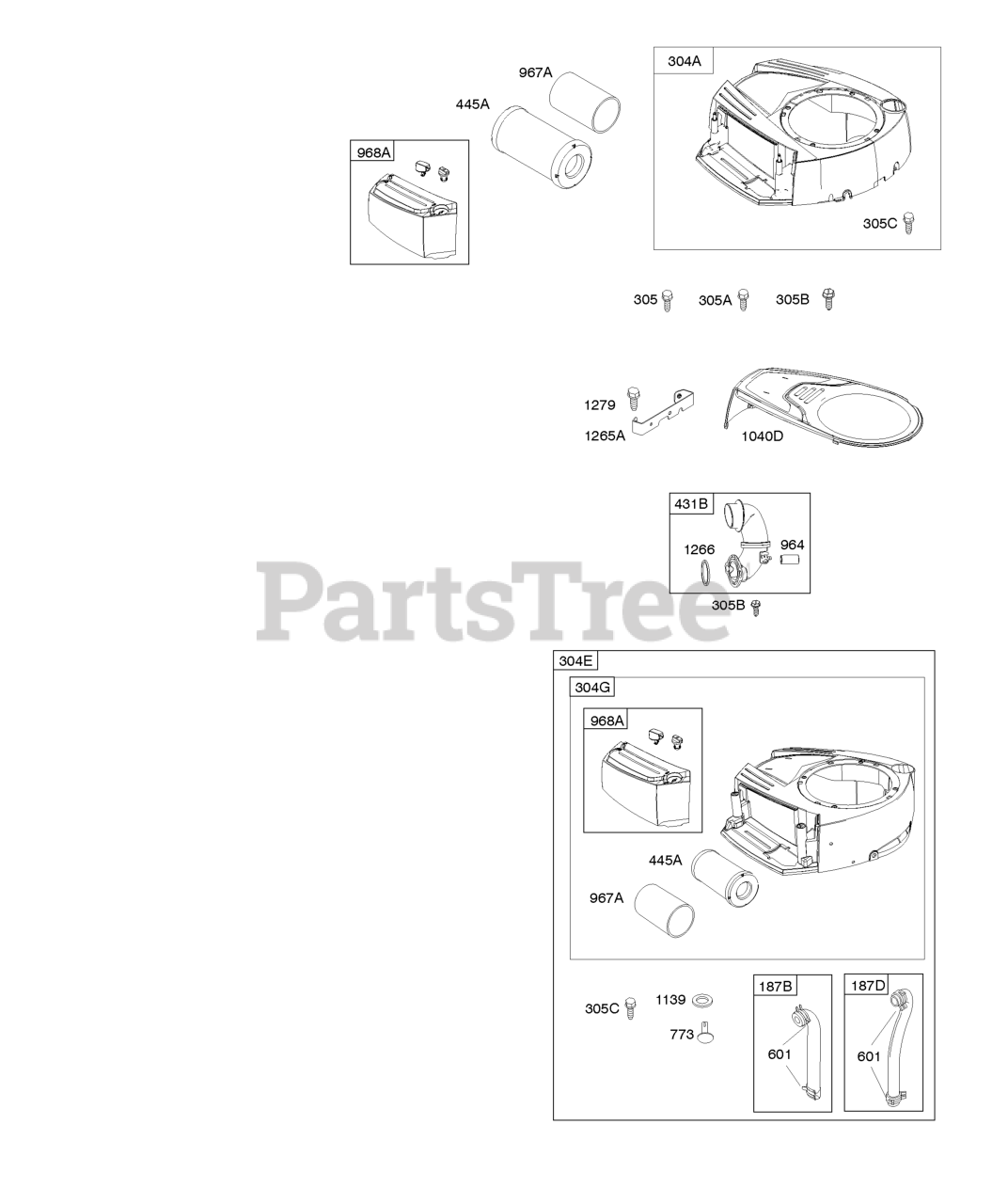

31E877-1630-G5 - Briggs & Stratton Vertical Engine Air Cleaner, Blower Housing Parts Diagram

Vertical Engine

Air Cleaner, Blower Housing Parts Diagram

  • Title

187B

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$24.99

$

In Stock, only 1 left!

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(14 Inches Long)(Cut To Required Length)

$14.99

$

In Stock, only 2 left!

0

304A

Briggs & Stratton 798578

Housing-Blower
(Superseded to 591645)

Note: (Grey)

$

$

Not available

304G

Briggs & Stratton 591645

Housing-Blower

Note: (Grey-Compatible With Canister Style Filter) Used Before Code Date 13042200

$

$

Not available

304G

Briggs & Stratton 592813

Housing-Blower
(Superseded to 592814)

Note: (Grey-Compatible With Canister Style Filter) Used After Code Date 13042100

$136.99

$

In Stock, only 2 left!

0

304E

Briggs & Stratton 592814

Housing-Blower

Note: (Black-Compatible With Canister Style Filter)

$136.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 697102

Screw
(Superseded to 596718)

Note: (Blower Housing)

$3.99

$

In Stock, only 2 left!

0

305A

Briggs & Stratton 793376

Screw
(Superseded to 799370)

Note: (Blower Housing)

$3.99

$

In Stock, only 4 left!

0

305C

Briggs & Stratton 799370

SCREW

Note: (Blower Housing)

$3.99

$

In Stock, only 4 left!

0

305B

Briggs & Stratton 795891

SCREW

Note: (Blower Housing) (Blower Housing To Intake Elbow)

$3.99

$

In Stock, Qty 7

0

431B

Briggs & Stratton 799043

Elbow-Intake

$28.99

$

In Stock, Qty 5

0

445A

Briggs & Stratton 793569

Filter-A/C Cartridge

$19.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, only 3 left!

0

964

Briggs & Stratton 799159

CAP, Connector

Note: (EVAP)

$8.49

$

In Stock, only 1 left!

0

967A

Briggs & Stratton 793685

FILTER-PRE CLEANER

$4.99

$

In Stock, Qty 14

0

968A

Briggs & Stratton 591649

Cover-Air Cleaner
(Superseded to 591648)

Note: (Grey-Compatible With Canister Style Filter)

$55.99

$

In Stock, Qty 12

0

1040D

Briggs & Stratton 798568

Plate-Trim

Note: (Orange)

$43.99

$

Usually ships in 2-12 days

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.49

$

Usually ships in 2-12 days

0

1265A

Briggs & Stratton 794151

Support-Blower Housing

$10.99

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1279

Briggs & Stratton 691108

SCREW

Note: (Blower Housing Support)

$3.49

$

In Stock, Qty 20+

0
