31D-140-352 - Yard Machines Snow Thrower (2004) (Walmart) General Assembly Parts Diagram

Snow Thrower

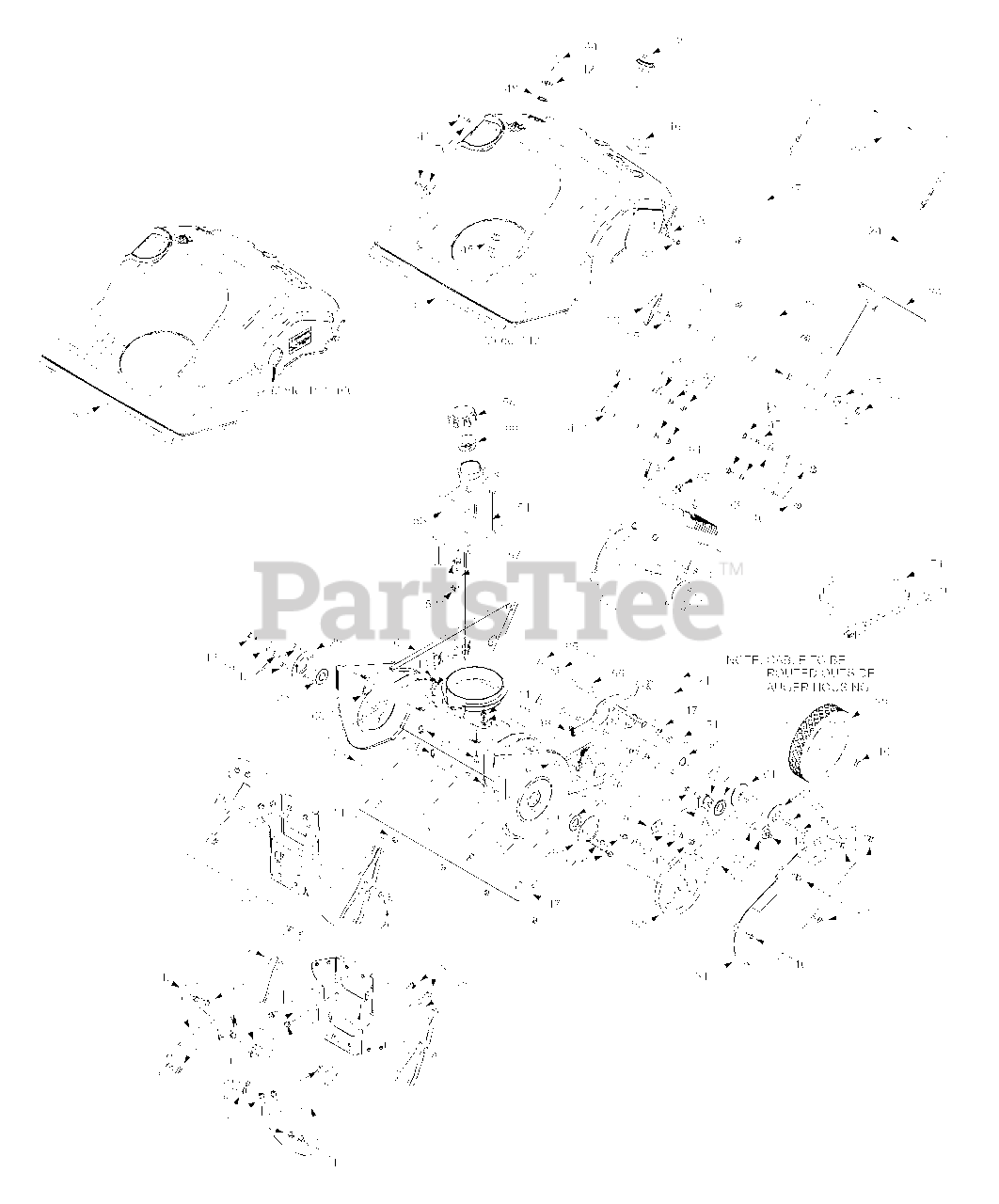

General Assembly Parts Diagram

  • Title

1

MTD 684-04027

Auger Ass'y 21" complete w/Solid Shaft
(Superseded to 984-04027A)

$196.99

$

In Stock, Qty 10

0

2

MTD 684-04025

Auger Ass'y 21" w/Solid Shaft
(Superseded to 984-04027A)

Variations

MTD 684-04025-0637

Auger Assembly, 21" Complete - POWDER BLACK (0637)

$196.99

$

In Stock, Qty 10

0

$196.99

$

In Stock, Qty 10

0

3

MTD 710-0896

Hex Screw AB:1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

4

MTD 735-04032

Rubber Spiral

$18.99

$

In Stock, Qty 20+

0

5

MTD 735-04033

Rubber Paddle

$8.49

$

In Stock, Qty 20+

0

6

MTD 684-04028

Auger Housing Ass'y 21"

Variations

MTD 684-04028-0638

KIT:SERVICE:FRAME: - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04028-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-04028-0665

HOUSING ASM-AUGER 21" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-04028-0684

HOUSING ASM-AUGER 21" - ZINC YELLOW (0684)

$

$

Not available

MTD 684-04028-0691

HOUSING ASM-AUGER 21" - BLACK JACK (0691)

$

$

Not available

MTD 684-04028-0709

HOUSING ASM-AUGER 21" - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

7

MTD 710-0134

Carriage Bolt 1/4-20 x .62" LG

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0167

Carriage Bolt 1/2-20 x .50 LG
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

9

MTD 710-0323

Truss Mach Scr 5/16-18 x .75

$4.99

$

In Stock, only 2 left!

0

10

MTD 710-0352

Hex "B" Tap Scr. 1/4-14 x .375" LG

$4.99

$

Usually ships in 3-6 days

0

11

MTD 710-0597

Hex Screw 1/4-20 x 1.00 Gr. 5

$3.99

$

In Stock, Qty 13

0

12

MTD 710-1005

Hex Tap Scr. 1/4-14 x .50" LG.
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0642

Hex Tap Scr. 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-3027

Hex Flange Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-3090

Flat Washer .260 x .720 x .060

$6.99

$

In Stock, Qty 11

0

16

MTD 726-0299

Push Cap x 1/2" Rod

$8.49

$

In Stock, Qty 20+

0

17

MTD 731-1033

Shave Plate 2.66 x 19.88 Double

$47.99

$

In Stock, Qty 13

0

18

MTD 732-0357A

Extension Spring .33 OD x 1.12 Lg.

$4.49

$

In Stock, Qty 13

0

19

MTD 736-0176

Flat Washer .265 ID x .938 OD x .120

$4.99

$

In Stock, only 4 left!

0

20

MTD 736-0326

Flat Washer .510 ID x 1.00 OD x .125

$4.49

$

In Stock, only 2 left!

0

22

MTD 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

23

MTD 741-0600

Ball Bearing 17 x 40 x 12
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

24

MTD 746-04091

Clutch Cable
(Superseded to 946-04091)

$28.99

$

In Stock, Qty 12

0

25

MTD 7468-0234

Shoulder Spacer .25 THK

$

$

Currently unavailable

26

MTD 749-04114

Lower Handle
(Superseded to 749-04114B)

Variations

MTD 749-04114-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04114-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

27

MTD 750-04230

Flange Spacer
(Superseded to 750-04230A)

$5.49

$

In Stock, only 1 left!

0

28

MTD 790-00062

Belt Keeper
(Superseded to 990-00062)

$8.49

$

Usually ships in 3-6 days

0

29

MTD 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

MTD 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 790-00039

Idler Bracket w/Brake

Variations

MTD 790-00039-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 790-00045

Belt Cover
(Superseded to 790-00045C)

Variations

MTD 790-00045-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

MTD 790-00045-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 790-00045-0662

COVER-BELT SINGLE - OYSTER GRAY (0662)

$

$

Not available

MTD 790-00045-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 790-00045-0709

COVER-BELT SINGLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$46.99

$

Usually ships in 3-6 days

0

32

MTD 710-0487

Carriage Bolt 5/16-18 x 2.0 Gr. 1

$7.49

$

Usually ships in 3-6 days

0

33

MTD 720-0284

Handle Knob Assembly 5/16-18

$6.99

$

In Stock, Qty 20+

0

34

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

35

MTD 736-0451

Saddle Washer .320 ID x .93 OD

$4.49

$

In Stock, Qty 11

0

36

MTD 747-04165

Bail
(Superseded to 747-04165-0637)

Variations

MTD 747-04165-0637

Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 3 left!

0

$13.99

$

In Stock, only 3 left!

0

37

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

38

MTD 734-04070

Wheel-3 spoke, 7 x 1.61

$18.99

$

Usually ships in 3-6 days

0

39

MTD 684-04043

Shroud Ass'y 3.5 HP
(Superseded to 984-04043)

$

$

Not available

39

MTD 684-04044

Shroud Ass'y 4.5 HP
(Superseded to 984-04044)

$

$

Not available

40

MTD 710-1882

Hex Flange Screw 5/16-18 x 1.50 Gr. 5

$4.49

$

Usually ships in 3-6 days

0

41

MTD 710-1003

Hex Wash B-Tapp Scr #10-16 x .625" Lg.
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

42

MTD 712-0252

Hex Nut 5/8-32 x .12 Special

$5.99

$

Usually ships in 3-6 days

0

43

MTD 712-3010

Hex Nut 5/16-18 hd. Gr. 5

$4.49

$

In Stock, Qty 20+

0

44

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

45

MTD 725-2018

Key Switch-Electric Start
(Superseded to 925-2018)

$

$

Not available

46

MTD 731-1133C

Plastic Cap 1.75 Dia x .72

$

$

Not available

47

MTD 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

MTD 736-0225

L-Washer Internal .625 ID x 1.058 OD

$4.49

$

In Stock, only 2 left!

0

49

MTD 7512B1476

Primer Button
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 7

0

50

MTD 710-0157

Hex Screw 5/16-24 x .75 Gr. 5

$4.49

$

In Stock, Qty 15

0

51

MTD 710-0805

Hex Bolt 5/16-18 x 1,50" Lg. Gr. 5
(Superseded to 710-0805A)

Note: Model 140 Only

$4.49

$

In Stock, Qty 20+

0

51

MTD 710-3025

Hex Screw 5/16-18 x .625 Gr. 5

Note: Model 150 & 160 Only

$3.99

$

In Stock, Qty 8

0

52

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

53

MTD 736-0242

Cupped Washer .340 ID x .872 OD x .

$4.49

$

In Stock, Qty 20+

0

54

MTD 747-04169

Gas Tank Wire Support

$

$

Not available

55

MTD 750-0589

Spacer .325 ID x .625 OD x .88 Lg.
(Superseded to 950-0589)

Note: Model 140 Only

$6.49

$

Usually ships in 3-6 days

0

56

MTD 750-0716

Spacer
(Superseded to 750-0716A)

Note: Model 140 Only

$

$

Not available

57

MTD 751-0535-17

Fuel Line 17" Lg.
(Superseded to 751-10349-22)

$25.99

$

Usually ships in 3-6 days

0

58

MTD 751-0603

Cap-Fuel
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

59

MTD 751-10023

Fuel Tank 2 Quart
(Superseded to 951-10023)

$

$

Not available

60

MTD 754-0367

V-Belt 1/2 x 35" Lg.
(Superseded to 954-0367)

$29.99

$

In Stock, Qty 20+

0

61

MTD 756-04060

Pulley Half .625 ID x 2.35 OD
(Superseded to 956-04060)

$

$

Not available

62

MTD 756-0475

Pulley 1/2 V x 1/2-20 x 6.0

$79.99

$

Usually ships in 3-6 days

0

63

MTD 790-00048

Mounting Bracket Support
(Superseded to 790-00048-0637)

Variations

MTD 790-00048-0637

BRACKET-MOUNT - POWDER BLACK

$

$

Not available

$

$

64

MTD 7519630

Recoil Handle

$

$

Not available

65

MTD 712-3004A

Hex Flange L-Nut 5/16-18 Gr. 5

$3.99

$

In Stock, Qty 20+

0

66

MTD 731-2113B

Fuel Plug 1.745 Dia x .75 w/Symbol

$

$

Currently unavailable

67

MTD 7511824110

Choke Lever Knob
(Superseded to TC-35511)

$1.99

$

Usually ships in 3-12 days

0

68

MTD 710-04187

H ex Scr. 1/4-15 x .50
(Superseded to 710-04187A)

Note: Model 140 Only

$6.99

$

In Stock, Qty 20+

0

68

MTD 710-1268

Hex B-Tapp Wash Scr.#10-16 x .375

Note: Model 150 & 160 Only

$4.49

$

In Stock, Qty 20+

0

69

MTD 736-0362

Flat Washer .320 ID x 1.25 OD

$4.49

$

In Stock, only 4 left!

0

70

MTD 736-0400

Flat Washer .194" ID x .62" OD x .063

$5.49

$

In Stock, Qty 11

0

71

MTD 629-0236

Cord-Extension 2 Prong (if so equipped)

Note: Model 150 & 160 Only

$

$

Not available

72

MTD 736-0337

Flat Washer, 5/8 ID x 1.0 OD

Note: Model 140 Only

$4.49

$

In Stock, Qty 9

0

MTD 753-04472

Kit, Auger Rubber Replacement

Note: Not shown

$100.99

$

In Stock, Qty 9

0
