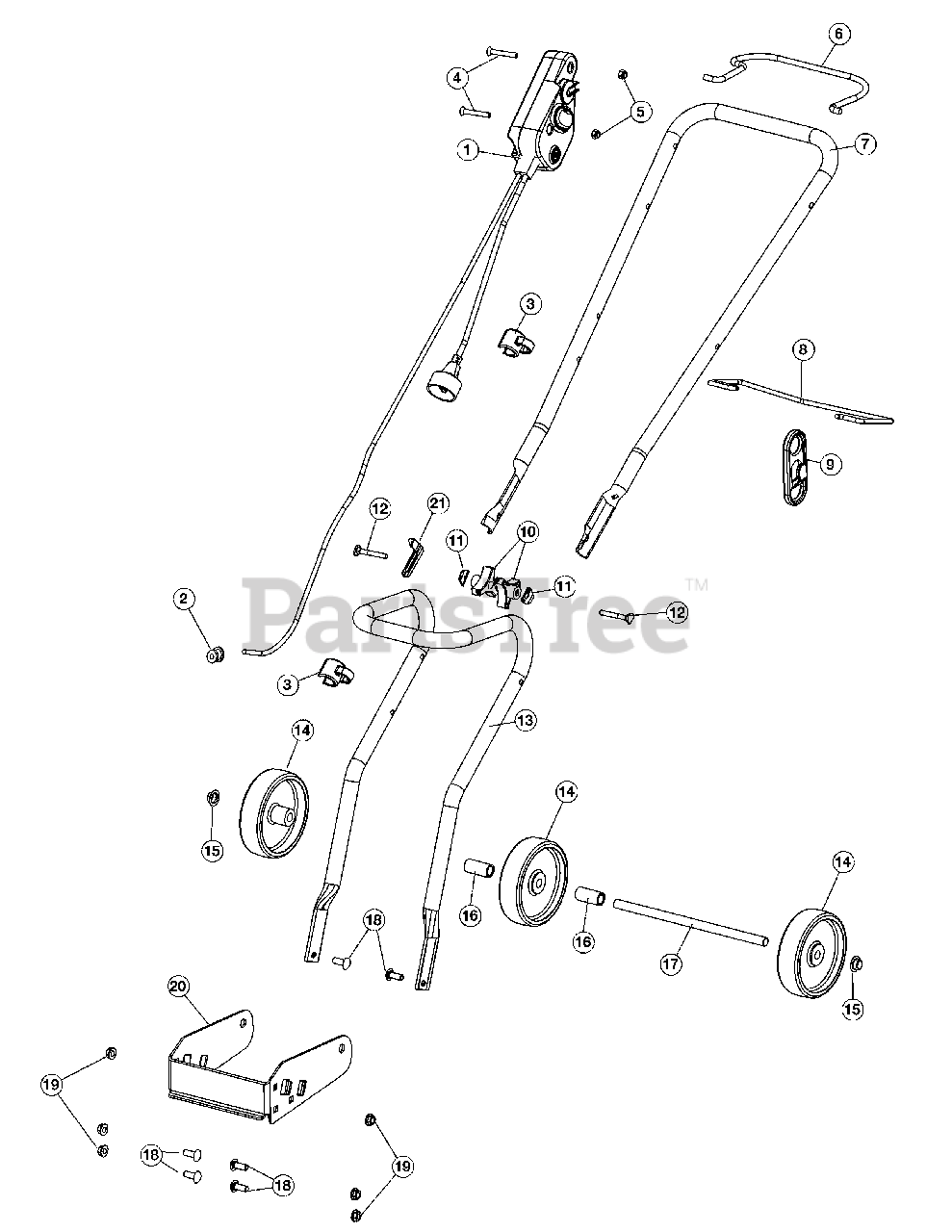

31C-040-800 - Yard Machines Snow Thrower (2010) General Assembly Parts Diagram

Snow Thrower

General Assembly Parts Diagram

  • Title

1

MTD 753-06235

Switch Asm

$

$

Not available

2

MTD 753-04428

Bushing

$17.99

$

Usually ships in 3-6 days

0

3

MTD 731-1820

Cable guide

$8.99

$

Usually ships in 3-6 days

0

4

MTD 753-04430

Screw

$3.99

$

Usually ships in 3-6 days

0

5

MTD 712-0324

Nut

$3.99

$

In Stock, Qty 16

0

6

MTD 753-04432

Bail

$

$

Not available

7

MTD 753-04433

Upper Handle

$

$

Not available

8

MTD 753-04434

Guide Bar

$

$

Not available

9

MTD 726-0368-0637

Cord Restraint
(Superseded to 726-0368)

$8.49

$

Usually ships in 3-6 days

0

10

MTD 791-182677

Knob

$14.99

$

In Stock, only 2 left!

0

11

MTD 936-0451

Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

12

MTD 791-182899

Bolt

$7.99

$

Usually ships in 3-6 days

0

13

MTD 753-04436

Lower Handle

$

$

Not available

14

MTD 753-04437

Wheel (incl. 15)

$22.99

$

Usually ships in 3-6 days

0

15

MTD 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

16

MTD 750-04692

Spacer

$

$

Not available

17

MTD 753-04439

Axel

$

$

Not available

18

MTD 710-0703

Bolt

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-04064

Nut

$3.99

$

In Stock, Qty 20+

0

20

MTD 753-04440

Wheel Bracket

$

$

Not available

21

MTD 753-04441

Control Rod Bracket

$

$

Not available

MTD 753-06236

Key

Note: Not Shown

$3.49

$

Usually ships in 3-6 days

0
