31BM63LF704 - MTD Gold Snow Thrower (2009) (Target) Extended Chute 2-Way & 4-Way Parts Diagram

Gold Snow Thrower

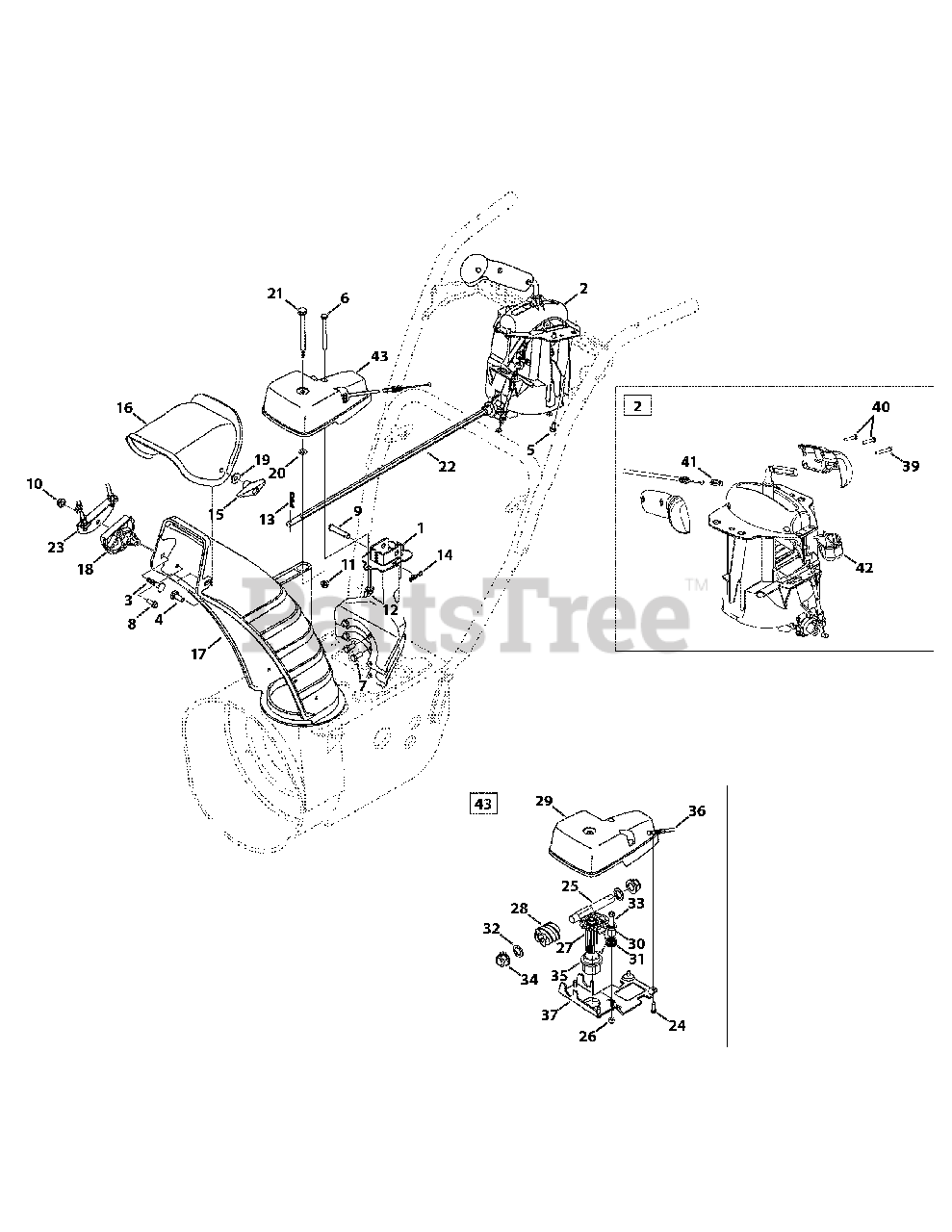

Extended Chute 2-Way & 4-Way Parts Diagram

  • Title

1

MTD 684-04310A-0637

Chute Support Bracket
(Superseded to 684-04310B-0637)

Note: Used with 31AH65LG704 Model Only

$40.99

$

Usually ships in 3-6 days

0

1

MTD 684-04311A-0637

Chute Support Bracket

Note: Used with 31BM62KE704 & 31BM63LF704 Models

$42.99

$

Usually ships in 3-6 days

0

2

MTD 984-04338

Chute Control, 4-Way
(Superseded to 984-04338A)

Note: Includes cables

$217.99

$

In Stock, only 1 left!

0

2

MTD 753-06153

4-Way Joystick Housing Kit

Note: 4-way, Not shown

$85.99

$

In Stock, only 1 left!

0

2

MTD 753-06152

Joystick Gear Set Kit

Note: 4-way, Not shown

$25.99

$

In Stock, only 2 left!

0

2

MTD 984-04324A

4-way Shift Control Assembly

Note: 4-way, Not shown (includes Joint Block Assembly, Shifter, Pitch Control)

$108.99

$

Usually ships in 3-6 days

0

2

MTD 746-04528A

Chute Cable
(Superseded to 946-04528B)

Note: 4-way, Not shown (Front housing cable)

$41.99

$

Usually ships in 3-6 days

0

2

MTD 746-04477

Chute Cable includes routing clip
(Superseded to 946-04477)

Note: 4-way, Not shown (Rear housing cable)

$44.99

$

In Stock, only 2 left!

0

2

MTD 984-04348

Chute Control, 2-Way

Note: 2-way

$130.99

$

In Stock, only 2 left!

0

2

MTD 753-06154

2-Way Joystick Housing Kit

Note: 2-way, Not shown

$52.99

$

Usually ships in 3-6 days

0

2

MTD 753-06152

Joystick Gear Set Kit

Note: 2-way, Not shown

$25.99

$

In Stock, only 2 left!

0

2

MTD 984-04347

2-way Shift Control Assembly

Note: 2-way, Not shown

$67.99

$

Usually ships in 3-6 days

0

2

MTD 753-06151

Control Trigger Housing Kit

$28.99

$

Usually ships in 3-6 days

0

3

MTD 710-0262

Bolt, Carriage, 5/16-18 x 1.50 - 28" Models

$3.99

$

In Stock, Qty 12

0

3

MTD 710-0451

Bolt, Carriage, 5/16-18 x .750 - 24" & 26" Models

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-04071

Bolt, Carrier, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 15

0

5

MTD 710-04187

Screw, HL, 1/4-15 x 0.50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

6

MTD 710-04370

Hex Head Screw, 1/4-20 x 3.00

$4.49

$

In Stock, only 1 left!

0

7

MTD 710-0627

Hex Head Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0895

Screw, HL, 1/4-15 x 0.750

$6.49

$

In Stock, Qty 5

0

9

MTD 711-04469A

Clevis Pin, 3/8 x 1.87

$5.99

$

In Stock, only 4 left!

0

10

MTD 712-04063

Nut, Flangelock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04064

Nut, Flangelock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

14

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

15

MTD 720-04072A

Star Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

16

MTD 731-04427A

Chute, Upper Remote
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

16

MTD 731-04426A

Chute, Upper Manual Tilt
(Superseded to 731-04426C)

$19.99

$

In Stock, only 4 left!

0

17

MTD 731-06440A

Chute, Lower

$51.99

$

In Stock, Qty 19

0

18

MTD 731-06451

Cable Guide, Chute Tilt

$4.99

$

Usually ships in 3-6 days

0

19

MTD 936-0159

Washer, Flat, .349 x .879
(Superseded to 736-0159)

$

$

Not available

20

MTD 736-04446

Washer, Flat, .25 x .630

$4.49

$

In Stock, only 2 left!

0

21

MTD 738-04367

Screw, Shoulder, .312 x 3.5 x 1/4-20

$4.99

$

In Stock, only 1 left!

0

22

MTD 747-05116

Chute Rod, 3/8 Hex

$30.99

$

In Stock, Qty 5

0

23

MTD 784-5594-0637

Cable Bracket

$11.99

$

In Stock, only 1 left!

0

24

MTD 710-04373A

Screw, 12-16 x .75

$4.49

$

In Stock, Qty 15

0

25

MTD 711-05186

Hex Shaft

$10.99

$

In Stock, only 4 left!

0

26

MTD 712-0896

Hexlock Nut, 1/4-28

$4.99

$

In Stock, Qty 6

0

27

MTD 717-04667

Gear, 14T
(Superseded to 717-04667B)

$10.99

$

In Stock, Qty 5

0

28

MTD 717-04672

Worm Gear
(Superseded to 717-04672A)

$9.49

$

In Stock, only 4 left!

0

29

MTD 731-06906

Gear Cover

$19.99

$

Usually ships in 3-6 days

0

30

MTD 731-06943

Pawl Lock
(Superseded to 731-06943A)

$4.99

$

In Stock, Qty 9

0

31

MTD 732-04638A

Torsion Spring, .721 ID x .474
(Superseded to 732-04638D)

$3.49

$

In Stock, only 1 left!

0

32

MTD 736-0290

Washer, Flat, .625 x 1.0 x .067

$6.99

$

In Stock, only 3 left!

0

33

MTD 738-04391

Screw, Shoulder, .340 x .950 x 1/4-28

$5.99

$

In Stock, only 3 left!

0

34

MTD 941-0225

Hex Bearing

$7.49

$

In Stock, Qty 20+

0

35

MTD 741-04388

Flange Bearing
(Superseded to 741-04388A)

$7.49

$

Usually ships in 3-6 days

0

36

MTD 946-04619A

Cable Lock
(Superseded to 946-04619B)

$34.99

$

In Stock, only 4 left!

0

37

MTD 790-00342A-0637

Gear Bracket
(Superseded to 790-00342C-0637)

$28.99

$

Usually ships in 3-6 days

0

39

MTD 710-04353

Screw, #8 x 1.00

$6.99

$

Usually ships in 3-6 days

0

40

MTD 710-04879

Screw, 8-32 x .750

$3.49

$

Usually ships in 3-6 days

0

41

MTD 731-04893A

Joystick Plug

$6.49

$

In Stock, only 1 left!

0

42

MTD 731-07031

Joystick Trigger

$7.49

$

In Stock, only 1 left!

0

43

MTD 918-04801

Chute Rotation Gearbox
(Superseded to 918-04801B)

$128.99

$

In Stock, Qty 20+

0
