31BH763G401 - Yard-Man Snow Thrower (2003) General Assembly Parts Diagram

Snow Thrower

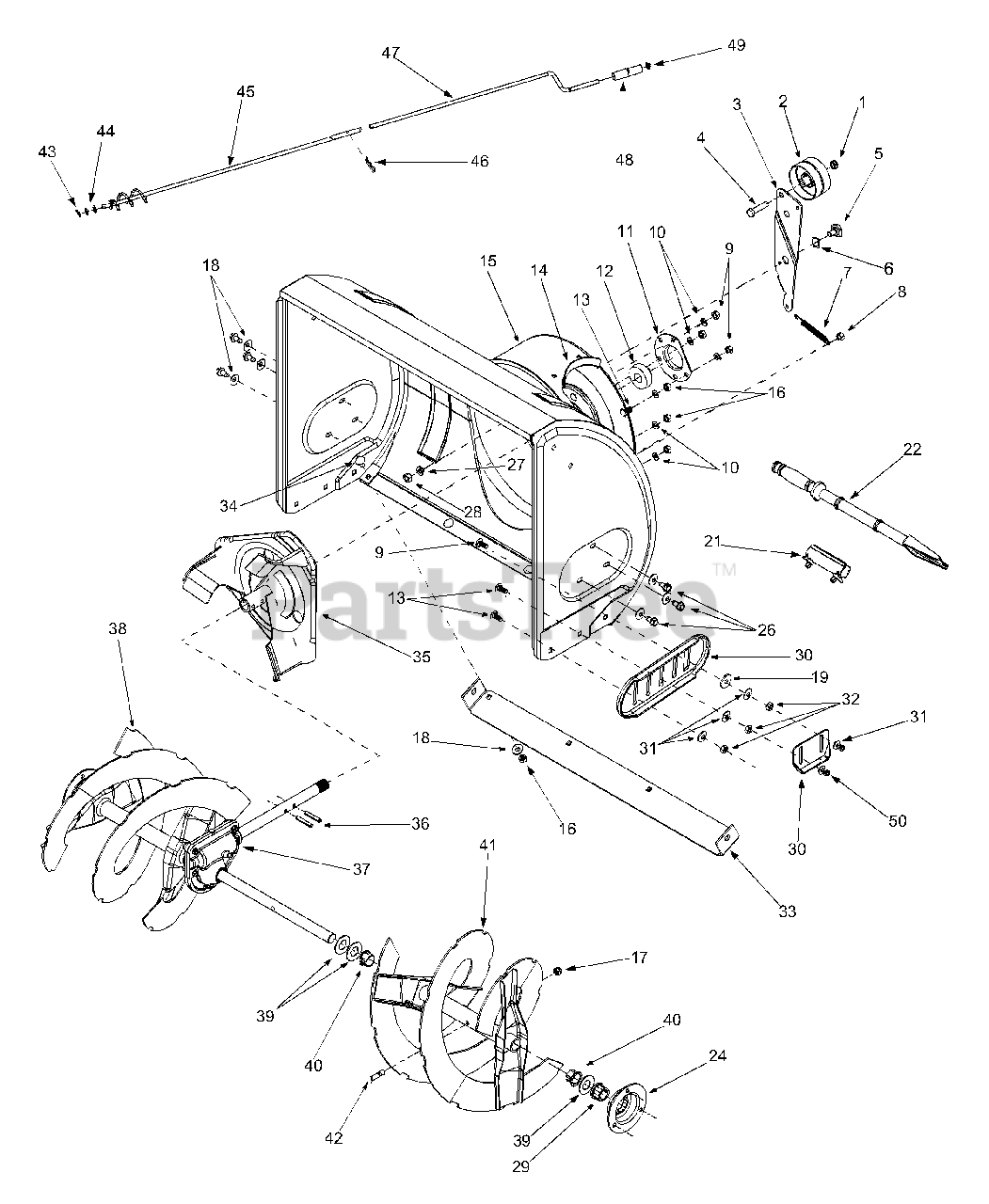

General Assembly Parts Diagram

  • Title

1

MTD 712-0116

Lock Jam Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

2

MTD 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

3

MTD 784-5632A

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

MTD 784-5632A-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 2 left!

0

$32.99

$

In Stock, only 2 left!

0

4

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$6.99

$

In Stock, Qty 8

0

5

MTD 738-0281

Shoulder Screw

$10.99

$

In Stock, only 2 left!

0

6

MTD 736-0167

Flat Washer .656 ID x 1.25 OD
(Superseded to 936-0167)

$6.99

$

In Stock, Qty 6

0

7

MTD 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

8

MTD 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

9

MTD 710-0276

Carriage Bolt, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

10

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

MTD 05931A

Housing

$10.99

$

Usually ships in 3-6 days

0

12

MTD 741-0309

Ball Bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

13

MTD 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

MTD 705-5226

Chute Reinforcement

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

15

MTD 684-0041D

Auger Housing Assy. 28"

Variations

MTD 684-0041D-0689

HOUSING ASM-28" - POLO GREEN (0689)

$

$

Not available

MTD 684-0041D-0650

HOUSING ASM-28" - RED METALLIC (0650)

$

$

Not available

MTD 684-0041D-0483

HOUSING ASM-28" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0041D-0606

HOUSING ASM-28" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 684-0041D-0629

"No Longer Available HOUSING ASM-28""" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0041D-0638

"No Longer Available HOUSING ASM-28""" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0041D-0662

HOUSING ASM-28" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0041D-0665

HOUSING ASM-28" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0041D-0691

HOUSING ASM-28" - BLACK JACK (0691)

$

$

Not available

MTD 684-0041D-0709

HOUSING ASM-28" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 684-0041D-0716

HOUSING ASM-28" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 684-0041D-0721

HOUSING ASM-28" - SEARS RED (0721)

$

$

Not available

MTD 684-0041D-4044

HOUSING ASM-28" - CRAFTSMAN RED (4044)

$

$

Not available

$

$

16

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0429

Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0231

Flat Wshr, .344ID x 1.125 OD

$4.99

$

In Stock, Qty 20+

0

21

MTD 731-2635

Clean-Out Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 18

0

22

MTD 731-2643

Clean-Out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 11

0

24

MTD 784-5618

Bearing Housing
(Superseded to 784-5618A-0637)

Variations

MTD 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

$13.99

$

In Stock, only 2 left!

0

26

MTD 710-0604A

Hex Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

29

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

30

MTD 784-5580

Skid Shoe

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 16

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 16

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

31

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

32

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

33

MTD 784-5582A

Shave Plate
(Superseded to 790-00118-0637)

Variations

MTD 784-5582A-0637

Shave Plate, 28" Powder Black - POWDER BLACK (0637)

$37.99

$

In Stock, Qty 20+

0

$37.99

$

In Stock, Qty 20+

0

34

MTD 710-0451

Carriage Bolt 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

35

MTD 684-0065

Impeller Assembly
(Superseded to 984-0065-0637)

Variations

MTD 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$90.99

$

In Stock, Qty 6

0

MTD 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$90.99

$

In Stock, Qty 6

0

$90.99

$

In Stock, Qty 6

0

36

MTD 715-0114

Pin

$9.49

$

In Stock, Qty 20+

0

37

MTD 618-0122A

Gear Assembly Complete, 28"
(Superseded to 918-0416B)

$474.99

$

Usually ships in 3-6 days

0

38

MTD 605-5196A

Spiral Assembly: RH 28"
(Superseded to 684-04184-0637)

Variations

MTD 605-5196A-0637

Auger Spiral Assembly, RH 28" - POWDER BLACK (0637)

$218.99

$

Usually ships in 3-6 days

0

$218.99

$

Usually ships in 3-6 days

0

39

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

40

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

41

MTD 605-5197A

Spiral Assembly: LH 28"
(Superseded to 684-04185-0637)

Variations

MTD 605-5197A-0637

Auger Spiral Assembly, LH 28" - POWDER BLACK (0637)

$184.99

$

Usually ships in 3-6 days

0

$184.99

$

Usually ships in 3-6 days

0

42

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0

43

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

44

MTD 736-0185

Flat Washer

$3.99

$

In Stock, Qty 20+

0

45

MTD 684-0053B

Chute Crank Assembly
(Superseded to 684-0053B-0637)

Variations

MTD 684-0053B-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 714-0101

Hairpin Clip

$4.99

$

In Stock, only 1 left!

0

47

MTD 747-0737

Chute Crank
(Superseded to 747-0737-0637)

Variations

MTD 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

48

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 5

0

49

MTD 726-0100

Push Cap

$4.49

$

In Stock, Qty 18

0

50

MTD 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

MTD 777D00179

Label: Yard Man/ Auger Side

$

$

Not available

MTD 777D02976

Label: Auger 10/28

$

$

Not available

MTD 777D02982

Label: Handle Panel Heated Hdl

$

$

Currently unavailable

MTD 777D03166

Label: Handle Stay Warm

$

$

Not available

MTD 777I20324

Label: Transport

$

$

Not available

MTD 777I20711

Label: H-Steer YM LH

$

$

Currently unavailable

MTD 777I20722

Label: H-Steer YM RH

$

$

Not available

MTD 777S30511

Label: Chute Danger
(Superseded to 777S30524)

$11.99

$

Usually ships in 3-6 days

0

MTD 777S30514

Label: Housing Danger

$

$

Not available
