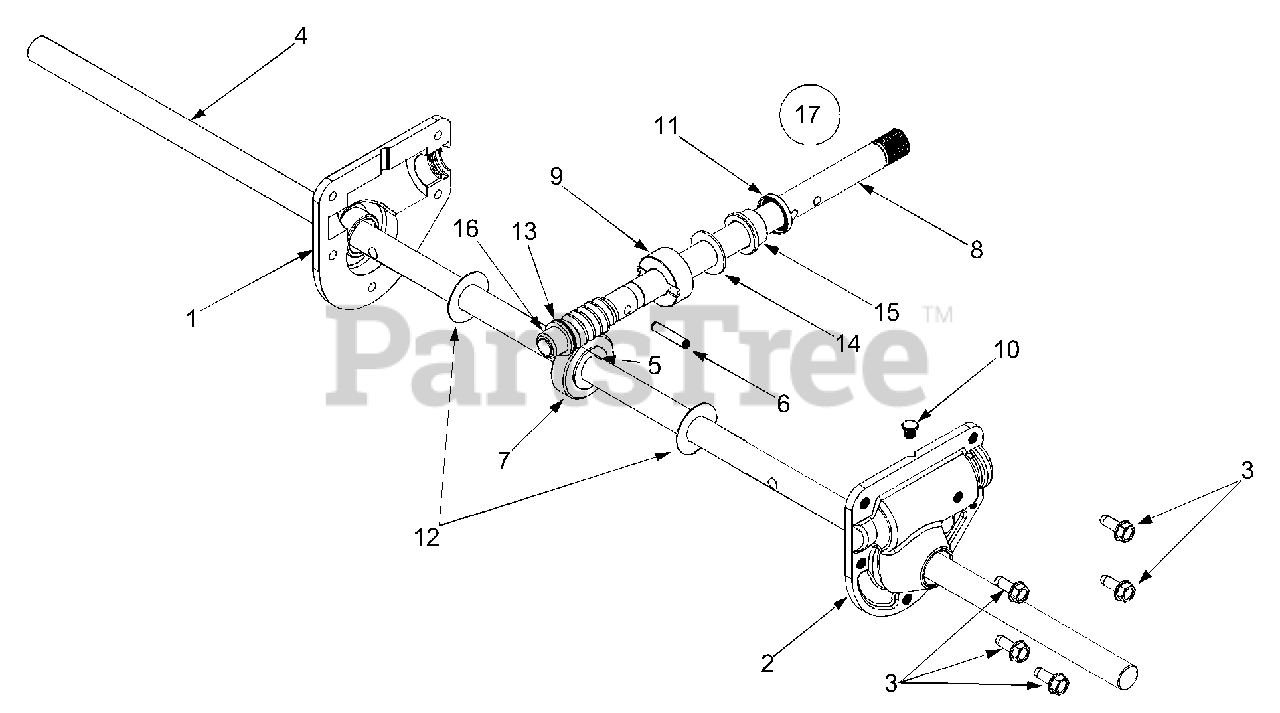

31BH5C3F401 - Yard-Man Snow Thrower (2004) Gear Assembly Parts Diagram

Snow Thrower

Gear Assembly Parts Diagram

  • Title

1

MTD 618-0123

RH Housing
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 20+

0

2

MTD 618-0124

LH Housing
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 17

0

3

MTD 710-0642

Self Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-0909A

Spiral Axle, 26" (H5C3F)

$

$

Not available

MTD 711-0910A

Spiral Axle, 28" (H5Q3G)

$130.99

$

Usually ships in 3-6 days

0

5

MTD 714-0161

Hi-Pro Key, 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

6

MTD 715-0143

Spring Spiral Pin, .25 x 1.25

$4.99

$

In Stock, Qty 15

0

7

MTD 717-0528A

Worm Gear, 20-tooth
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

8

MTD 717-0526

Worm Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 5

0

9

MTD 718-0186

Thrust Collar

$8.49

$

In Stock, Qty 12

0

10

MTD 721-0325

Grease Plug

$4.49

$

In Stock, Qty 20+

0

11

MTD 721-0327

Grease Seal

$6.99

$

In Stock, Qty 20+

0

12

MTD 736-0351

Flat Washer, .76 x 1.5 x .030

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0369

Flat Washer, .508 x 1.0 x .020

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0445

Flat Washer, .76 x 1.5 x .060

$4.49

$

In Stock, Qty 13

0

15

MTD 741-0662

Flange Bearing, .75 x 1.0 x .59

$10.99

$

In Stock, Qty 18

0

16

MTD 741-0663

Flange Bearing, .503 ID x .75 OD

$9.99

$

In Stock, Qty 20+

0

17

MTD 618-0121A

Gear Ass'y Complete, 26" (H5C3F)
(Superseded to 918-0415B)

$442.99

$

Usually ships in 3-6 days

0

MTD 618-0122A

Gear Ass'y Complete, 28" (H5Q3G)
(Superseded to 918-0416B)

$474.99

$

Usually ships in 3-6 days

0
