31B707-0005-E1 - Briggs & Stratton Vertical Engine Flywheel, Rewind Starter Parts Diagram

Vertical Engine

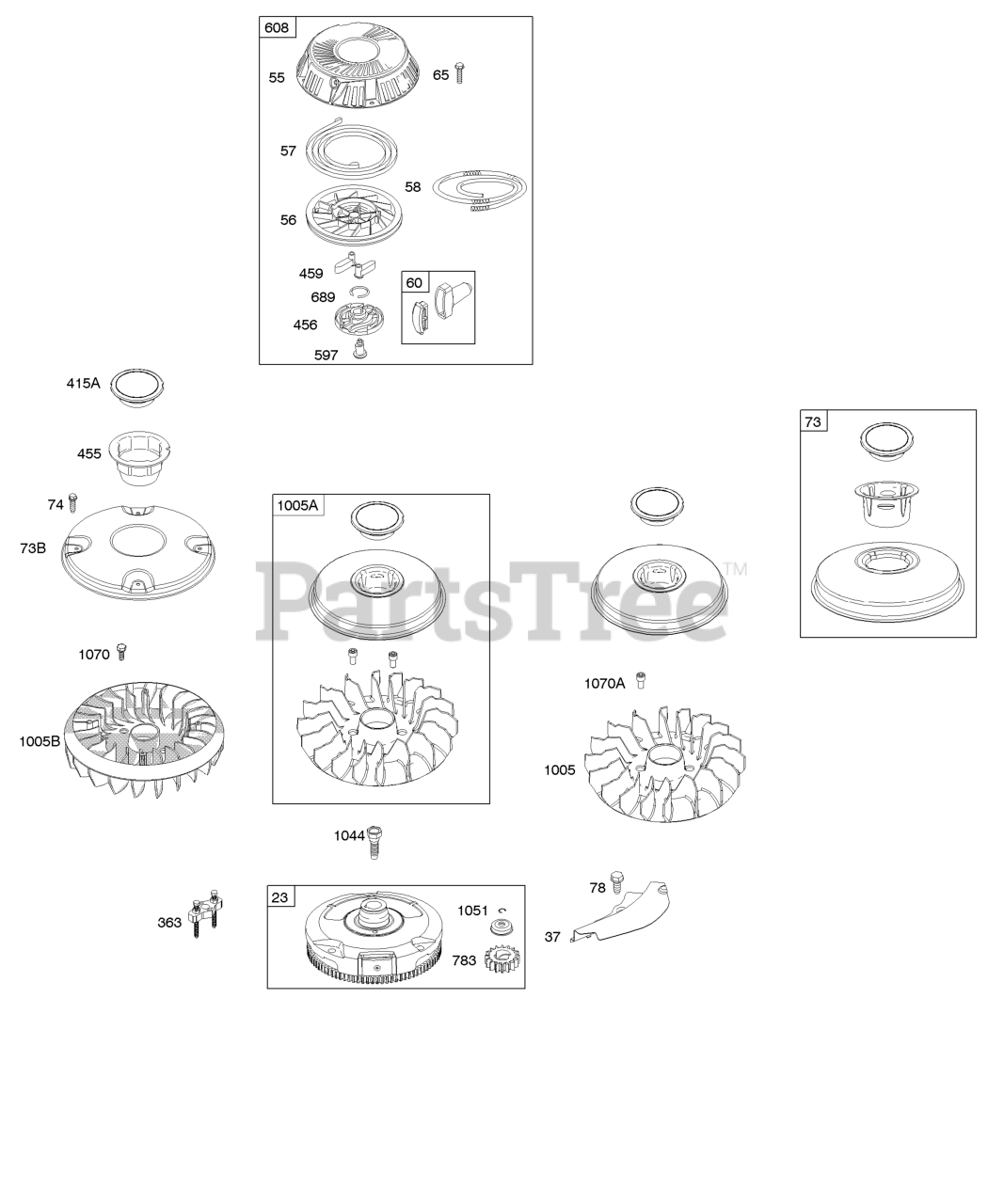

Flywheel, Rewind Starter Parts Diagram

  • Title
23

Briggs & Stratton 693556

Flywheel
(Superseded to 595094)

$238.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 697352

GUARD, Flywheel

$10.99

$

In Stock, only 2 left!

0

55

Briggs & Stratton 695130

Housing-Rewind Starter

$

$

Not available

56

Briggs & Stratton 695129

PULLEY, Starter

$29.99

$

In Stock, Qty 7

0

57

Briggs & Stratton 695131

SPRING, Rewind Starter

$17.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 695132

ROPE, Starter

$8.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 493926

Grip-Starter Rope

$

$

Not available

65

Briggs & Stratton 690759

Screw
(Superseded to 690837)

Note: (Rewind Starter) Used After Code Date 07040800

$3.49

$

In Stock, Qty 20+

0

65

Briggs & Stratton 697725

SCREW

Note: (Rewind Starter) Used Before Code Date 07040900

$4.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 796308

Screen-Rotating
(Superseded to 593933)

Note: Used After Code Date 07040800

$45.99

$

In Stock, Qty 6

0

73B

Briggs & Stratton 697133

Screen-Rotating

Note: (No Longer Available)(See Reference 1005A for Service Flywheel Fan) Used Before Code Date 07040900

$

$

Not available

74

Briggs & Stratton 697897

Screw

Note: (Rotating Screen) Used Before Code Date 07040900

$3.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 691003

SCREW

Note: (Flywheel Guard)

$3.49

$

In Stock, Qty 9

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

415A

Briggs & Stratton 794129

PLUG

Note: (Cover/Retainer) Used After Code Date 07040800

$6.99

$

In Stock, only 2 left!

0

455

Briggs & Stratton 695113

CUP, Flywheel

$15.99

$

In Stock, only 1 left!

0

456

Briggs & Stratton 695128

PLATE, Pawl Friction

$12.99

$

In Stock, Qty 17

0

459

$3.49

$

In Stock, Qty 9

0

597

Briggs & Stratton 691696

Screw

Note: (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

608

Briggs & Stratton 695058

Starter-Rewind
(Superseded to 591606)

$95.99

$

In Stock, Qty 20+

0

689

Briggs & Stratton 691855

SPRING, Friction

$4.49

$

In Stock, only 2 left!

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

$26.99

$

In Stock, only 1 left!

0

1005

Briggs & Stratton 796083

FAN, Flywheel
(Superseded to 796201)

Note: Used After Code Date 08040800

$29.99

$

In Stock, Qty 20+

0

1005A

Briggs & Stratton 794436

Fan-Flywheel
(Superseded to 796201)

Note: Used Before Code Date 07040900

$29.99

$

In Stock, Qty 20+

0

1005B

Fan-Flywheel

Note: (No Longer Available)(See Reference 1005A for Service Flywheel Fan)

$

$

Not available

1044

Briggs & Stratton 698139

SCREW

Note: (Flywheel)

$5.99

$

In Stock, Qty 7

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1070

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Flywheel Fan) Used Before Code Date 07040900

$3.99

$

In Stock, Qty 6

0

1070A

Briggs & Stratton 690363

Screw

Note: (Flywheel Fan) Used After Code Date 07040800 Used Before Code Date 08061000

$4.99

$

In Stock, only 3 left!

0
