31B707-0005-E1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply, Kit - Carburetor Overhaul Parts Diagram

Vertical Engine

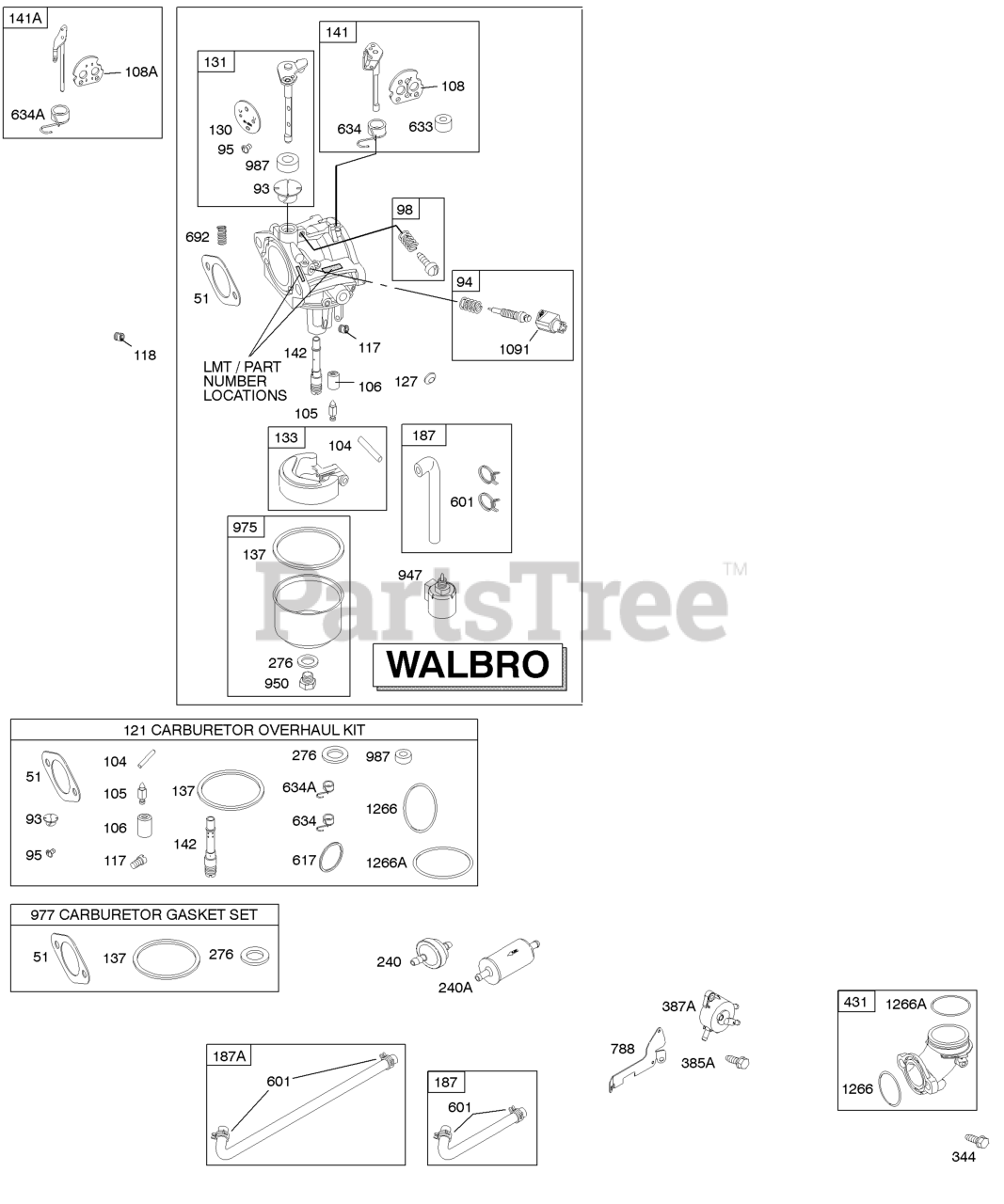

Carburetor, Fuel Supply, Kit - Carburetor Overhaul Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

93

Briggs & Stratton 690602

Bushing-Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 794176

Kit-Idle Mixture

$21.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 495800

Kit-Idle Speed

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Float Hinge

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855S

Valve-Float Needle

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: (Gravity Feed Carburetor)

$7.99

$

In Stock, only 3 left!

0

106

Briggs & Stratton 691780

Seat-Inlet

Note: (Pump Feed Carburetor)

$10.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 690464

Valve-Choke

Note: (Carburetor Part No. 697204)

$8.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 692344

Valve-Choke

Note: (Carburetor Part Numbers 697203, 697206)

$8.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 694352

Jet-Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 697228

Jet-Main

Note: (High Altitude) (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 697241

Kit-Carb Overhaul

Note: (Walbro Carburetor)

$43.99

$

In Stock, only 1 left!

0

127

Briggs & Stratton 694524

Plug-Welch

$4.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 691750

Valve-Throttle

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 790901

Kit-Throttle Shaft

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165S

Gasket-Float Bowl

$4.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 699112

Kit-Choke Shaft

Note: (Carburetor Part No. 697206)

$8.49

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 790905

Kit-Choke Shaft

Note: (Carburetor Part No. 697204)

$45.99

$

Usually ships in 2-12 days

0

141A

Briggs & Stratton 790902

Kit-Choke Shaft

Note: (Carburetor Part No. 697203)

$33.99

$

In Stock, only 1 left!

0

141B

Briggs & Stratton 792777

Kit-Choke Shaft

$32.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 697140

Nozzle-Carburetor

Note: (Standard)

$

$

Not available

187

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$24.99

$

In Stock, only 1 left!

0

187A

Briggs & Stratton 791806

Line-Fuel

Note: (Formed)(21" Long)(Cut to Required Length)

$54.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 394358S

FILTER, Fuel

Note: (White, 75 Microns)

$5.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

$5.49

$

In Stock, Qty 20+

0

344

Briggs & Stratton 693675

Screw

Note: (Cable Clamp)

$3.99

$

In Stock, only 1 left!

0

385A

Briggs & Stratton 690297

Screw

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 12

0

387A

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

431

Briggs & Stratton 697122

Elbow-Intake

$24.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 19

0

633

Briggs & Stratton 690597

Seal-Choke/Thr Shaft

$6.49

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 690801

Spring/Seal Assembly

Note: (Carburetor Part No. 697204)

$8.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 690802

Spring/Seal Assembly

Note: (Carburetor Part No. 697203)

$9.49

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 691301

Spring-Detent

Note: (Carburetor Part No. 697206)

$4.99

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

Note: (Carburetor Part No. 697204)

$5.49

$

In Stock, Qty 11

0

788

Briggs & Stratton 699347

Bracket-Fuel Pump

$24.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 694393

Solenoid-Fuel

$81.99

$

In Stock, only 1 left!

0

950

Briggs & Stratton 691657

Screw-Float Bowl

$7.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 495933

Bowl-Float

$

$

Not available

977

Briggs & Stratton 690192

Gasket Set-Carburetor
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

987

Briggs & Stratton 691326

Seal-Throttle Shaft

$5.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

In Stock, only 1 left!

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, Qty 20+

0
