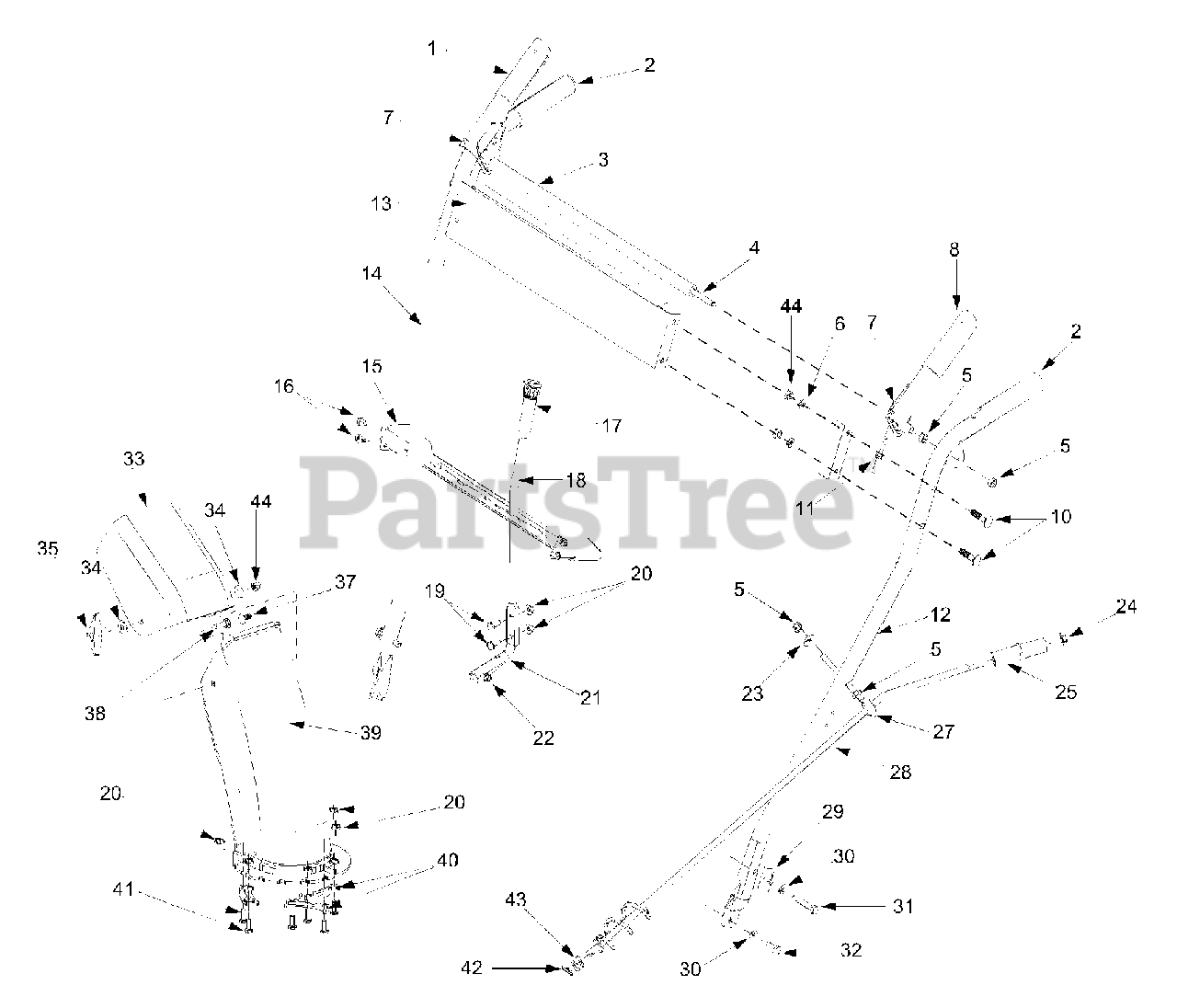

31B-611D352 - Yard Machines Snow Thrower (2002) (Walmart) Handle & Chute Parts Diagram

Snow Thrower

Handle & Chute Parts Diagram

  • Title

1

MTD 705-5234A

Clutch Lever Assembly - RH

$46.99

$

Usually ships in 3-6 days

0

2

MTD 720-0204

Grip

$13.99

$

Usually ships in 3-6 days

0

3

MTD 731-1500

Pivot Rod Cover

$

$

Not available

4

MTD 747-0905

Pivot Rod

$

$

Not available

5

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

6

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

8

MTD 705-5233A

Clutch Lever Assembly - LH

$

$

Not available

10

MTD 710-0262

Carriage Bolt 5/16-18 x 1.50

$3.99

$

In Stock, Qty 11

0

11

MTD 746-0778

"Z" Fittings For Control CablesZ - Cable
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

12

MTD 684-0047A

Handle - LH

Variations

MTD 684-0047A-0637

No Longer Available HANDLE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

13

MTD 705-5232

Panel

Variations

MTD 705-5232-0483

No Longer Available PANEL-HAND - CHARCOAL GRAY (0483)

$

$

Not available

MTD 705-5232-0637

PANEL-HANDLE 1 STY - POWDER BLACK (0637)

$

$

Not available

MTD 705-5232-0638

No Longer Available PANEL-HAND - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 705-5232-0640

No Longer Available PANEL-HANDLE 1 STY - CO-OP GREEN (0640)

$

$

Not available

MTD 705-5232-0662

No Longer Available PANEL-HAND - OYSTER GRAY (0662)

$

$

Not available

$

$

14

MTD 684-0048A

Handle - RH
(Superseded to 684-0048A-0637)

Variations

MTD 684-0048A-0637

HANDLE-ASSY RH - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 705-5231

Speed Select Panel

Variations

MTD 705-5231-0637

Select Panel, 5-Speed Black - POWDER BLACK (0637)

$

$

Not available

MTD 705-5231-0638

Select Panel, 5-Speed Black - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 705-5231-0687

Select Panel, 5-Speed Black - PINE GREEN (0687)

$

$

Not available

MTD 705-5231-0689

Select Panel, 5-Speed Black - POLO GREEN (0689)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

16

MTD 710-0599

Hex Washer Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

17

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

18

MTD 747-0904

Shift Lever
(Superseded to 747-0904-0637)

Variations

MTD 747-0904-0637

Shift Lever, Powder Black - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

19

MTD 710-3015

Hex Cap Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

21

MTD 732-0733

Shift Lever Spring

$19.99

$

In Stock, only 4 left!

0

22

MTD 710-0788

Hex Washer Screw 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

23

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

24

MTD 726-0100

Push Cap

$4.49

$

In Stock, Qty 20+

0

25

MTD 720-0201A

Chute Knob

$10.99

$

In Stock, Qty 5

0

27

MTD 747-0697

Eyebolt

$8.49

$

In Stock, only 1 left!

0

MTD 735-0234

Grommet only

$5.49

$

In Stock, only 2 left!

0

28

MTD 705-5204A

Chute Directional Control Assembly
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

29

MTD 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

MTD 710-3259

Hex Cap Screw 5/16-18 x 1.75

$3.49

$

Usually ships in 3-6 days

0

32

MTD 710-1880

Hex Cap Screw 5/16-18 x .75

$4.99

$

In Stock, Qty 11

0

33

MTD 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

34

MTD 736-0159

Washer 5/16

$4.49

$

In Stock, Qty 20+

0

35

MTD 720-0284

Knob

$6.99

$

In Stock, Qty 9

0

?36

MTD 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

38

MTD 710-0276

Carriage Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

39

MTD 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

40

MTD 731-0851A

Flange Keeper

$4.49

$

In Stock, Qty 20+

0

41

MTD 710-3015

Hex Cap Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

42

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

43

MTD 736-0185

Flat Washer 3/8

$3.99

$

In Stock, Qty 20+

0

44

MTD 712-3068

Hex Patch Nut 5/16-18 Gr. 5
(Superseded to 912-3009)

$

$

Not available
