31B-611D062 - Yard Machines Snow Thrower (2003) (Lowes) Wheel Assembly Parts Diagram

Snow Thrower

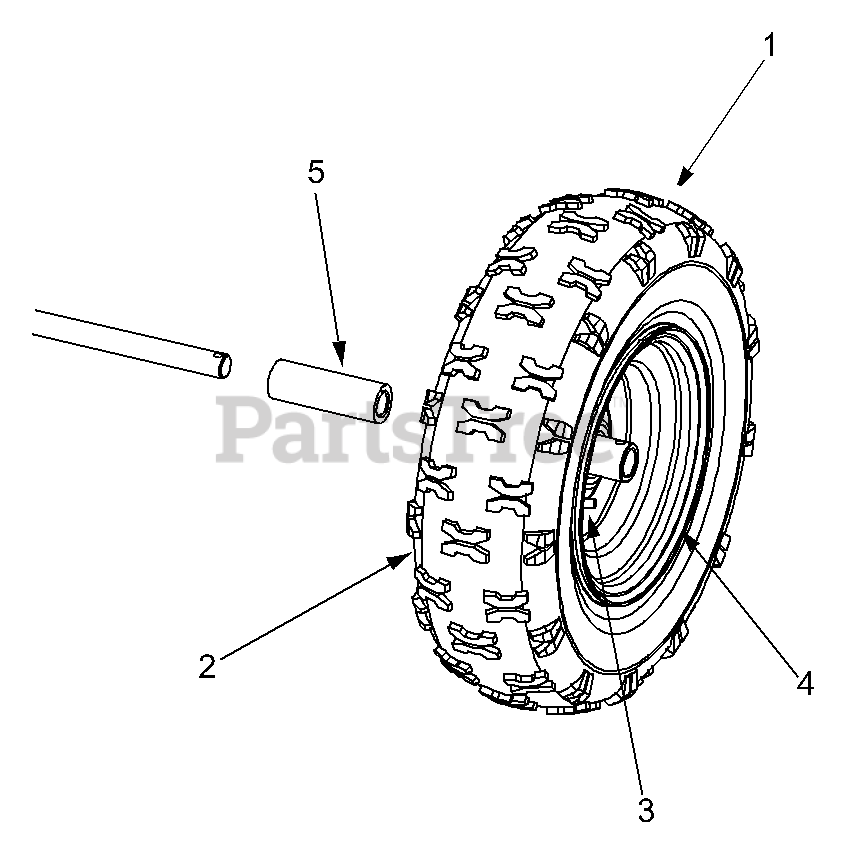

Wheel Assembly Parts Diagram

  • Title
1

MTD 634-0114A

Wheel Ass'y Complete; Size 13 x 4

Variations

MTD 634-0114A-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 634-0114A-0951

No Longer Available WHEEL ASM- - Carlisle Yellow (0951)

$

$

Not available

$

$

1

MTD 634-0166A

Wheel Ass'y Complete; Size 13 x 5 (w/22" Housing)

$

$

Currently unavailable

1

MTD 734-1714A

Wheel Ass'y Complete; Size 13 x 5 (w/24" Housing)

Variations

MTD 734-1714A-0911

No Longer Available WHL ASM 13 - Carlisle Gray (0911)

$

$

Not available

MTD 734-1714A-0915

No Longer Available WHL ASM 13 - Duro Gray (0915)

$

$

Not available

MTD 734-1714A-0931

No Longer Available WHEEL - Carlisle Beige (0931)

$

$

Not available

MTD 734-1714A-0951

No Longer Available WHEEL - Carlisle Yellow (0951)

$

$

Not available

$

$

2

MTD 734-1732

Tire Only; Size 13 x 4

Variations

MTD 734-1732-0901

TIRE:SNOW HOG 13X4 - Carlisle (0901)

$150.99

$

Usually ships in 3-6 days

0

MTD 734-1732-0904

TIRE:SNOW HOG 13X4 - Cheng (0904)

$150.99

$

Usually ships in 3-6 days

0

MTD 734-1732-0905

TIRE:SNOW HOG 13X4 - Duro (0905)

$150.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

2

MTD 734-1527

Tire Only; Size 13 x 5 (w/22" Housing), 13 x 5 (w/24" Housing)

Variations

MTD 734-1527-0901

No Longer Available - Carlisle (0901)

$

$

Not available

MTD 734-1527-0905

No Longer Available TIRE-SNOW - Duro (0905)

$

$

Not available

$

$

3

MTD 734-0255

Air Valve; Size 13 x 4, 13 x 5 (w/22" Housing), 13 x 5 (w/24" Housing)
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

4

MTD 734-1713A

Rim Only; Size 13 x 4, 13 x 5 (w/24" Housing)

Variations

MTD 734-1713A-0499

No Longer Available RIM ASM 6 - CUB BEIGE (0499)

$

$

Not available

MTD 734-1713A-0662

No Longer Available RIM ASM 6X - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1713A-0674

No Longer Available RIM - YARDMAN YELLOW (0674)

$

$

Not available

MTD 734-1713A-0731

No Longer Available RIM ASM 6X - YELLOW JACKET (0731)

$

$

Not available

$

$

4

MTD 684-0129A

Rim Only; Size 13 x 5 (w/22" Housing)

$

$

Currently unavailable

5

MTD 741-0401

Sleeve Bearing; Size 13 x 4, 13 x 5 (w/22" Housing), 13 x 5 (w/24" Housing)
(Superseded to 941-0401)

$7.49

$

In Stock, Qty 12

0
