31B-040-701 - Yard-Man Snow Fox Snow Thrower (2007) Handle Assembly Parts Diagram

Snow Fox Snow Thrower

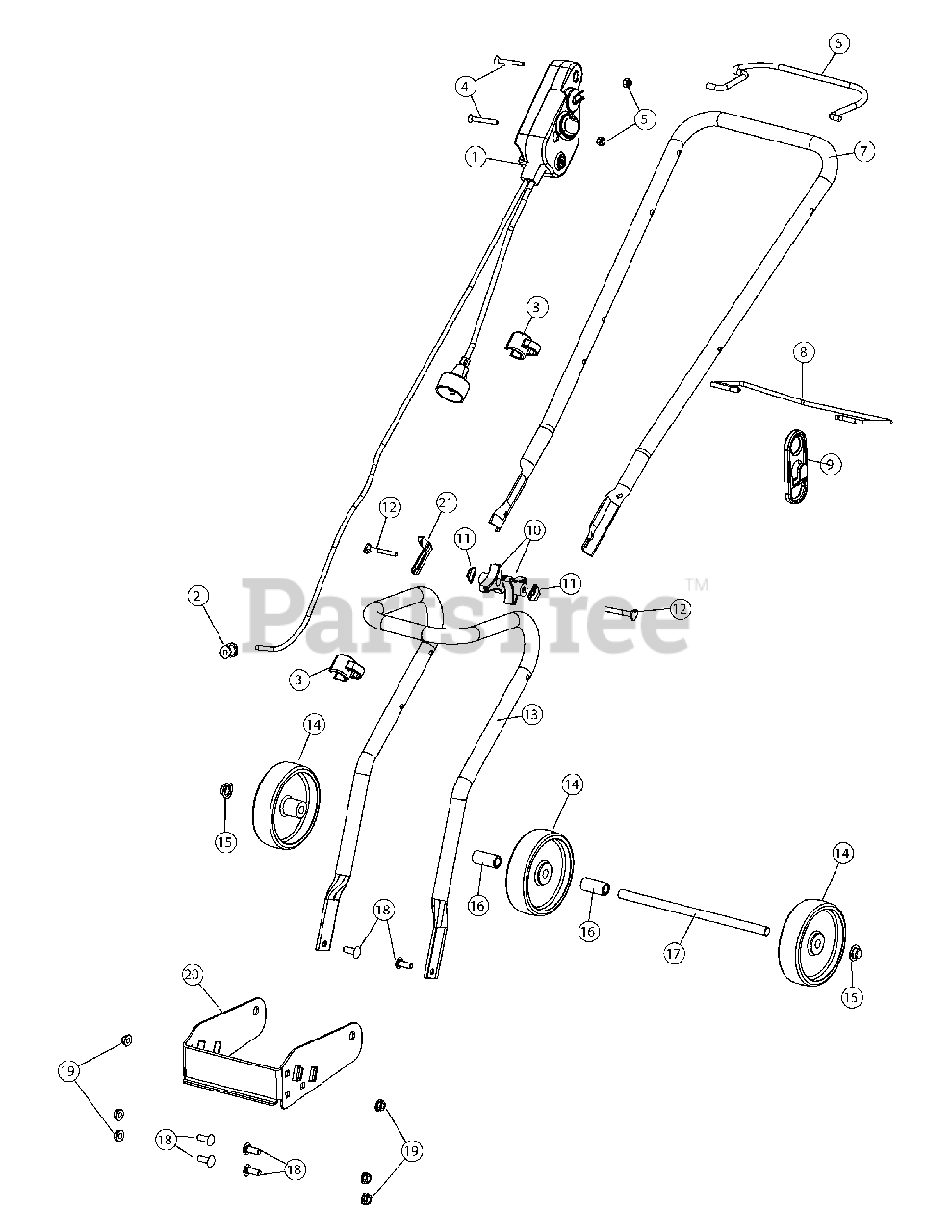

Handle Assembly Parts Diagram

  • Title

1

MTD 753-05385

Switch Asm

$

$

Not available

2

MTD 753-04428

Bushing

$17.99

$

Usually ships in 3-6 days

0

3

MTD 753-04429

Cable guide
(Superseded to 731-1820)

$8.99

$

Usually ships in 3-6 days

0

4

MTD 753-04430

Screw

$3.99

$

Usually ships in 3-6 days

0

5

MTD 753-04431

Nut
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

6

MTD 753-04432

Bail

$

$

Not available

7

MTD 753-04433

Upper Handle

$

$

Not available

8

MTD 753-04434

Guide Bar

$

$

Not available

9

MTD 753-04435

Cord Restraint
(Superseded to 726-0368)

$8.49

$

Usually ships in 3-6 days

0

10

MTD 791-182677

Knob

$14.99

$

In Stock, only 2 left!

0

11

MTD 753-04052

Washer
(Superseded to 936-0451)

$4.49

$

In Stock, Qty 18

0

12

MTD 791-182899

Bolt

$7.99

$

Usually ships in 3-6 days

0

13

MTD 753-04436

Lower Handle

$

$

Not available

14

MTD 753-04437

Wheel

$22.99

$

Usually ships in 3-6 days

0

15

MTD 753-04062

Push Cap
(Superseded to 726-0299)

$8.49

$

In Stock, Qty 20+

0

16

MTD 753-05384

Spacer
(Superseded to 750-04692)

$

$

Not available

17

MTD 753-04439

Axel

$

$

Not available

18

MTD 791-182213

Bolt
(Superseded to 710-0703)

$4.49

$

In Stock, Qty 15

0

19

MTD 753-05383

Nut
(Superseded to 712-04064)

$3.99

$

In Stock, Qty 20+

0

20

MTD 753-04440

Wheel Bracket

$

$

Not available

21

MTD 753-04441

Control Rod Bracket

$

$

Not available
