31AS6LEG752 - Yard Machines Snow Thrower (2005) (Walmart) Drive 6L Parts Diagram

Snow Thrower

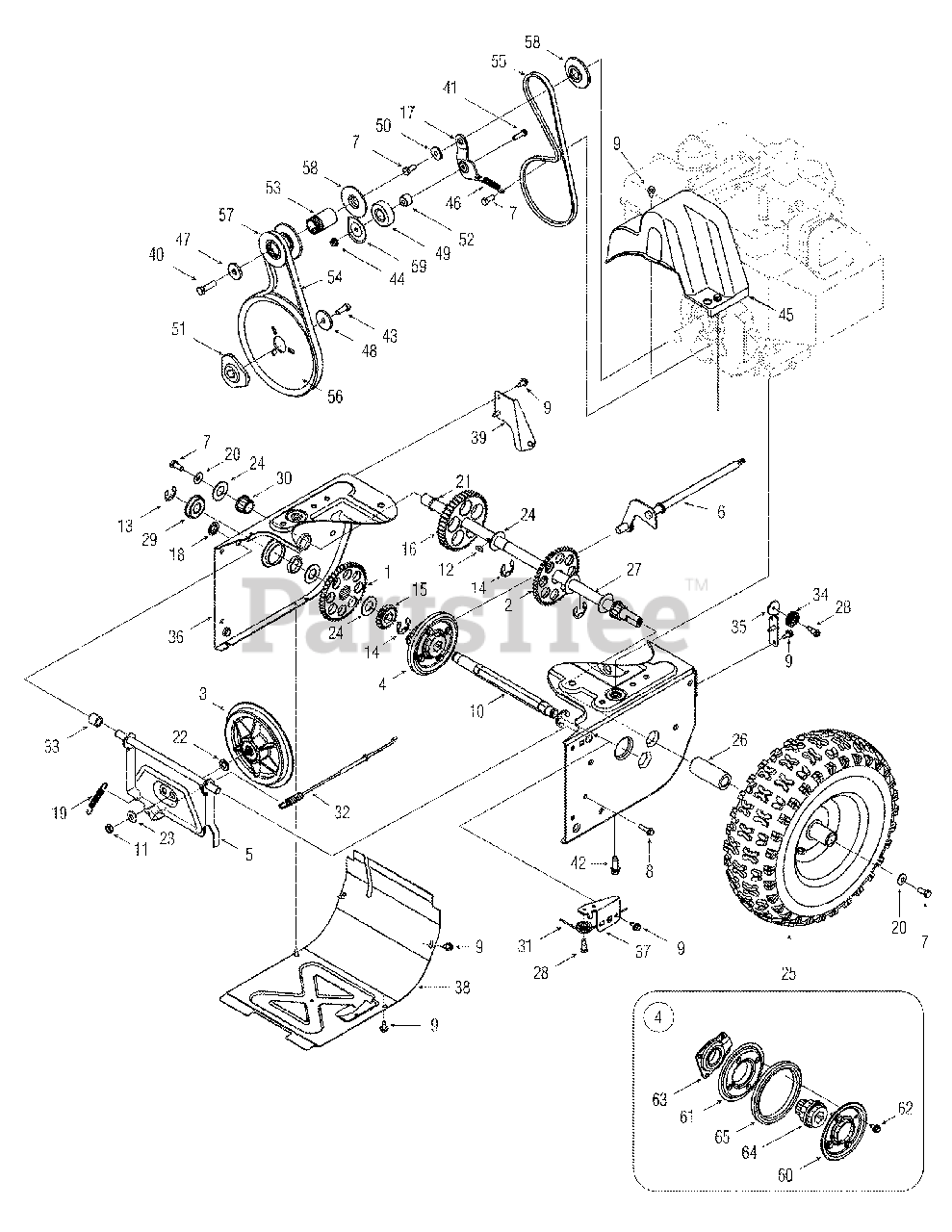

Drive 6L Parts Diagram

  • Title

1

MTD 617-04026

Gear Assembly, 16/44T
(Superseded to 917-04026A)

$125.99

$

In Stock, only 1 left!

0

2

MTD 617-04025

Gear Assembly, 16/44T
(Superseded to 917-04025A)

$107.99

$

In Stock, only 2 left!

0

3

MTD 656-0012A

Disc Assembly, Friction Wheel, .375
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 6

0

4

MTD 684-04066

Wheel Assembly, Friction, 4.9 OD
(Superseded to 984-04066)

$108.99

$

Usually ships in 3-6 days

0

5

MTD 684-04045

Support Bracket Ass'y, Friction Wheel

Variations

MTD 684-04045-0637

Friction Wheel Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 684-04139

Shift Assembly, Rod

$57.99

$

Usually ships in 3-6 days

0

7

MTD 710-0627

Screw, 5/16-24 x .750, Gr5

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0788

Screw, 1/4-20 x 1.000

$7.49

$

In Stock, only 2 left!

0

9

MTD 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

10

MTD 711-04246A

Hex Shaft, Drive, .75
(Superseded to 753-05173A)

$

$

Not available

11

MTD 712-0711

Nut, Jam, 3/8-24, Gr2

$4.49

$

In Stock, Qty 20+

0

12

MTD 714-0161

Key, Hi-pro 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

13

MTD 716-0231

Ring, E Type, .750

$3.99

$

In Stock, Qty 20+

0

14

MTD 716-0136

Ring, E-Type, .875

$8.99

$

In Stock, Qty 18

0

15

MTD 717-04129A

Pinion, 16T

$28.99

$

In Stock, only 3 left!

0

16

MTD 717-04137A

Gear, 44T

$80.99

$

Usually ships in 3-6 days

0

17

MTD 790-00082

Idler, Bracket, Drive

Variations

MTD 790-00082-0637

Drive Idler Bracket - POWDER BLACK

$

$

Not available

$

$

18

MTD 726-0221

Nut, Speed, .500

$6.49

$

In Stock, only 2 left!

0

19

MTD 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

20

MTD 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

21

MTD 736-04161

Washer, Flat, .75 x 1.00 x .060

$6.99

$

Usually ships in 3-6 days

0

22

MTD 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0105

Washer, Bell, .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

24

MTD 736-0287

Washer, Flat, .793 x 1.24 x .060

$4.49

$

In Stock, Qty 20+

0

25

MTD 634-04144

Wheel Assembly, Complete - Wheel Size 13 x 4
(Superseded to 634-04144A)

$155.99

$

Usually ships in 3-6 days

0

25

MTD 634-04151

Rim Only 13 x 4
(Superseded to 634-04172A)

Note: (not shown)

Variations

MTD 634-04151-0662

RIM ASM 6X3.25 W/V - OYSTER GRAY (0662)

$54.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

25

MTD 734-1732

Tire Only 13 x 4

Note: (not shown)

Variations

MTD 734-1732-0901

TIRE:SNOW HOG 13X4 - Carlisle (0901)

$150.99

$

Usually ships in 3-6 days

0

MTD 734-1732-0904

TIRE:SNOW HOG 13X4 - Cheng (0904)

$150.99

$

Usually ships in 3-6 days

0

MTD 734-1732-0905

TIRE:SNOW HOG 13X4 - Duro (0905)

$150.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

25

MTD 634-04143

Wheel Assembly, Complete - Wheel Size 13 x 5
(Superseded to 634-04143A)

Variations

MTD 634-04143-0911

Wheel Assembly, 13 X 5 Complete - Carlisle Gray (0911)

$191.99

$

Usually ships in 3-6 days

0

$103.99

$

Usually ships in 3-6 days

0

25

MTD 634-04151

Rim Only 13 x 5
(Superseded to 634-04172A)

Note: (not shown)

Variations

MTD 634-04151-0662

RIM ASM 6X3.25 W/V - OYSTER GRAY (0662)

$54.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

25

MTD 734-1527

Tire Only 13 x 5

Note: (not shown)

Variations

MTD 734-1527-0901

No Longer Available - Carlisle (0901)

$

$

Not available

MTD 734-1527-0905

No Longer Available TIRE-SNOW - Duro (0905)

$

$

Not available

$

$

25

MTD 634-04142

Wheel Assembly, Complete - Wheel Size 15 x 5
(Superseded to 634-04142A)

$163.99

$

Usually ships in 3-6 days

0

25

MTD 634-04151

Rim Only 15 x 5
(Superseded to 634-04172A)

Note: (not shown)

Variations

MTD 634-04151-0662

RIM ASM 6X3.25 W/V - OYSTER GRAY (0662)

$54.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

25

MTD 734-1859

Tire Only 15 x 5
(Superseded to 734-1859-0901)

Note: (not shown)

Variations

MTD 734-1859-0901

TIRE 15X5 - Carlisle (0901)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

25

MTD 634-04141

Wheel Assembly, Complete - Wheel Size 16 x 4.8

Variations

MTD 634-04141-0911

WHEEL ASM COMPLETE - Carlisle Gray (0911)

$243.99

$

Usually ships in 3-6 days

0

MTD 634-04141-0941

WHEEL ASM COMPLETE - Carlisle Yellow (0941)

$226.99

$

Usually ships in 3-6 days

0

MTD 634-04141-0951

WHEEL ASM COMPLETE - Carlisle Yellow (0951)

$226.99

$

Usually ships in 3-6 days

0

$197.99

$

Usually ships in 3-6 days

0

25

MTD 634-04140

Rim Only 16 x 4.8
(Superseded to 634-04173-0662)

Note: (not shown)

Variations

MTD 634-04140-0662

RIM ASM-8.0X3.75 W - OYSTER GRAY (0662)

$83.99

$

Usually ships in 3-6 days

0

$83.99

$

Usually ships in 3-6 days

0

25

MTD 734-1530

Tire Only 16 x 4.8

Note: (not shown)

Variations

MTD 734-1530-0901

TIRE-SNOW HOG-4.80 - Carlisle (0901)

$168.99

$

Usually ships in 3-6 days

0

MTD 734-1530-0905

TIRE-SNOW HOG-4.80 - Duro (0905)

$168.99

$

Usually ships in 3-6 days

0

$137.99

$

Usually ships in 3-6 days

0

25

MTD 734-0255

Air Valve, all sizes
(Superseded to 934-0255)

Note: (not shown)

$4.49

$

In Stock, Qty 20+

0

26

MTD 731-04873

Spacer, 1.25 OD x .75 ID x 3.00

$10.99

$

In Stock, Qty 7

0

26

MTD 731-04877

Spacer, 1.25 OD x .75 ID x 1.50

Note: (Found on models with a 22-inch auger housing only.)

$4.49

$

Usually ships in 3-6 days

0

27

MTD 738-04095A

Axle, .75 x 22

$139.99

$

Usually ships in 3-6 days

0

28

MTD 738-0924

Screw, 1/4-28 x .375
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

29

MTD 741-0563

Bearing, Ball, 17 x 40 x 12
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 7

0

30

MTD 741-0245

Bearing, Hex Flange x .75 ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

31

MTD 746-0897

Cable, Auger, 44.75
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

32

MTD 746-04086

Cable, Drive, 41.75
(Superseded to 946-04086)

$40.99

$

In Stock, only 4 left!

0

33

MTD 748-0190

Spacer, .508 ID x .75 OD x .68

$6.49

$

In Stock, Qty 11

0

34

MTD 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 14

0

35

MTD 784-5687A

Guide Bracket, Auger Cable
(Superseded to 784-5687A-0637)

Variations

MTD 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 790-00072

Frame

Variations

MTD 790-00072-0606

FRAME-DRIVE HSG - MAJESTIC ORANGE

$

$

Not available

MTD 790-00072-0638

FRAME-DRIVE HSG - MTD/TROY-BILT RED

$

$

Not available

MTD 790-00072-0709

FRAME-DRIVE HSG - MASTERCRAFT GREEN

$

$

Not available

MTD 790-00072-0716

FRAME-DRIVE HSG - CUB YELLOW-99

$

$

Not available

$

$

37

MTD 790-00096

Guide Bracket, Front, Auger Cable
(Superseded to 790-00096B)

Variations

Cub Cadet 790-00096A-0637

Auger Cable Bracket, Black - POWDER BLACK

$9.49

$

In Stock, only 2 left!

0

$9.49

$

In Stock, only 2 left!

0

38

MTD 790-00054

Cover, Frame

Variations

Cub Cadet 790-00054-0691

Frame Cover - BLACK JACK

$

$

Not available

MTD 790-00054-0691

Frame Cover - BLACK JACK

$

$

Not available

$

$

39

MTD 790-00055

Roller Bracket, Drive Cable

Variations

MTD 790-00055-0637

BRACKET-DRIVE CABLE - POWDER BLACK

$

$

Not available

$

$

40

MTD 710-0191

Screw, 3/8-24 x 1.25, Gr8

$4.99

$

In Stock, Qty 9

0

41

MTD 710-0597

Screw, 1/4-20 x 1.00, Gr5

$3.99

$

In Stock, Qty 13

0

42

MTD 710-0654A

Screw, Sems, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

43

MTD 710-1245B

Screw, 5/16-24 x .875, Gr8

$8.49

$

In Stock, only 4 left!

0

44

MTD 712-04064

Nut, Flange Lock, Nylon, 1/4-20, Gr F

$3.99

$

In Stock, Qty 20+

0

45

MTD 731-04792

Cover, Belt
(Superseded to 731Z04792F)

$24.99

$

In Stock, only 4 left!

0

46

MTD 732-0710

Spring, Extension, .38 OD x 2.68
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 16

0

47

MTD 736-0247

Washer, Flat, .406 x 1.25 x.157

$9.49

$

In Stock, Qty 12

0

48

MTD 736-0505

Washer, Flat, .34 x 1.50 x .150

$6.49

$

In Stock, Qty 11

0

49

MTD 741-0919

Bearing, Ball, 20 x 47 x 14
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

50

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

51

MTD 748-04053

Pulley, Adapter, .75 Dia.
(Superseded to 748-04053A)

$22.99

$

In Stock, only 3 left!

0

52

MTD 750-04230

Spacer, .777 OD x .260 ID x.550
(Superseded to 750-04230A)

$5.49

$

In Stock, only 1 left!

0

53

MTD 750-04303

Spacer, .875 ID x 1.185 OD

$17.99

$

In Stock, only 4 left!

0

54

MTD 754-04050

V-Belt, 1/2"
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

55

MTD 754-0456

V-Belt, 3/8"
(Superseded to 954-0456)

$29.99

$

In Stock, only 4 left!

0

56

MTD 756-04109

Pulley, Auger, 8.1 x .50

$54.99

$

Usually ships in 3-6 days

0

57

MTD 756-04113

Pulley, Half, 2.600 OD
(Superseded to 756-06563)

$3.99

$

In Stock, only 2 left!

0

58

MTD 756-04114

Pulley, Half, 2.2 OD

$13.99

$

Usually ships in 3-6 days

0

59

MTD 790-00062

Washer, Bearing, 2.12 OD x .255 ID
(Superseded to 990-00062)

$8.49

$

Usually ships in 3-6 days

0

60

MTD 790-00010

Plate, Friction, 12 Pt 4.60 Dia

$13.99

$

In Stock, only 1 left!

0

61

MTD 790-00011

Plate, Friction, Extrs, 12 Pt 4.60 Dia

$13.99

$

Usually ships in 3-6 days

0

62

MTD 710-0896

Screw, Self-tapping, 1/4-14 x 0.625

$4.49

$

In Stock, Qty 20+

0

63

MTD 618-04169

Bearing Assembly, Friction Wheel

$

$

Currently unavailable

64

MTD 718-04070

Hub, Friction Wheel

$

$

Currently unavailable

65

MTD 735-0243B

Friction Wheel Rubber, 4.875 OD
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+

0
