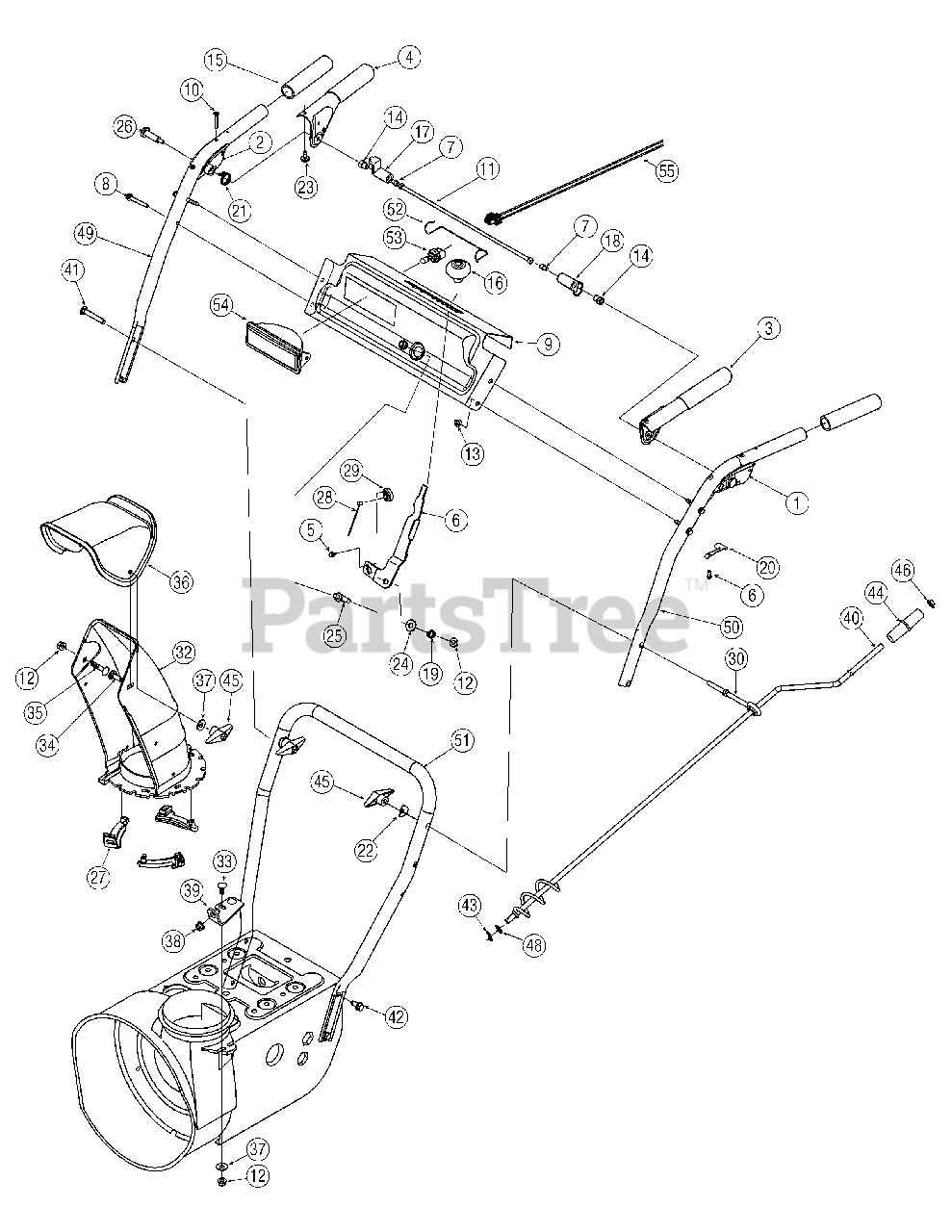

31AS6FEF729 - Yard Machines Snow Thrower (2005-2) (Home Depot) Handle Assembly Parts Diagram

Snow Thrower

Handle Assembly Parts Diagram

  • Title

1

MTD 631-04133

Handle Assembly, Clutch Lock, LH
(Superseded to 631-04133A)

$15.99

$

In Stock, Qty 8

0

2

MTD 631-04134A

Handle Assembly, Clutch Lock, RH
(Superseded to 631-04134B)

$15.99

$

In Stock, only 1 left!

0

3

MTD 684-04105A

Handle Ass’y, Engagement LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 4 left!

0

4

MTD 684-04106A

Handle Ass’y, Engagement RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 2 left!

0

5

MTD 710-0224

Screw, #10-16, 0.500
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-04326

Screw, #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

7

MTD 710-04354

Screw, 1/4-20, .375

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0606

Hex Screw, 1/4-20, 1.50,

$5.49

$

In Stock, Qty 10

0

9

MTD 790-00219

Panel, Handle, (no cutout) E-Style
(Superseded to 790-00219A)

Variations

MTD 790-00219-0637

PANEL:HANDLE W/SHF - POWDER BLACK (0637)

$72.99

$

Usually ships in 3-6 days

0

MTD 790-00219-0691

PANEL:HANDLE W/SHF - BLACK JACK (0691)

$63.99

$

Usually ships in 3-6 days

0

MTD 790-00219-0709

PANEL:HANDLE W/SHF - MASTERCRAFT GREEN (0709)

$63.99

$

Usually ships in 3-6 days

0

MTD 790-00219-0721

PANEL:HANDLE W/SHF - SEARS RED (0721)

$72.99

$

Usually ships in 3-6 days

0

MTD 790-00219-4043

PANEL-STEEL HNDL - CRAFTSMAN METALLIC GRAY (4043)

$72.99

$

Usually ships in 3-6 days

0

MTD 790-00219-4044

PANEL:HANDLE W/SHF - CRAFTSMAN RED (4044)

$72.99

$

Usually ships in 3-6 days

0

MTD 790-00219-0638

PANEL:HANDLE W/SHF - MTD/TROY-BILT RED (0638)

$

$

Not available

$63.99

$

Usually ships in 3-6 days

0

9

MTD 790-00209

Panel, Handle, (no cutout) F-Style
(Superseded to 790-00209A)

Variations

MTD 790-00209-0637

PANEL:HANDLE:STEEL - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

MTD 790-00209-0638

PANEL:HANDLE:STEEL - MTD/TROY-BILT RED (0638)

$55.99

$

Usually ships in 3-6 days

0

MTD 790-00209-0667

PANEL:HANDLE:STEEL - MIDNIGHT BLUE (0667)

$55.99

$

Usually ships in 3-6 days

0

MTD 790-00209-0684

PANEL:HANDLE:STEEL - ZINC YELLOW (0684)

$55.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

10

MTD 710-1233

Screw, Machine, #10-24, 1.375

$4.99

$

In Stock, Qty 11

0

11

MTD 711-04287

Pivot Rod
(Superseded to 753-04882C)

$42.99

$

In Stock, only 2 left!

0

12

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04081A

Nut, Hex, 1/4-20, Shoulder

$7.49

$

In Stock, Qty 20+

0

15

MTD 720-0274

Grip, 1.0 ID x 5.0

$11.99

$

In Stock, Qty 11

0

16

MTD 720-04039

Knob, Shift

$10.99

$

In Stock, only 2 left!

0

17

MTD 731-04894A

Lock Plate
(Superseded to 731-04894D)

$5.49

$

In Stock, Qty 11

0

18

MTD 731-04896A

Cam, Clutch Lock
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

19

MTD 732-0193

Spring, .39 x .60 x .88

$4.99

$

In Stock, Qty 6

0

20

MTD 732-04219

Spring, Clutch Lock
(Superseded to 732-04219C)

$4.49

$

In Stock, Qty 20+

0

21

MTD 732-04238

Spring, Torsion, 0.8156 ID x .3038
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

22

MTD 736-0451

Washer, Saddle, 320 x .93 x .060

$4.49

$

In Stock, Qty 11

0

23

MTD 735-0199A

Bumper, Rubber, .62 OD x .22

$7.99

$

In Stock, only 4 left!

0

24

MTD 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

In Stock, Qty 10

0

25

MTD 738-04118

Bolt, Shoulder, 5/16-18 x 0.905

$5.49

$

Usually ships in 3-6 days

0

26

MTD 738-04122

Screw, Shoulder, .43 x 1.3, 1/4 -20
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

27

MTD 731-04869

Chute, Flange Keeper
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0

28

MTD 746-04228

Cable, Speed Selector
(Superseded to 746-04228A)

$23.99

$

In Stock, Qty 7

0

29

MTD 746-0605

Houlder, Cable Barrel, LH
(Superseded to 946-0605)

$4.49

$

In Stock, Qty 20+

0

30

MTD 747-04263

Eye Bolt, Chute Crank

$9.49

$

In Stock, only 2 left!

0

31

MTD 790-00202

Shift Lever

Variations

MTD 790-00202-0637

LEVER:SPEED SHIFT - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 731-04912A

Chute, Lower, 5.0 Dia.
(Superseded to 731-04912B)

$38.99

$

In Stock, Qty 11

0

33

MTD 710-0276

Bolt, Carriage, 5/16-18, 1.0

$3.99

$

In Stock, Qty 20+

0

34

MTD 710-04071

Bolt, Carriage, 5/16-18, 1.0

$4.49

$

In Stock, Qty 13

0

35

MTD 710-0451

Bolt, Carriage, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

36

MTD 731-04426A

Chute, Upper, w/ Label
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

37

MTD 736-0159

Washer, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

38

MTD 741-0475

Bushing, Plastic, .380
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

39

MTD 784-5647

Bracket, Chute Crank
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

40

MTD 684-04104

Crank Assembly, Chute
(Superseded to 684-04104-0637)

Variations

MTD 684-04104-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$62.99

$

Usually ships in 3-6 days

0

$62.99

$

Usually ships in 3-6 days

0

41

MTD 710-0449

Screw, Carriage, 5/16-18, 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

42

MTD 710-1260A

Screw, 5/16-18, 0.75, Gr5

$3.99

$

In Stock, Qty 20+

0

43

MTD 714-0104

Pin, Cotter, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

44

MTD 720-0201A

Crank Knob, 1.0 Dia. x 3.2 Black

$10.99

$

In Stock, Qty 5

0

45

MTD 720-0284

Knob Assembly, Wing Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

46

MTD 726-0100

Cap, Push, 3/8 Rod

$4.49

$

In Stock, Qty 20+

0

47

MTD 735-0234

Grommet, .44 ID x .94 OD x .5

$5.49

$

In Stock, only 2 left!

0

48

MTD 736-0185

Washer, Flat, .375 x .738 x.063

$3.99

$

In Stock, Qty 20+

0

49

MTD 749-04141

Handle, Upper, RH

Variations

MTD 749-04141-0637

Right Upper Handle - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04141-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

50

MTD 749-04142

Handle, Upper, LH
(Superseded to 749-04191A)

Variations

MTD 749-04142-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04142-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

51

MTD 749-04138

Handle, Lower
(Superseded to 749-04138A)

Variations

MTD 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

52

MTD 747-1136

Retainer, Lens

$11.99

$

Usually ships in 3-6 days

0

53

MTD 725-1658

Lamp, Halogen, 12V, 27W
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

54

MTD 725-1672

Lens Assembly, Lamp
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

55

MTD 725-04220

Wire Harness, Lamp

$20.99

$

Usually ships in 3-6 days

0
