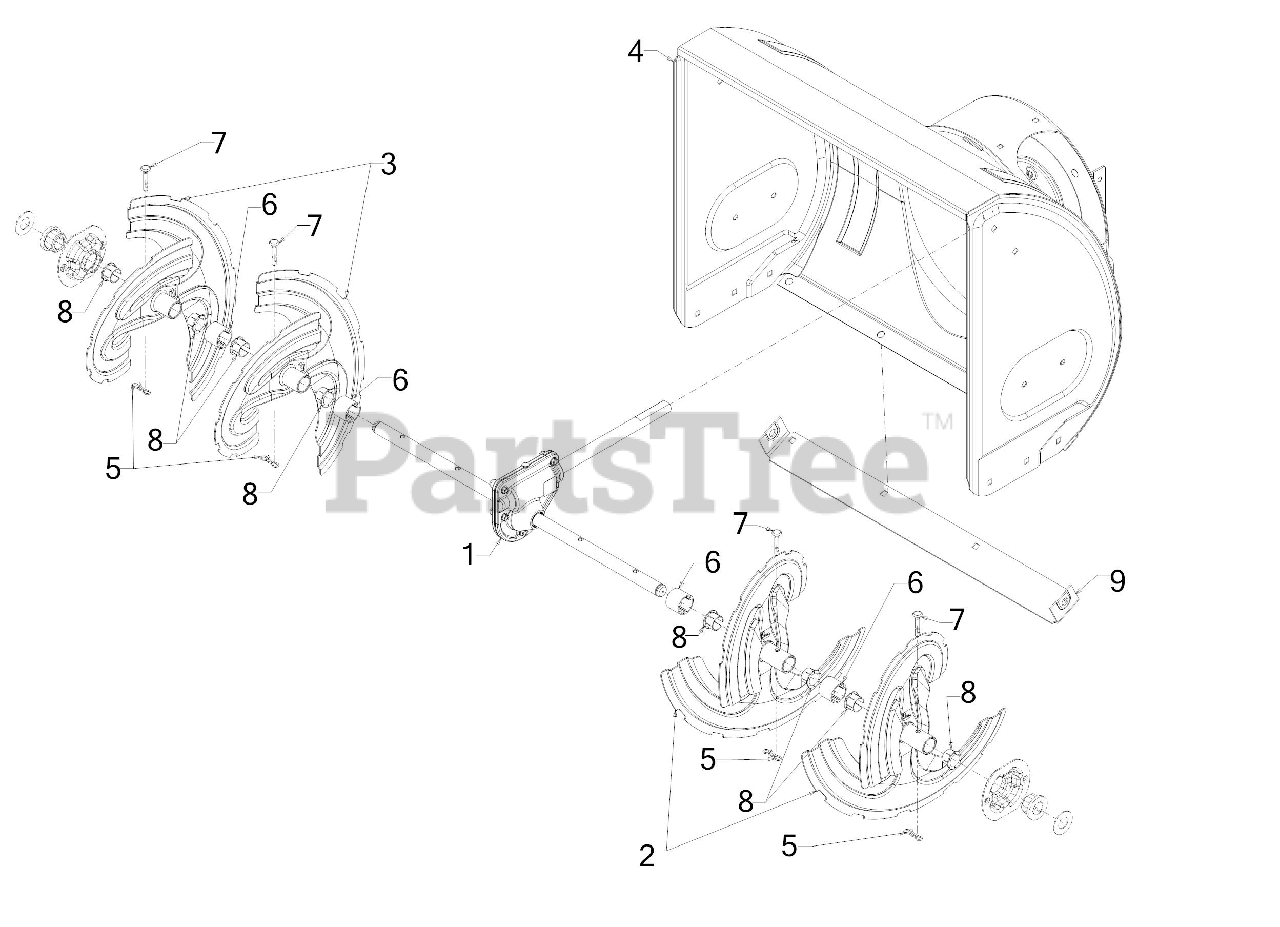

31AS6BEE752 - Yard Machines Snow Thrower (2017) Auger Housing Parts Diagram

Snow Thrower

Auger Housing Parts Diagram

  • Title

1

MTD 918-04171C

24" GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$407.99

$

In Stock, only 2 left!

0

2

MTD 684-04107A

AUGER ASSEMBLY (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-04107A-0637

Auger Spiral Assembly, LH - POWDER BLACK (0637)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-0638

Auger Spiral Assembly, LH - MTD/TROY-BILT RED (0638)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-0499

Auger Spiral Assembly, LH - CUB BEIGE (0499)

$87.99

$

In Stock, Qty 6

0

MTD 684-04107A-0662

Auger Spiral Assembly, LH - OYSTER GRAY (0662)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-0731

Auger Spiral Assembly, LH - YELLOW JACKET (0731)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-4028

Auger Spiral Assembly, LH - SEARS YELLOW (4028)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-0606

Auger Spiral Assembly, LH - MAJESTIC ORANGE (0606)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-0629

Auger Spiral Assembly, LH - SILVER FLAKE (0629)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-0650

Auger Spiral Assembly, LH - RED METALLIC (0650)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-0674

SPIRAL ASM-AUGER LH - YARDMAN YELLOW (0674)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-0689

Auger Spiral Assembly, LH - POLO GREEN (0689)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-0691

SPIRAL ASM-AUGER LH - BLACK JACK (0691)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-0709

SPIRAL ASM-AUGER LH - MASTERCRAFT GREEN (0709)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-0716

Auger Spiral Assembly, LH - CUB YELLOW-99 (0716)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-0717

Auger Spiral Assembly, LH - SILVER MIST (0717)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-4021

Auger Spiral Assembly, LH - CUB YELLOW 2 (4021)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-4033

SPIRAL ASM-AUGER LH - FLINT MICA (4033)

$87.99

$

Usually ships in 3-6 days

0

MTD 684-04107A-4041

Auger Spiral Assembly, LH - PURE ORANGE (4041)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107A-4044

Auger Spiral Assembly, LH - CRAFTSMAN RED (4044)

$89.99

$

In Stock, Qty 20+

0

$72.99

$

Usually ships in 3-6 days

0

3

MTD 684-04108A

AUGER ASSEMBLY (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-04108A-0637

Auger Spiral Assembly, RH - POWDER BLACK (0637)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-0638

Auger Spiral Assembly, RH - MTD/TROY-BILT RED (0638)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-0499

Auger Spiral Assembly, RH - CUB BEIGE (0499)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-0629

Auger Spiral Assembly, RH - SILVER FLAKE (0629)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-0606

Auger Spiral Assembly, RH - MAJESTIC ORANGE (0606)

$92.99

$

Usually ships in 3-6 days

0

MTD 684-04108A-4044

Auger Spiral Assembly, RH - CRAFTSMAN RED (4044)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-0650

Auger Spiral Assembly, RH - RED METALLIC (0650)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-0662

Auger Spiral Assembly, RH - OYSTER GRAY (0662)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-0674

Auger Spiral Assembly, RH - YARDMAN YELLOW (0674)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-0689

SPIRAL ASM-AUGER RH - POLO GREEN (0689)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-0691

Auger Spiral Assembly, RH - BLACK JACK (0691)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-0709

SPIRAL ASM-AUGER RH - MASTERCRAFT GREEN (0709)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-0716

Auger Spiral Assembly, RH - CUB YELLOW-99 (0716)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-0717

SPIRAL ASM-AUGER RH - SILVER MIST (0717)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-0731

Auger Spiral Assembly, RH - YELLOW JACKET (0731)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-4021

Auger Spiral Assembly, RH - CUB YELLOW 2 (4021)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-4028

SPIRAL ASM-AUGER RH - SEARS YELLOW (4028)

$92.99

$

Usually ships in 3-6 days

0

MTD 684-04108A-4033

SPIRAL ASM-AUGER RH - FLINT MICA (4033)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108A-4041

Auger Spiral Assembly, RH - PURE ORANGE (4041)

$94.99

$

In Stock, Qty 10

0

$76.99

$

Usually ships in 3-6 days

0

4

MTD 684-05202

24" AUGER HOUSING ASSEMBLY
(Superseded to 684-05202A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-05202-0638

HSG ASM-AUGER 24" - MTD/TROY-BILT RED (0638)

$316.99

$

Usually ships in 3-6 days

0

MTD 684-05202-0691

HSG ASM-AUGER 24" - BLACK JACK (0691)

$275.99

$

Usually ships in 3-6 days

0

MTD 684-05202-0709

HSG ASM-AUGER 24" - MASTERCRAFT GREEN (0709)

$255.99

$

Usually ships in 3-6 days

0

MTD 684-05202-4041

HSG ASM-AUGER 24" - PURE ORANGE (4041)

$255.99

$

Usually ships in 3-6 days

0

MTD 684-05202-4043

HSG ASM-AUGER 24" - CRAFTSMAN METALLIC GRAY (4043)

$294.99

$

Usually ships in 3-6 days

0

MTD 684-05202-4044

HSG ASM-AUGER 24" - CRAFTSMAN RED (4044)

$316.99

$

Usually ships in 3-6 days

0

MTD 684-05202-4062

HSG ASM-AUGER 24" - COOL GRAY (4062)

$255.99

$

Usually ships in 3-6 days

0

$255.99

$

Usually ships in 3-6 days

0

5

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

MTD 731-04870

SPACER 1.25OD x .75ID X1.00 LG

$4.99

$

In Stock, Qty 20+

0

7

MTD 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

8

MTD 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

9

MTD 790-00120

24" SHAVE PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00120-0637

Shave Plate, 24" Powder Black - POWDER BLACK

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0638

Shave Plate, 24" Mtd/Troy-Bilt Red - MTD/TROY-BILT RED

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0606

Shave Plate, 24" Orange - MAJESTIC ORANGE

$34.99

$

In Stock, Qty 20+

0

Cub Cadet 790-00120-4044

Shave Plate, 24" Red - CRAFTSMAN RED

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4044

Shave Plate, 24" Red - CRAFTSMAN RED

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4021

Shave Plate, 24" Yellow - CUB YELLOW 2

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0691

Shave Plate, 24" Black - BLACK JACK

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4062

Shave Plate, 24" - COOL GRAY (4062)

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0665

Shave Plate, 24" - YARDMAN GREEN

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4043

Shave Plate, 24" - CRAFTSMAN METALLIC GRAY

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0662

Shave Plate, 24" Gray - OYSTER GRAY

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0689

Shave Plate, 24" - POLO GREEN

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0709

Shave Plate, 24" - MASTERCRAFT GREEN

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4041

Shave Plate, 24" - PURE ORANGE

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0729

PLATE-SHAVE 24" - STORM GRAY

$

$

Not available

$29.99

$

Usually ships in 3-6 days

0
