31AS6BEE700 - Yard Machines Snow Thrower (2018) Handle Panel Parts Diagram

Snow Thrower

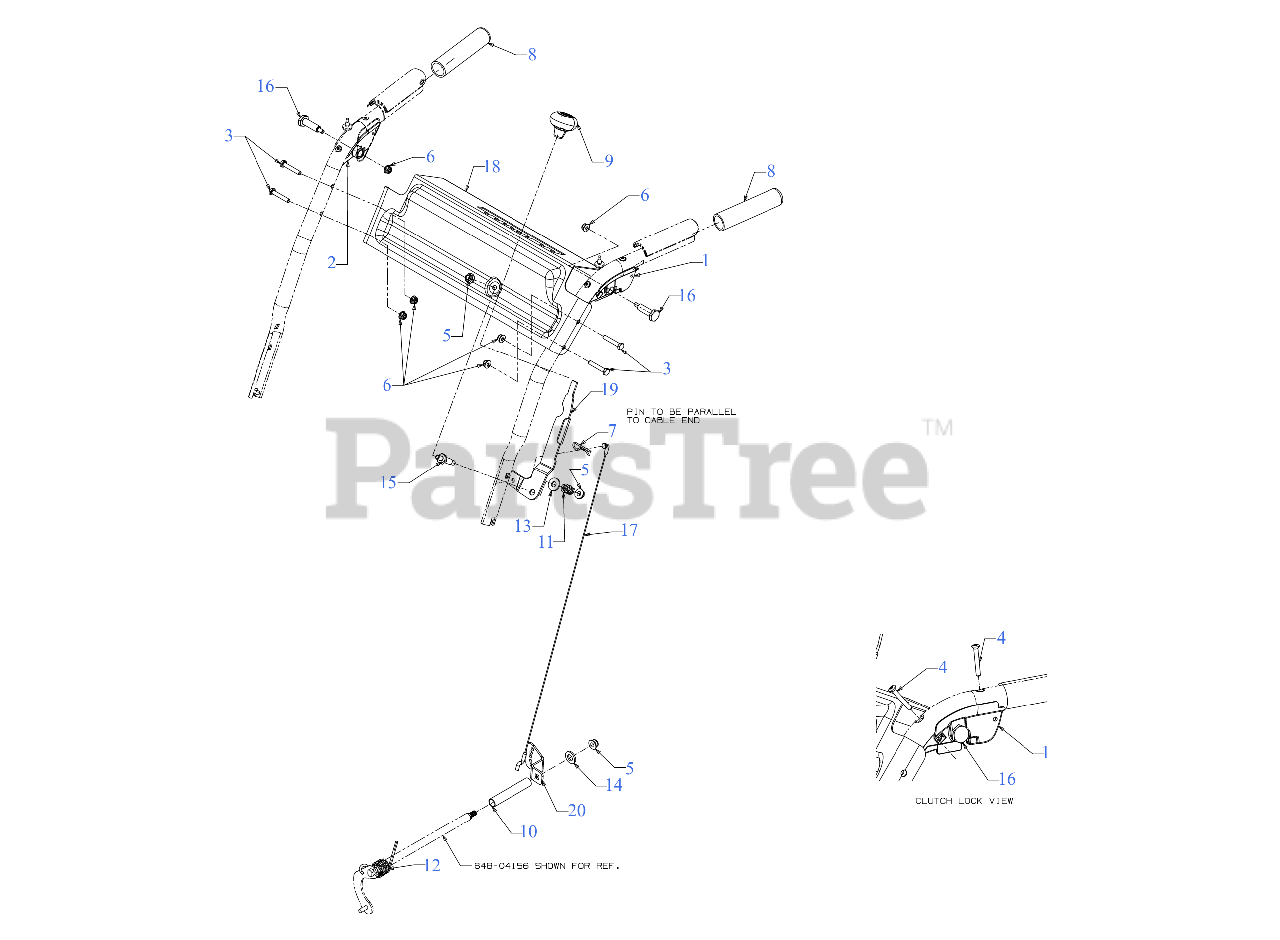

Handle Panel Parts Diagram

  • Title
1

MTD 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, Qty 7

0

2

MTD 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$15.99

$

Usually ships in 3-6 days

0

3

MTD 710-0606

SCREW 1/4-20 x 1.50 GR.5

$5.49

$

In Stock, Qty 10

0

4

MTD 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

5

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

7

MTD 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

8

$11.99

$

In Stock, Qty 8

0

9

MTD 720-04039

SHIFT KNOB

$10.99

$

In Stock, only 1 left!

0

10

MTD 731-16011

COVER .505 X .635 X 3.64

$3.49

$

Usually ships in 3-6 days

0

11

MTD 732-0193

COMPRESSION SPRING

$4.99

$

In Stock, Qty 6

0

12

MTD 732-04311A

TORSION SPRING

$10.99

$

In Stock, only 3 left!

0

13

MTD 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

14

MTD 936-3015

FLAT WASHER

$4.49

$

In Stock, Qty 19

0

15

MTD 738-04118

SHOULDER BOLT

$5.49

$

Usually ships in 3-6 days

0

16

MTD 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

17

MTD 946-04397A

SPEED SELECTOR CABLE (STEEL)

$20.99

$

In Stock, Qty 8

0

18

MTD 790-00219A

HANDLE PANEL-STEEL W/O CUTOUT

Note: (Choose Color When Ordering)

Variations

MTD 790-00219A-0637

PANEL-STEEL HNDL - POWDER BLACK (0637)

$72.99

$

Usually ships in 3-6 days

0

MTD 790-00219A-0638

PANEL-STEEL HNDL - MTD/TROY-BILT RED (0638)

$72.99

$

Usually ships in 3-6 days

0

MTD 790-00219A-0691

PANEL-STEEL HNDL - BLACK JACK (0691)

$63.99

$

Usually ships in 3-6 days

0

MTD 790-00219A-0709

PANEL-STEEL HNDL - MASTERCRAFT GREEN (0709)

$63.99

$

Usually ships in 3-6 days

0

MTD 790-00219A-4043

PANEL-STEEL HNDL - CRAFTSMAN METALLIC GRAY (4043)

$72.99

$

Usually ships in 3-6 days

0

MTD 790-00219A-4044

PANEL-STEEL HNDL - CRAFTSMAN RED (4044)

$72.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

19

MTD 790-00313A

SPEED SHIFT LEVER

Note: (Choose Color When Ordering)

Variations

MTD 790-00313A-0637

LVR-SPEED SHIFT - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

20

MTD 790-01117

SPEED SELECT SHIFT BRACKET
(Superseded to 790P01117)

$53.99

$

Usually ships in 3-6 days

0
