31AS6BCE752 - Yard Machines Snow Thrower (2006) (Walmart) General Assembly Parts Diagram

Snow Thrower

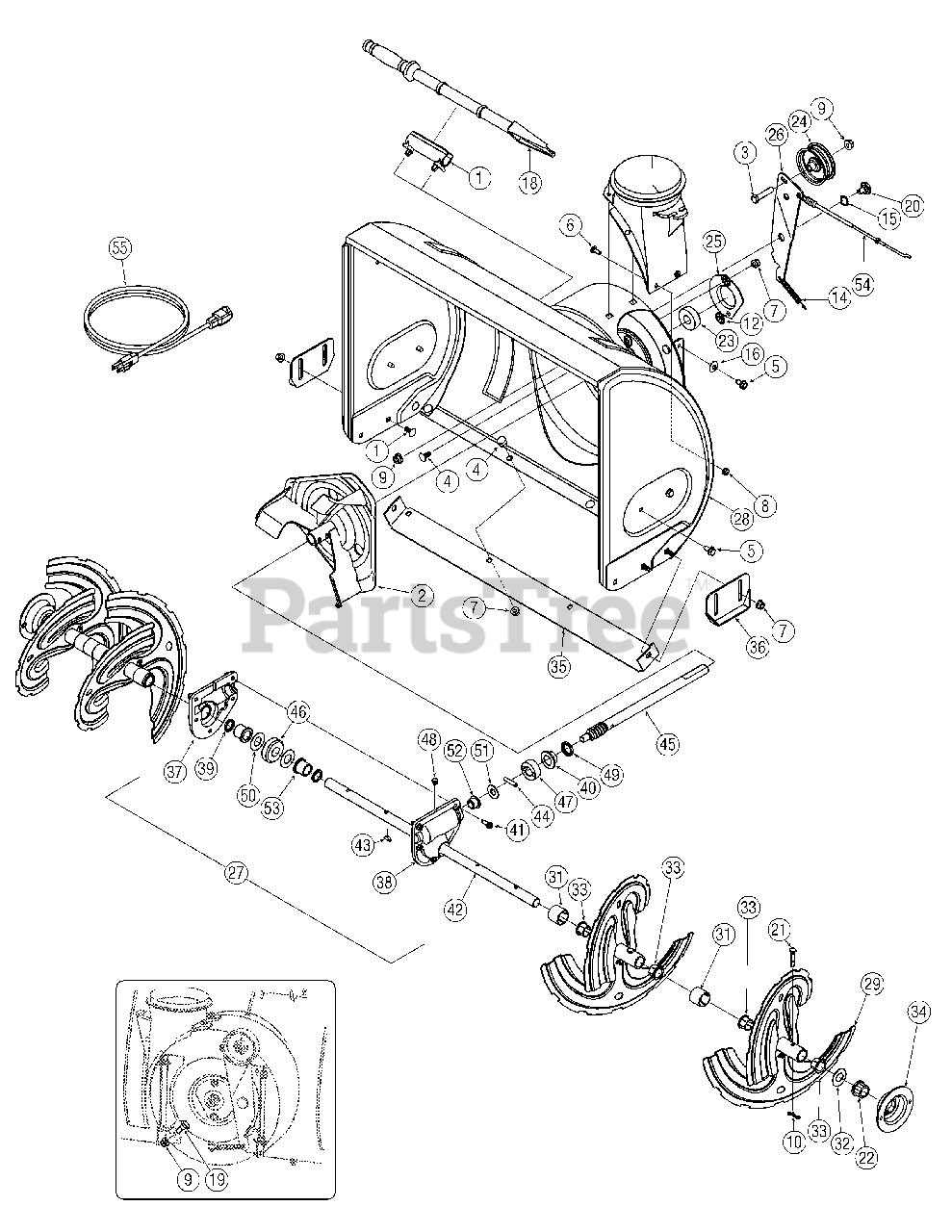

General Assembly Parts Diagram

  • Title

1

MTD 731-2635

Snow Removal Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 6

0

2

MTD 684-04057

Impeller Assembly, 12" Dia.
(Superseded to 684-04057C-0637)

Variations

MTD 684-04057-0637

Impeller, 3-Blade 12" - POWDER BLACK (0637)

$73.99

$

In Stock, Qty 13

0

$73.99

$

In Stock, Qty 13

0

3

MTD 710-0347

Hex Screw, 3/8-16, 1.75, Gr5

$5.49

$

In Stock, Qty 20+

0

4

MTD 710-0451

Bolt, Carriage, 5/16-18, .750 Gr1

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0604A

Screw, 5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0703

Screw, Carriage, 1/4-20, .750, Gr5

$4.49

$

In Stock, Qty 15

0

7

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 16

0

10

MTD 714-04040

Cotter Pin, Bow-tie

$1.49

$

In Stock, Qty 20+

0

11

MTD 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

12

MTD 726-04012

Nut, Push-on, .25 Dia

$7.49

$

In Stock, Qty 9

0

13

MTD 731-04705

Chute, Adapter 5" Dia
(Superseded to 731-04705D)

$26.99

$

In Stock, only 2 left!

0

14

MTD 732-0611

Spring, Extension, .38 OD x 3.6
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

15

MTD 736-0174

Washer, Wave, .625 x .885 x .015

$6.99

$

In Stock, Qty 12

0

16

MTD 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0463

Washer, Flat, .25 x .630 x .0515

$4.49

$

In Stock, Qty 12

0

18

MTD 731-2643

Snow Removal Tool
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 17

0

19

MTD 738-0143

Screw, Shoulder, .498 x .34, 3/8-16

$4.49

$

In Stock, Qty 20+

0

20

MTD 738-0281

Screw, Shoulder, .625 x .17, 3/8-16

$10.99

$

In Stock, only 1 left!

0

21

MTD 738-04124A

Shear Pin, .25 x 1.50

$1.99

$

In Stock, Qty 20+

0

22

MTD 741-0245

Bearing, Hex Flange x .75 ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

23

MTD 741-0309

Bearing, Ball, .75 ID x 1.85 OD
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

24

MTD 756-0981A

Flat Pulley, Idler, 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

25

MTD 790-00075

Housing, Bearing, 1.85 ID
(Superseded to 790-00075B)

$6.49

$

Usually ships in 3-6 days

0

26

MTD 790-00080

Bracket, Auger Idler w/ Brake
(Superseded to 790-00080D)

Variations

Cub Cadet 790-00080

USE 790-00080C BRACKET-AUGER - POWDER BLACK

$28.99

$

In Stock, only 3 left!

0

$28.99

$

In Stock, only 3 left!

0

27

MTD 618-04170

Gearbox Assembly, Auger, 22"
(Superseded to 918-04170C)

$399.99

$

In Stock, only 2 left!

0

27

MTD 618-04171

Gearbox Assembly, Auger, 24"
(Superseded to 918-04171C)

$407.99

$

In Stock, only 2 left!

0

27

MTD 618-04172

Gearbox Assembly, Auger, 26"
(Superseded to 918-04172C)

$434.99

$

Usually ships in 3-6 days

0

27

MTD 618-04173

Gearbox Assembly, Auger, 28"
(Superseded to 918-04173B)

$331.99

$

In Stock, only 1 left!

0

28

MTD 684-04067

Housing Assembly, Auger 22"

Variations

MTD 684-04067-0638

HOUSING-AUGER 22" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04067-0665

HOUSING-AUGER 22" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-04067-0684

HOUSING-AUGER 22" - ZINC YELLOW (0684)

$

$

Not available

MTD 684-04067-4044

No Longer Available HOUSING-AU - CRAFTSMAN RED (4044)

$

$

Not available

$

$

28

MTD 684-04069

Housing Assembly, Auger 24"

Variations

MTD 684-04069-0638

HOUSING-AUGER 24" - MTD/TROY-BILT RED (0638)

$388.99

$

Usually ships in 3-6 days

0

MTD 684-04069-0691

HOUSING-AUGER 24" - BLACK JACK (0691)

$388.99

$

Usually ships in 3-6 days

0

MTD 684-04069-0721

HOUSING-AUGER 24" - SEARS RED (0721)

$388.99

$

Usually ships in 3-6 days

0

MTD 684-04069-4044

HOUSING-AUGER 24" - CRAFTSMAN RED (4044)

$388.99

$

Usually ships in 3-6 days

0

MTD 684-04069-0689

HOUSING-AUGER 24" - POLO GREEN (0689)

$

$

Not available

MTD 684-04069-0665

HOUSING-AUGER 24" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-04069-0709

HOUSING-AUGER 24" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 684-04069-0729

HOUSING-AUGER 24" - STORM GRAY (0729)

$

$

Not available

$338.99

$

Usually ships in 3-6 days

0

28

MTD 684-04071

Housing Assembly, Auger 26"

Variations

MTD 684-04071-0638

HOUSING-AUGER 26" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04071-0606

HOUSING-AUGER 26" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 684-04071-0650

HOUSING-AUGER 26" - RED METALLIC (0650)

$

$

Not available

MTD 684-04071-0662

HOUSING-AUGER 26" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-04071-0665

HOUSING-AUGER 26" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-04071-0668

HOUSING-AUGER 26" - MOSS GREEN (0668)

$

$

Not available

MTD 684-04071-0689

HOUSING-AUGER 26" - POLO GREEN (0689)

$

$

Not available

MTD 684-04071-0691

HOUSING-AUGER 26" - BLACK JACK (0691)

$

$

Not available

MTD 684-04071-0709

HOUSING-AUGER 26" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 684-04071-0716

HOUSING-AUGER 26" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 684-04071-4033

HOUSING-AUGER 26" - FLINT MICA (4033)

$

$

Not available

MTD 684-04071-4044

HOUSING-AUGER 26" - CRAFTSMAN RED (4044)

$

$

Not available

$

$

28

MTD 684-04073

Housing Assembly, Auger 28"

Variations

MTD 684-04073-0691

HOUSING-AUGER 28" - BLACK JACK (0691)

$456.99

$

Usually ships in 3-6 days

0

MTD 684-04073-0716

HOUSING-AUGER 28" - CUB YELLOW-99 (0716)

$424.99

$

Usually ships in 3-6 days

0

MTD 684-04073-0606

HOUSING-AUGER 28" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 684-04073-0650

HOUSING-AUGER 28" - RED METALLIC (0650)

$

$

Not available

MTD 684-04073-0662

HOUSING-AUGER 28" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-04073-0638

HOUSING-AUGER 28" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04073-0665

HOUSING-AUGER 28" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-04073-0668

HOUSING-AUGER 28" - MOSS GREEN (0668)

$

$

Not available

MTD 684-04073-0689

HOUSING-AUGER 28" - POLO GREEN (0689)

$

$

Not available

MTD 684-04073-0709

HOUSING-AUGER 28" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 684-04073-0721

HOUSING-AUGER 28" - SEARS RED (0721)

$

$

Not available

MTD 684-04073-4044

HOUSING-AUGER 28" - CRAFTSMAN RED (4044)

$

$

Not available

$369.99

$

Usually ships in 3-6 days

0

29

MTD 684-04107

Spiral Assembly, LH
(Superseded to 684-04107A)

Variations

MTD 684-04107-0637

Auger Spiral Assembly, LH - POWDER BLACK (0637)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-0638

Auger Spiral Assembly, LH - MTD/TROY-BILT RED (0638)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-0499

Auger Spiral Assembly, LH - CUB BEIGE (0499)

$87.99

$

In Stock, Qty 6

0

MTD 684-04107-0662

Auger Spiral Assembly, LH - OYSTER GRAY (0662)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-0731

Auger Spiral Assembly, LH - YELLOW JACKET (0731)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-4028

Auger Spiral Assembly, LH - SEARS YELLOW (4028)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-0606

Auger Spiral Assembly, LH - MAJESTIC ORANGE (0606)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-0629

Auger Spiral Assembly, LH - SILVER FLAKE (0629)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-0650

Auger Spiral Assembly, LH - RED METALLIC (0650)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-0674

SPIRAL ASM-AUGER LH - YARDMAN YELLOW (0674)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-0689

Auger Spiral Assembly, LH - POLO GREEN (0689)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-0709

AUGER ASM-LH - MASTERCRAFT GREEN (0709)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-0716

Auger Spiral Assembly, LH - CUB YELLOW-99 (0716)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-0717

Auger Spiral Assembly, LH - SILVER MIST (0717)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-4021

Auger Spiral Assembly, LH - CUB YELLOW 2 (4021)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-4033

SPIRAL ASM-AUGER LH - FLINT MICA (4033)

$87.99

$

Usually ships in 3-6 days

0

MTD 684-04107-4041

Auger Spiral Assembly, LH - PURE ORANGE (4041)

$89.99

$

In Stock, Qty 7

0

MTD 684-04107-4044

Auger Spiral Assembly, LH - CRAFTSMAN RED (4044)

$89.99

$

In Stock, Qty 7

0

$72.99

$

Usually ships in 3-6 days

0

30

MTD 684-04108

Spiral Assembly, RH
(Superseded to 684-04108A)

Variations

MTD 684-04108-0637

Auger Spiral Assembly, RH - POWDER BLACK (0637)

$94.99

$

In Stock, Qty 13

0

MTD 684-04108-0638

Auger Spiral Assembly, RH - MTD/TROY-BILT RED (0638)

$94.99

$

In Stock, Qty 13

0

MTD 684-04108-0499

Auger Spiral Assembly, RH - CUB BEIGE (0499)

$94.99

$

In Stock, Qty 13

0

MTD 684-04108-4028

Auger Assembly, 21" RH - SEARS YELLOW (4028)

$92.99

$

Usually ships in 3-6 days

0

MTD 684-04108-0606

Auger Spiral Assembly, RH - MAJESTIC ORANGE (0606)

$92.99

$

Usually ships in 3-6 days

0

MTD 684-04108-0629

Auger Spiral Assembly, RH - SILVER FLAKE (0629)

$94.99

$

In Stock, Qty 13

0

MTD 684-04108-4044

Auger Spiral Assembly, RH - CRAFTSMAN RED (4044)

$94.99

$

In Stock, Qty 13

0

MTD 684-04108-0650

Auger Spiral Assembly, RH - RED METALLIC (0650)

$94.99

$

In Stock, Qty 13

0

MTD 684-04108-0662

Auger Spiral Assembly, RH - OYSTER GRAY (0662)

$94.99

$

In Stock, Qty 13

0

MTD 684-04108-0674

Auger Spiral Assembly, RH - YARDMAN YELLOW (0674)

$94.99

$

In Stock, Qty 13

0

MTD 684-04108-0709

SPIRAL ASM-AUGER RH - MASTERCRAFT GREEN (0709)

$94.99

$

In Stock, Qty 13

0

MTD 684-04108-0716

Auger Spiral Assembly, RH - CUB YELLOW-99 (0716)

$94.99

$

In Stock, Qty 13

0

MTD 684-04108-0717

AUGER ASM-RH - SILVER MIST (0717)

$94.99

$

In Stock, Qty 13

0

MTD 684-04108-0731

Auger Spiral Assembly, RH - YELLOW JACKET (0731)

$94.99

$

In Stock, Qty 13

0

MTD 684-04108-4021

Auger Spiral Assembly, RH - CUB YELLOW 2 (4021)

$94.99

$

In Stock, Qty 13

0

MTD 684-04108-4033

SPIRAL ASM-AUGER RH - FLINT MICA (4033)

$94.99

$

In Stock, Qty 13

0

MTD 684-04108-4041

Auger Spiral Assembly, RH - PURE ORANGE (4041)

$94.99

$

In Stock, Qty 13

0

$76.99

$

Usually ships in 3-6 days

0

31

MTD 731-04870

Spacer, 1.25 OD x .75 ID x 1.00

Note: None found between spirals on models with 22 inch auger housing, One found between spirals on models with 24 inch auger housing, Two found between spirals on models with 26 inch auger housing, Three found between spirals on models with 28 inch auger housing.

$4.99

$

In Stock, Qty 18

0

32

MTD 736-0188

Washer, Flat, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

33

MTD 741-0493A

Bushing, Flange, .80 ID x .91 OD
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

34

MTD 790-00087A

Housing, 1" Hex Bearing

Variations

MTD 790-00087A-0637

Bearing Housing, 1" - POWDER BLACK

$22.99

$

In Stock, Qty 8

0

MTD 790-00087A-0638

Bearing Housing, 1" - MTD/TROY-BILT RED

$22.99

$

In Stock, Qty 8

0

$21.99

$

Usually ships in 3-6 days

0

35

MTD 790-00117

Shave Plate, 2.25 x 21.66

Variations

MTD 790-00117-0637

Shave Plate, 22" Black - POWDER BLACK

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-0638

Shave Plate, 22" - MTD/TROY-BILT RED

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-4044

Shave Plate, 22" - CRAFTSMAN RED

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-0709

Shave Plate, 22" Green - MASTERCRAFT GREEN

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-0662

Shave Plate, 22" - OYSTER GRAY

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-0691

Shave Plate, 22" - BLACK JACK

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-4041

Shave Plate, 22" - PURE ORANGE

$30.99

$

In Stock, Qty 20+

0

MTD 790-00117-4043

Shave Plate, 22" - CRAFTSMAN METALLIC GRAY

$30.99

$

In Stock, Qty 20+

0

$25.99

$

Usually ships in 3-6 days

0

35

MTD 790-00120

Shave Plate, 2.25 x 23.66

Variations

MTD 790-00120-0637

Shave Plate, 24" Powder Black - POWDER BLACK

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0638

Shave Plate, 24" Mtd/Troy-Bilt Red - MTD/TROY-BILT RED

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0606

Shave Plate, 24" Orange - MAJESTIC ORANGE

$34.99

$

In Stock, Qty 20+

0

Cub Cadet 790-00120-4044

Shave Plate, 24" Red - CRAFTSMAN RED

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4044

Shave Plate, 24" Red - CRAFTSMAN RED

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4021

Shave Plate, 24" Yellow - CUB YELLOW 2

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0691

Shave Plate, 24" Black - BLACK JACK

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4062

Shave Plate, 24" - COOL GRAY (4062)

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0665

Shave Plate, 24" - YARDMAN GREEN

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4043

Shave Plate, 24" - CRAFTSMAN METALLIC GRAY

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0662

Shave Plate, 24" Gray - OYSTER GRAY

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0689

Shave Plate, 24" - POLO GREEN

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0709

Shave Plate, 24" - MASTERCRAFT GREEN

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4041

Shave Plate, 24" - PURE ORANGE

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0729

PLATE-SHAVE 24" - STORM GRAY

$

$

Not available

$29.99

$

Usually ships in 3-6 days

0

35

MTD 790-00121

Shave Plate, 2.25 x 25.66

Variations

MTD 790-00121-0637

Shave Plate, 26" Powder Black - POWDER BLACK

$36.99

$

In Stock, Qty 20+

0

MTD 790-00121-0638

Shave Plate, 26" Red - MTD/TROY-BILT RED

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 790-00121-4044

Shave Plate, 26" - CRAFTSMAN RED

$36.99

$

In Stock, Qty 20+

0

MTD 790-00121-4044

Shave Plate, 26" - CRAFTSMAN RED

$36.99

$

In Stock, Qty 20+

0

MTD 790-00121-4021

Shave Plate, 26" - CUB YELLOW 2

$36.99

$

In Stock, Qty 20+

0

MTD 790-00121-0606

Shave Plate, 26" - MAJESTIC ORANGE

$36.99

$

In Stock, Qty 20+

0

MTD 790-00121-4062

Shave Plate, 26" - COOL GRAY (4062)

$36.99

$

In Stock, Qty 20+

0

MTD 790-00121-0689

PLATE-SHAVE 26" - POLO GREEN

$36.99

$

In Stock, Qty 20+

0

MTD 790-00121-0691

Shave Plate, 26" - BLACK JACK

$36.99

$

In Stock, Qty 20+

0

MTD 790-00121-0709

Shave Plate, 26" - MASTERCRAFT GREEN

$36.99

$

In Stock, Qty 20+

0

MTD 790-00121-0650

Shave Plate, 26" - RED METALLIC

$36.99

$

In Stock, Qty 20+

0

MTD 790-00121-0662

Shave Plate, 26" - OYSTER GRAY

$36.99

$

In Stock, Qty 20+

0

MTD 790-00121-4033

Shave Plate, 26" - FLINT MICA

$36.99

$

In Stock, Qty 20+

0

MTD 790-00121-4041

Shave Plate, 26" - PURE ORANGE

$36.99

$

In Stock, Qty 20+

0

$30.99

$

Usually ships in 3-6 days

0

35

MTD 790-00118

Shave Plate, 2.25 x 27.66

Variations

MTD 790-00118-0637

Shave Plate, 28" Powder Black - POWDER BLACK

$37.99

$

In Stock, only 2 left!

0

MTD 790-00118-0606

Shave Plate, 28" - MAJESTIC ORANGE

$37.99

$

In Stock, only 2 left!

0

MTD 790-00118-0638

Shave Plate, 28" Red - MTD/TROY-BILT RED

$37.99

$

In Stock, only 2 left!

0

Cub Cadet 790-00118-4044

Shave Plate, 28" - CRAFTSMAN RED

$37.99

$

In Stock, only 2 left!

0

MTD 790-00118-4044

Shave Plate, 28" - CRAFTSMAN RED

$37.99

$

In Stock, only 2 left!

0

MTD 790-00118-4021

Shave Plate, 28" Yellow - CUB YELLOW 2

$37.99

$

In Stock, only 2 left!

0

MTD 790-00118-0691

Shave Plate, 28" Black - BLACK JACK

$37.99

$

In Stock, only 2 left!

0

MTD 790-00118-0650

PLATE-SHAVE 28" - RED METALLIC

$37.99

$

In Stock, only 2 left!

0

MTD 790-00118-0665

Shave Plate, 28" - YARDMAN GREEN

$37.99

$

In Stock, only 2 left!

0

MTD 790-00118-0709

PLATE-SHAVE 28" - MASTERCRAFT GREEN

$37.99

$

In Stock, only 2 left!

0

MTD 790-00118-0662

Shave Plate, 28" - OYSTER GRAY

$37.99

$

In Stock, only 2 left!

0

$35.99

$

Usually ships in 3-6 days

0

36

MTD 784-5580

Slide Shoe

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

37

MTD 719-0319

Housing, Auger, RH Reduced
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 13

0

38

MTD 719-0320

Housing, Auger, LH Reduced
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 18

0

39

MTD 721-0179

Seal, Oil, .750 ID

$8.99

$

In Stock, only 2 left!

0

40

MTD 741-0662

Bearing, Flange, .75 x 1.0 x .59

$10.99

$

In Stock, Qty 20+

0

41

MTD 710-0642

Screw, Self-tapping, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

42

MTD 711-04286

Axle, Auger, 22"
(Superseded to 711-04286A)

$45.99

$

Usually ships in 3-6 days

0

42

MTD 711-04285

Axle, Auger, 24"
(Superseded to 711-04285A)

$90.99

$

In Stock, only 1 left!

0

42

MTD 711-04284

Axle, Auger, 26"
(Superseded to 711-06144)

$82.99

$

In Stock, only 1 left!

0

42

MTD 711-04283

Axle, Auger, 28"
(Superseded to 711-06145)

$89.99

$

In Stock, only 2 left!

0

43

MTD 714-0161

Key, Hi-pro 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

44

MTD 715-04021

Pin, Dowel, .25 OD x 1.2

$4.49

$

In Stock, Qty 17

0

45

MTD 717-04126

Shaft, Worm .75 OD
(Superseded to 917-04126)

$79.99

$

In Stock, only 3 left!

0

46

MTD 717-0528A

Gear, Worm 20T
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

47

MTD 718-04071

Collar, Thrust

$7.99

$

In Stock, Qty 10

0

48

MTD 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, only 4 left!

0

49

MTD 721-0327

Seal, Oil, .75 x 1 x .131

$6.99

$

In Stock, Qty 20+

0

50

MTD 736-0351

Washer, Flat, .760 ID x 1.5 OD

$4.49

$

In Stock, Qty 20+

0

51

MTD 736-3084

Washer, Flat, .51 x 1.12

$4.99

$

In Stock, Qty 20+

0

52

MTD 741-0663

Bearing, Flange, .75 x 1.0 x .925

$9.99

$

In Stock, Qty 20+

0

53

MTD 741-0661A

Bearing, Flange, .75 x 1.00 x .975
(Superseded to 741-0661B)

$10.99

$

In Stock, Qty 6

0

54

MTD 746-04230

Clutch Cable, Auger, 47.23"
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

55

MTD 629-0071

Extention Cord, 110V
(Superseded to 929-0071B)

$21.99

$

Usually ships in 3-6 days

0
