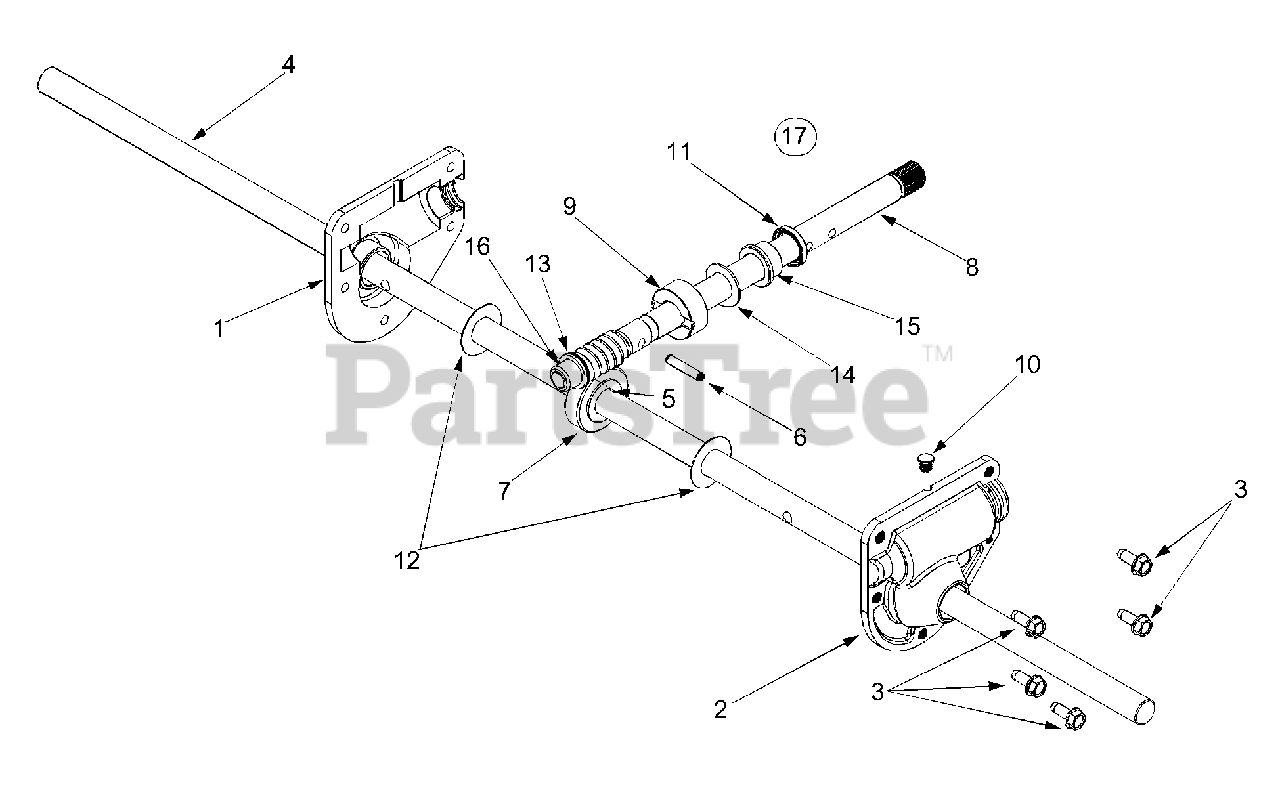

31AS644E000 - Yard Machines Snow Thrower (2003) Gear Assembly Parts Diagram

Snow Thrower

Gear Assembly Parts Diagram

  • Title

1

MTD 918-0123A

Housing RH

$52.99

$

In Stock, Qty 20+

0

2

MTD 918-0124A

Housing LH

$52.99

$

In Stock, Qty 17

0

3

MTD 710-0642

Hex Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-1020A

Spiral Axle 22"

$

$

Not available

4

MTD 711-0908A

Spiral Axle 24"

$

$

Not available

4

MTD 711-0909A

Spiral Axle 26"

$

$

Not available

5

MTD 914-0161

Key

$4.49

$

In Stock, Qty 20+

0

6

MTD 915-0143

Pin-Spiral
(Superseded to 715-0143)

$

$

Not available

7

MTD 917-0528A

Gear-Worm
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

8

MTD 717-0526

Shaft-Worm
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 5

0

9

MTD 718-0186

Collar-Thrust

$8.49

$

In Stock, Qty 12

0

10

MTD 721-0325

Plug

$4.49

$

In Stock, Qty 20+

0

11

MTD 721-0327

Seal-Oil

$6.99

$

In Stock, Qty 20+

0

12

MTD 936-0351

Washer-Flat
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

13

MTD 936-0369

Washer-Flat
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

14

MTD 936-0445

Washer-Flat
(Superseded to 736-0445)

$

$

Not available

15

MTD 741-0662

Bearing-Flange

$10.99

$

In Stock, Qty 18

0

16

MTD 741-0663

Bearing-Flange

$9.99

$

In Stock, Qty 20+

0

17

MTD 918-0413B

Ass’y Complete 22"

$

$

Not available

17

MTD 918-0414B

Ass’y Complete 24"

$

$

Not available

17

MTD 918-0415B

Ass’y Complete 26"

$442.99

$

Usually ships in 3-6 days

0

MTD 737-0168A

Grease

Note: (not shown)

$30.99

$

In Stock, Qty 14

0
