31AS2T5E704 - MTD Gold Snow Thrower (2011) 270-JU Carburetor Parts Diagram

Gold Snow Thrower

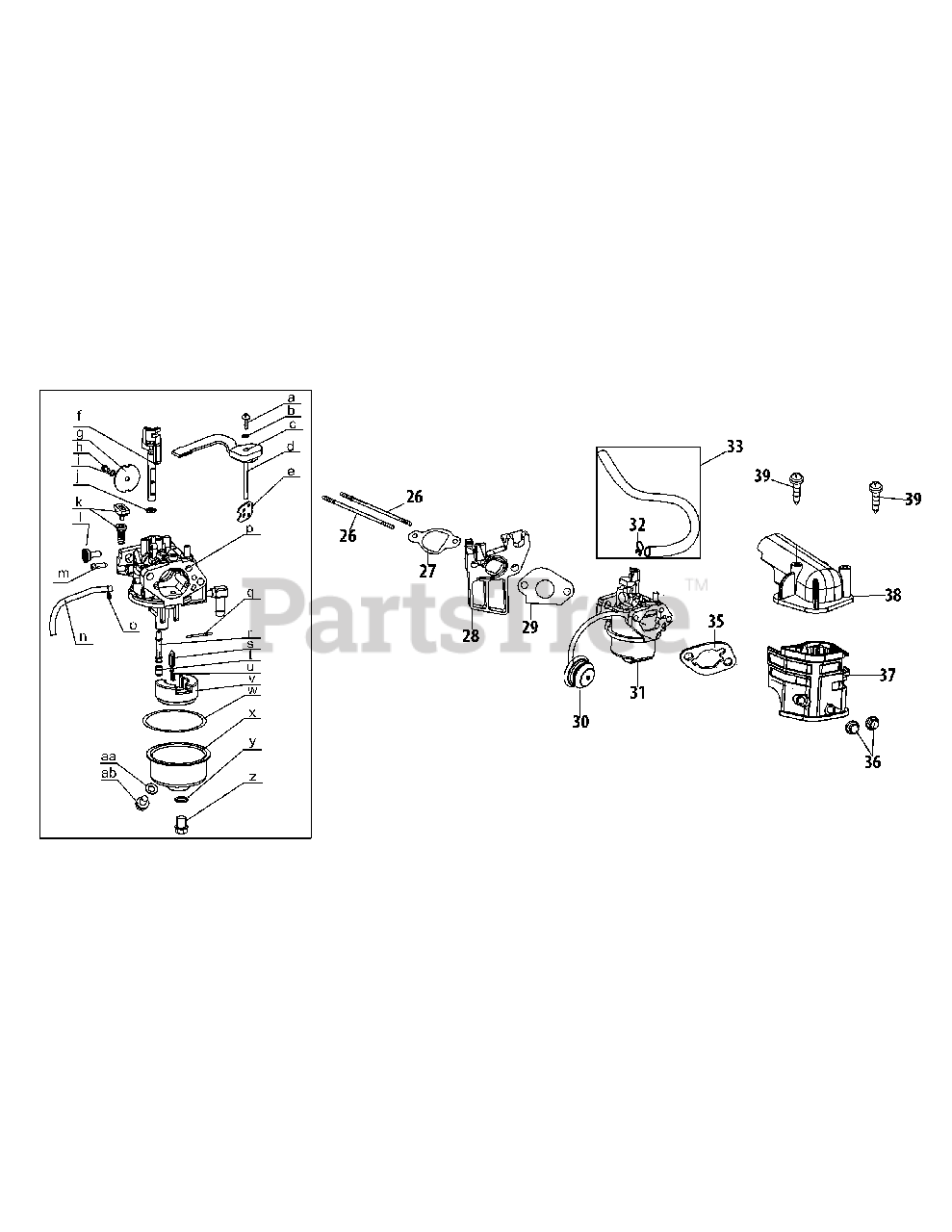

270-JU Carburetor Parts Diagram

  • Title

26

MTD 710-05101

Stud M6×110

$4.49

$

In Stock, only 4 left!

0

27

MTD 951-11567

Carburetor Insulator Gasket
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

28

MTD 951-11568

Carburetor Insulator
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 13

0

29

MTD 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

30

MTD 951-10639A

Primer Assembly

$15.99

$

In Stock, Qty 20+

0

30

MTD 951-11824

Primer Bulb

$11.99

$

In Stock, only 2 left!

0

31

MTD 951-12098

Carburetor Assembly
(Superseded to 951-14028A)

$100.99

$

In Stock, Qty 5

0

32

MTD 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

33

MTD 951-12012

Fuel Line Kit

$29.99

$

In Stock, only 1 left!

0

35

MTD 951-11571

Carburetor Gasket Plate

$5.99

$

In Stock, Qty 20+

0

36

MTD 712-04213

Nut

$6.99

$

In Stock, only 4 left!

0

37

MTD 951-10962

Air Cleaner Housing

$24.99

$

In Stock, only 2 left!

0

38

MTD 951-10961

Air Cleaner Assembly

$16.99

$

In Stock, only 2 left!

0

39

MTD 710-05275

Self-Tapping Bolt M4.2×16

$3.99

$

In Stock, Qty 13

0

a

MTD 710-05369

Screw M3×5

$3.49

$

In Stock, only 1 left!

0

b

MTD 736-04598

Washer

$3.99

$

Usually ships in 3-6 days

0

c

MTD 751-12515

Control Lever,Choke
(Superseded to 951-12811)

$11.99

$

In Stock, only 1 left!

0

d

MTD n/a

Choke Shaft

$

$

Currently unavailable

e

MTD n/a

Choke Plate

$

$

Currently unavailable

f

MTD n/a

Throttle Shaft

$

$

Currently unavailable

g

MTD n/a

Throttle Plate

$

$

Currently unavailable

h

MTD n/a

Screw M3×5

$

$

Currently unavailable

i

MTD n/a

Lock Washer

$

$

Currently unavailable

j

MTD n/a

Idle Jet Assembly

$

$

Currently unavailable

k

MTD n/a

Gasket, Throttle Plate

$

$

Currently unavailable

l

MTD n/a

Idle Speed Adjusting Screw

$

$

Currently unavailable

m

MTD n/a

Mixture Screw

$

$

Currently unavailable

n

MTD 951-12019

Primer Hose
(Superseded to 951-12019A)

$7.49

$

In Stock, only 2 left!

0

o

MTD 951-11906

Hose Clamp

$3.99

$

In Stock, Qty 5

0

p

MTD n/a

Carburetor Body

$

$

Currently unavailable

q

MTD n/a

Float Pin

$

$

Currently unavailable

r

MTD n/a

Emulsion Tube

$

$

Currently unavailable

s

MTD n/a

Needle Valve

$

$

Currently unavailable

t

MTD n/a

Main Jet

$

$

Currently unavailable

u

MTD n/a

Needle Valve Spring

$

$

Currently unavailable

v

MTD n/a

Float

$

$

Currently unavailable

w

MTD 951-11589

Fuel Bowl Gasket
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

x

MTD n/a

Fuel Bowl

$

$

Currently unavailable

y

MTD 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

z

MTD 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0

aa

MTD 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

ab

MTD 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 10

0

MTD 951-11021A

Carburetor Kit - Major
(Superseded to 951-12788A)

Note: Not shown (Incl.aa,j,k,l,q,r,s,t,u,v,w,y)

$54.99

$

In Stock, Qty 7

0
