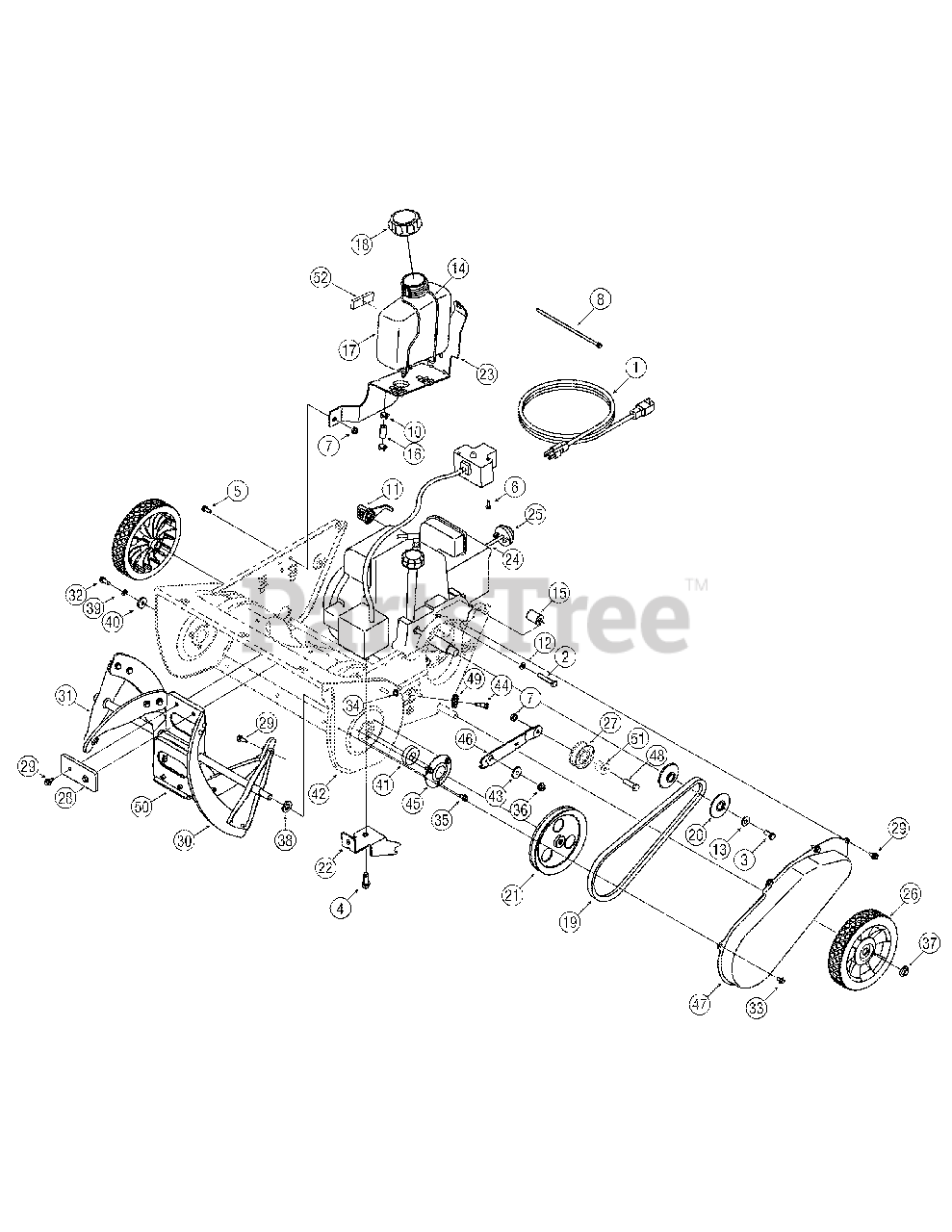

31AS2B5-801 - Yard-Man Snow Thrower (2007) Wheel Assembly Parts Diagram

Snow Thrower

Wheel Assembly Parts Diagram

  • Title

1

MTD 629-0071

Extension Cord 10 Ft.
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

2

MTD 710-0409

Hex Bolt 5/16-24 x 1.75

$4.99

$

Usually ships in 3-6 days

0

3

MTD 710-0627

Hex L-Bolt 5/16-24 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0751

Hex Bolt 1/4-20 x .62 Gr. 5

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-1003

Hex Wash B-Tapp Scr #10 x .62" Lg.
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

7

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

8

MTD 726-0154

Push Mount Tie
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

9

MTD 726-0201

Push Speed Nut

$6.99

$

In Stock, only 2 left!

0

10

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

11

MTD 731-2825

Choke Knob

$17.99

$

Usually ships in 3-6 days

0

12

MTD 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 736-0242

Flat Washer .340 ID x .872 OD x .060

$4.49

$

In Stock, Qty 20+

0

14

MTD 747-04236

Gas Tank Wire Support

$

$

Not available

15

MTD 750-04297B

Spacer .875 x .320 x 1.10

$4.49

$

Usually ships in 3-6 days

0

16

MTD 751-0535

Fuel Line

$

$

Currently unavailable

17

MTD 751-10023

Fuel Tank 2 Quart
(Superseded to 951-10023)

$

$

Not available

18

MTD 751-10278

Cap-Fuel
(Superseded to 751-10487C)

$16.99

$

In Stock, Qty 5

0

19

MTD 754-0101A

V-Belt 1/2 x 35.0" Lg.
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

20

MTD 756-0416B

Pulley Half .625 ID x 2.25 OD
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

21

MTD 756-04232

Pulley 1/2 x 6,0" OD

$60.99

$

In Stock, only 1 left!

0

22

MTD 790-00216

Engine Bracket
(Superseded to 790-00216-0637)

Variations

MTD 790-00216-0637

BRACKET:ENGINE 4 - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 790-00134

Gas Tank Support Bracket
(Superseded to 790-00134-0637)

Variations

MTD 790-00134-0637

BRACKET-FUEL TANK - POWDER BLACK

$

$

Not available

$

$

24

MTD 7511152847

Primer Hose Line
(Superseded to TC-32180C)

$6.99

$

In Stock, only 4 left!

0

25

MTD 7512B1476

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, only 4 left!

0

26

MTD 734-04225

Wheel, 7.0 x 1.5 Lug
(Superseded to 734-04070)

$18.99

$

Usually ships in 3-6 days

0

27

MTD 684-04168

Idler Pulley (1/4" hole)

$38.99

$

In Stock, only 1 left!

0

28

MTD 735-04033

Rubber Paddle

$8.49

$

In Stock, Qty 20+

0

29

MTD 710-0896

Hex B-Tap Scr 1/4-28 x .25" Lg

$4.49

$

In Stock, Qty 20+

0

30

MTD 735-04032

Rubber Spiral-Crescent

$18.99

$

In Stock, Qty 20+

0

31

MTD 684-04025A

Auger Ass’y 21" w/Solid Shaft
(Superseded to 984-04027A)

Variations

MTD 684-04025A-0637

Auger Assembly, 21" Complete - POWDER BLACK (0637)

$196.99

$

In Stock, Qty 10

0

$196.99

$

In Stock, Qty 10

0

32

MTD 710-0642

Thd Forming Scr. 1/4-20 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 710-0653

Hex Wash HD Tapp Scr 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

34

MTD 712-0896

Hex Ins Jam L-Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

35

MTD 710-0352

Hex Tap Scr. 1/4-14 x .375" Lg.

$4.99

$

Usually ships in 3-6 days

0

36

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

37

MTD 726-0299

Push Cap x 1/2" Rod

$8.49

$

In Stock, Qty 20+

0

38

MTD 736-0326

Flat Washer .50 ID x 1.00 OD x .125

$4.49

$

In Stock, only 4 left!

0

39

MTD 736-0329

L-Wash 1/4 ID
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

40

MTD 736-0176

Flat Washer .25 ID x .93 OD x .125

$4.99

$

In Stock, only 4 left!

0

41

MTD 741-04188

Ball Bearing .625 x 37 x 12.63
(Superseded to 741-04188A)

$12.99

$

In Stock, only 2 left!

0

42

MTD 684-04227

Auger Assembly Housing

Variations

MTD 684-04227-0691

HOUSING ASM:AUGER: - BLACK JACK (0691)

$140.99

$

Usually ships in 3-6 days

0

MTD 684-04227-0667

HOUSING ASM:AUGER: - MIDNIGHT BLUE (0667)

$121.99

$

In Stock, only 1 left!

0

MTD 684-04227-0721

HOUSING ASM:AUGER: - SEARS RED (0721)

$161.99

$

Usually ships in 3-6 days

0

MTD 684-04227-4044

HOUSING ASM:AUGER: - CRAFTSMAN RED (4044)

$161.99

$

Usually ships in 3-6 days

0

MTD 684-04227-0606

HOUSING ASM:AUGER: - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 684-04227-0638

HOUSING ASM:AUGER: - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04227-0665

HOUSING ASM:AUGER: - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-04227-0684

HOUSING ASM:AUGER: - ZINC YELLOW (0684)

$

$

Not available

MTD 684-04227-0709

HOUSING ASM:AUGER: - MASTERCRAFT GREEN (0709)

$

$

Not available

$140.99

$

Usually ships in 3-6 days

0

43

MTD 748-0234

Shoulder Spacer .25 THK

$4.49

$

In Stock, Qty 20+

0

44

MTD 738-0924A

Hex Shld.Scr.1/4-28 x .375

$6.99

$

In Stock, Qty 5

0

45

MTD 790-00249

Bearing Cup
(Superseded to 790-00249-0637)

Variations

MTD 790-00249-0637

Bearing Cup, Single - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

46

MTD 790-00283

Idler Bracket
(Superseded to 790-00283-0637)

Variations

MTD 790-00283-0637

BRACKET:IDLER SINGLE - POWDER BLACK (0637)

$

$

Not available

$

$

47

MTD 790-00045A

Belt Cover
(Superseded to 790-00045C)

Variations

MTD 790-00045A-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

MTD 790-00045A-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

MTD 790-00045A-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 790-00045A-0662

COVER-BELT SINGLE - OYSTER GRAY (0662)

$

$

Not available

MTD 790-00045A-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 790-00045A-0684

COVER-BELT SINGLE - ZINC YELLOW (0684)

$

$

Not available

MTD 790-00045A-0709

COVER-BELT SINGLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$46.99

$

Usually ships in 3-6 days

0

48

MTD 710-0106

Hex Screw 1/4-20 x 1.25 Gr. 5 Special

$3.99

$

In Stock, Qty 12

0

49

MTD 756-0625

Cable Guide Roller

$9.49

$

In Stock, Qty 14

0

50

MTD 684-04228

Auger Assembly
(Superseded to 984-04253-0637)

$160.99

$

In Stock, only 1 left!

0

51

MTD 750-04571

Shld. Spacer .260 x .785 x .538

$6.99

$

In Stock, only 3 left!

0

52

MTD 722-3022

Tape
(Superseded to 722-3022A-12)

$18.99

$

Usually ships in 3-6 days

0
