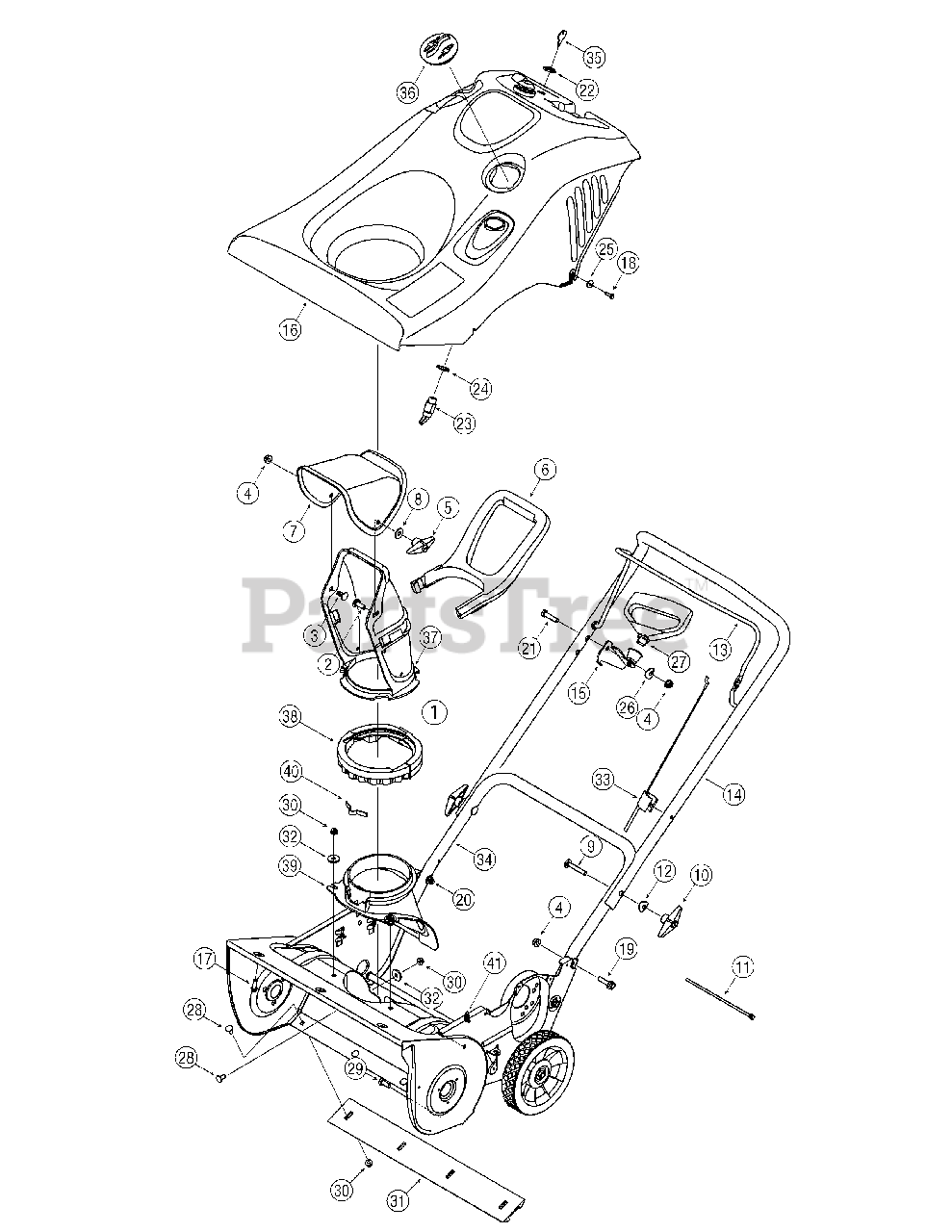

31AS2B5-801 - Yard-Man Snow Thrower (2005-2) General Assembly Parts Diagram

Snow Thrower

General Assembly Parts Diagram

  • Title
1

MTD 684-04127

Lower Chute Ass’y (Incl. #37-40)
(Superseded to 984-04127)

$65.99

$

Usually ships in 3-6 days

0

2

MTD 710-04071

Carriage Screw 5/16-18 x 1.0

$4.49

$

In Stock, Qty 10

0

3

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

5

MTD 720-0284

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

6

MTD 731-04388A

Chute Handle

$26.99

$

Usually ships in 3-6 days

0

7

MTD 731-04985

Upper Chute

$

$

Not available

8

MTD 736-0159

Flat Washer .349 ID x .879 OD x .063

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0487

Carriage Bolt 5/16-18 x 2.0

$7.49

$

Usually ships in 3-6 days

0

10

MTD 720-0284

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

11

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

12

MTD 736-0451

Saddle Wash. .320 ID x .937 OD

$4.49

$

In Stock, Qty 11

0

13

MTD 747-04159

Bail-Gull Wing
(Superseded to 747-04159A-0637)

Variations

MTD 747-04159-0637

Gull Wing Auger Bail - POWDER BLACK (0637)

$36.99

$

In Stock, Qty 8

0

MTD 747-04159-0638

Gull Wing Auger Bail - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, Qty 8

0

$36.99

$

In Stock, Qty 8

0

14

MTD 749-04106

Upper Handle-Gull Wing
(Superseded to 749-04106A)

Variations

MTD 749-04106-0637

Upper Handle - POWDER BLACK (0637)

$51.99

$

Usually ships in 3-6 days

0

MTD 749-04106-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$51.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

15

MTD 684-0178

Mitten Grip Bracket Ass’y
(Superseded to 984-0178)

$

$

Not available

16

MTD 684-04031

Shroud Yellow, Elec. Start, w/o Crk
(Superseded to 984-04031)

$

$

Not available

17

MTD 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.49

$

In Stock, Qty 10

0

18

MTD 710-1003

Hex Wash B-Tapp Scr #10 x .62" Lg.
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

19

MTD 710-1090

Hex Scr. .312-18 x 1.250

$3.99

$

Usually ships in 3-6 days

0

20

MTD 710-1882

Hex Scr. 5/16-18 x 1.50 Gr. 5

$4.49

$

Usually ships in 3-6 days

0

21

MTD 710-3083

Hex Scr. 5/16-18 x 1.375 Gr. 5

$4.49

$

Usually ships in 3-6 days

0

22

MTD 712-0252

Hex Nut 5/8-32 x .12 Special

$5.99

$

Usually ships in 3-6 days

0

23

MTD 725-2018

Key Switch-Electric Start
(Superseded to 925-2018)

$

$

Not available

24

MTD 736-0225

L-Washer Internal

$4.49

$

In Stock, only 2 left!

0

25

MTD 736-0400

Flat Washer .218" ID x .62" OD

$5.49

$

In Stock, Qty 11

0

26

MTD 736-0451

Saddle Wash. .320 ID x .937 OD

$4.49

$

In Stock, Qty 11

0

27

MTD 7510009636

Recoil Handle, Mitten

$

$

Not available

28

MTD 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

30

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

31

MTD 731-1033

Shave Plate

$47.99

$

In Stock, Qty 13

0

32

MTD 736-0176

Flat Washer .25 ID x .93 OD x .125

$4.99

$

In Stock, only 4 left!

0

33

MTD 746-04237

Control Cable
(Superseded to 946-04237)

$24.99

$

Usually ships in 3-6 days

0

34

MTD 749-04114

Lower Handle
(Superseded to 749-04114B)

Variations

MTD 749-04114-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04114-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

35

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

36

MTD 684-0190

Spark Plug Cover
(Superseded to 684-0189)

$

$

Not available

37

MTD 731-04127

Lower Chute 5" Dia
(Superseded to 931-04127)

$33.99

$

Usually ships in 3-6 days

0

38

MTD 731-04353

Ring-Lower Chute
(Superseded to 931-04353)

$18.99

$

In Stock, only 4 left!

0

39

MTD 731-04886

Chute Adapter 5" Dia
(Superseded to 931-04886)

$20.99

$

Usually ships in 3-6 days

0

40

MTD 732-04111

Chute Adjustment Spring
(Superseded to 932-04111)

$4.99

$

In Stock, Qty 20+

0

41

MTD 732-0357A

Extension Spring .33 OD x 1.12 Lg.

$4.49

$

In Stock, Qty 13

0
